SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-20300iAT200,ST204199309

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-20130iAT200,ST204199309

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-20070iAT200,ST204199309-199808

main51206-20090iST204..USA199712-199808

CALIFORNIA SPEC

main51206-20090iST204199808

51223ACOVER, ENGINE MOUNTING HOLE

main51223-20030iAT200,ST204199309

51223BCOVER, ENGINE MOUNTING HOLE

main51223-20050iAT200,ST204199309

51292BBRACKET, FRAME CROSSMEMBER, REAR

main51292-20020iST204199309

51441COVER, ENGINE UNDER, NO.1

main51441-20360iAT200,ST204199309-199605

sub51441-20400

main51441-20400iAT200,ST204199605

51442COVER, ENGINE UNDER, NO.2

main51442-20460iAT200,ST204..MTM199309

main51442-20470iAT200,ST204..ATM199309

51443BCOVER, ENGINE UNDER, NO.3

main51443-20090iAT200;ST204..MTM199309

TYPE A:REFER TO ILLUSTRATION

main51443-20100iST204..ATM199309

TYPE B:REFER TO ILLUSTRATION

51448ACOVER, ENGINE SIDE UNDER, RH

main51448-20030iAT200,ST204199309-199605

9010912061

main90109-12061

9010912063

main90109-12063

9011906355

main90119-06355

9011906451

main90119-06451

9011908499

main90119-08499

9011908781

main90119-08781

9011908963

main90119-08963

9011910581

main90119-10581

9011912125

main90119-12125

9011914050

main90119-14050

9015960323

main90159-60323

9017912045

main90179-12045

9018906065

main90189-06065

9018906198

main90189-06198

9095001392

main90950-01392

9095001398

main90950-01398

9095001518

main90950-01518

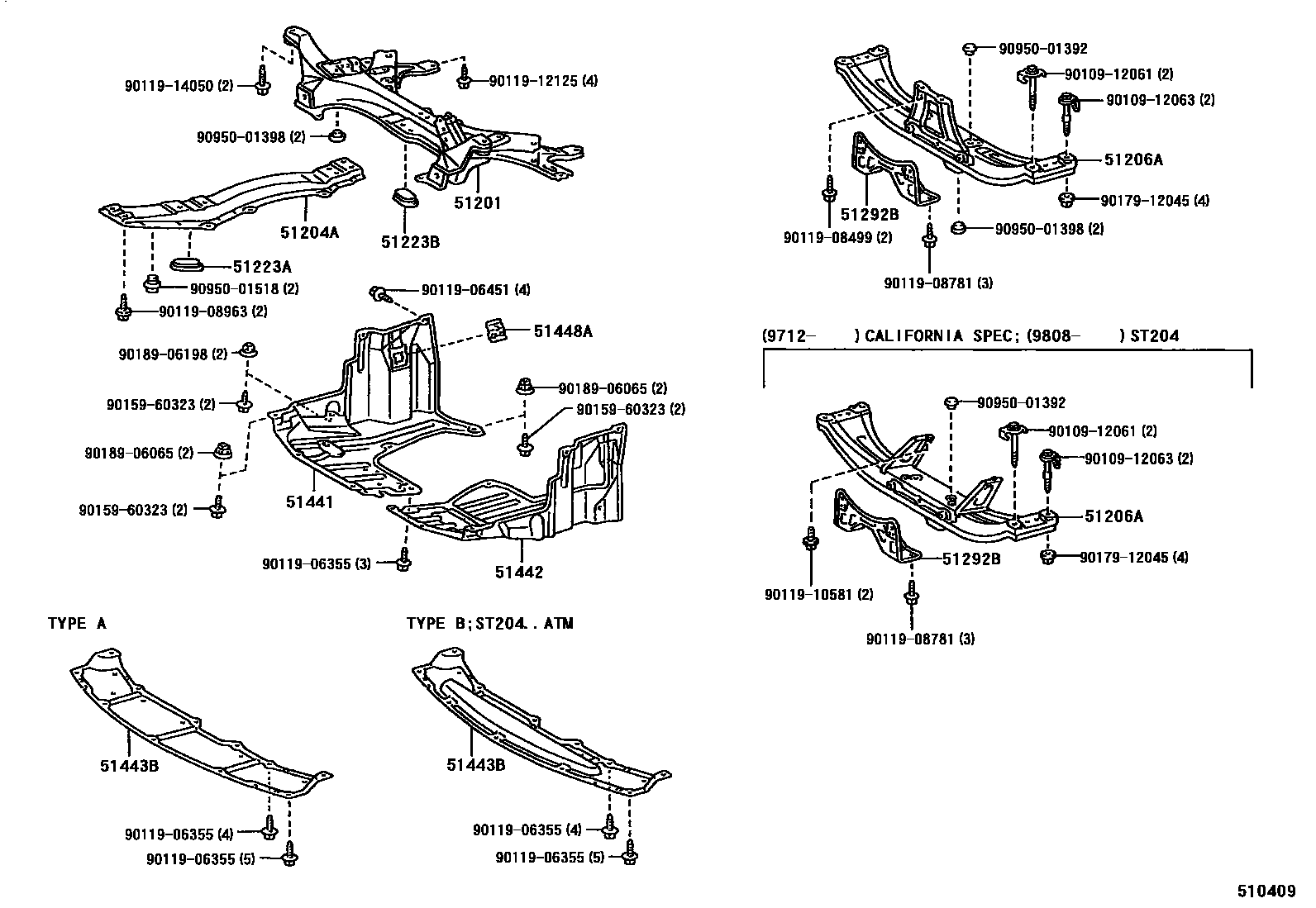

27 parts on this diagram · 1 diagram in section
