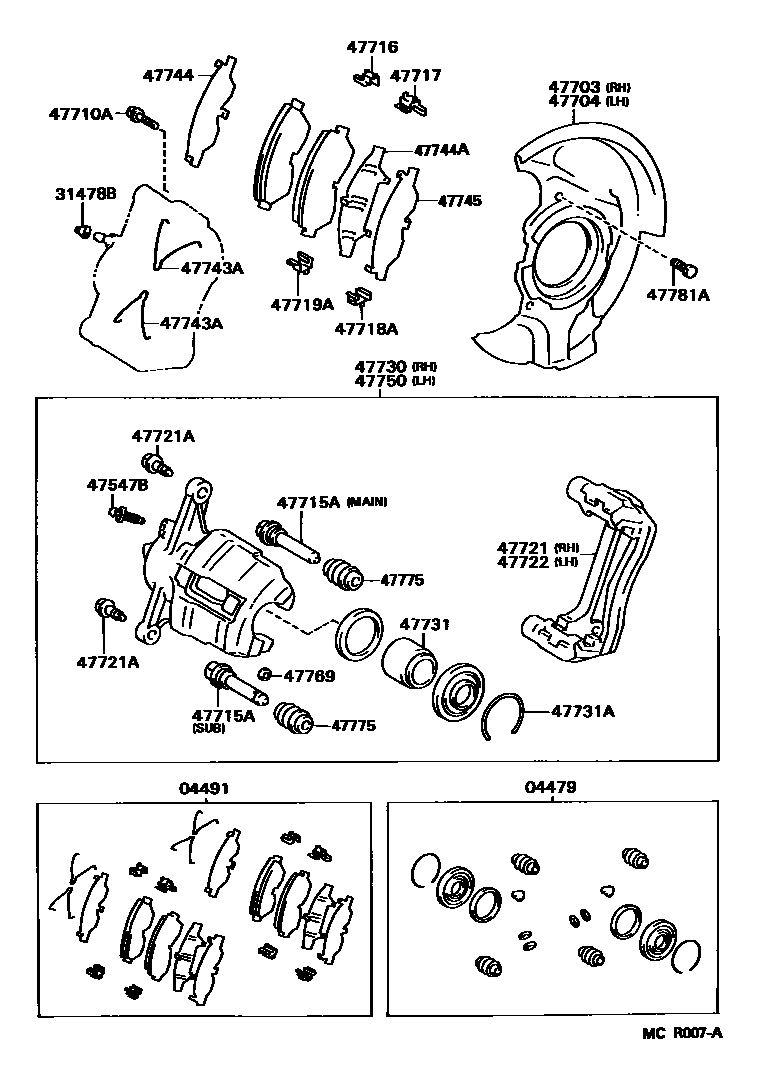

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-20170iAT200199309-199712

main04479-33010iST204199309

04491PAD KIT, DISC BRAKE, FRONT

main04491-2B050iAT200199309-199505

sub04465-20140

main04491-33100iST204199309-199505

sub04465-33060

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iAT200,ST204199309

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iAT200,ST204199309

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47781-20320iST204199309

main47781-20330iAT200199309-199712

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47782-20320iST204199309

main47782-20330iAT200199309-199712

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12131iAT200,ST204199309

*12-1.25PX25.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-50010iAT200,ST204199309

SUB PIN SIDE

main47715-50030iAT200,ST204199309

MAIN PIN SIDE

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-20180iST204199704

main47716-33010iAT200199309-199608

main47716-33031iST204199309-199704

main47716-33050iAT200199608-199712

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47716-20190iST204199704

main47716-33020iAT200199309-199608

main47716-33041iST204199309-199704

main47716-33060iAT200199608-199712

47718APLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)

main47717-20080iST204199704

main47717-20150iAT200199608-199712

main47717-33010iAT200199309-199608

main47717-33031iST204199309-199704

47719APLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)

main47717-20090iST204199704

main47717-20160iAT200199608-199712

main47717-33020iAT200199309-199608

main47717-33041iST204199309-199704

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-20370iAT200199309-199608

main47721-20371iAT200199608-199712

main47721-20420iST204199309

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164iAT200,ST204199309

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-20080iAT200199309-199608

main47722-20081iAT200199608-199712

main47722-20120iST204199309

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-20480iAT200199309-199608

main47730-20481iAT200199608-199712

main47730-20520iST204199309

47731PISTON, FRONT DISC BRAKE

main47731-20190iAT200199309-199712

main47731-33010iST204199309

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-66001iAT200,ST204199309

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-50010iAT200199309-199712

main47743-50030iST204199309

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-20120iAT200199309-199504

main47744-32090iAT200199504-199508

main47745-33020iST204199309-199908

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47744-33010iAT200199309-199508

main47744-33020iST204199309-199908

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-33010iAT200199309-199508

main47745-33020iST204199309-199908

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-20480iAT200199309-199608

main47750-20481iAT200199608-199712

main47750-20520iST204199309

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iAT200,ST204199309

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-20080iAT200199309-199712

sub47775-30070

main47775-50010iST204199309

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90109-06134iAT200,ST204199506

main90109-06192iAT200,ST204199309-199506

sub90109-06134

26 parts on this diagram · 3 diagrams in section
