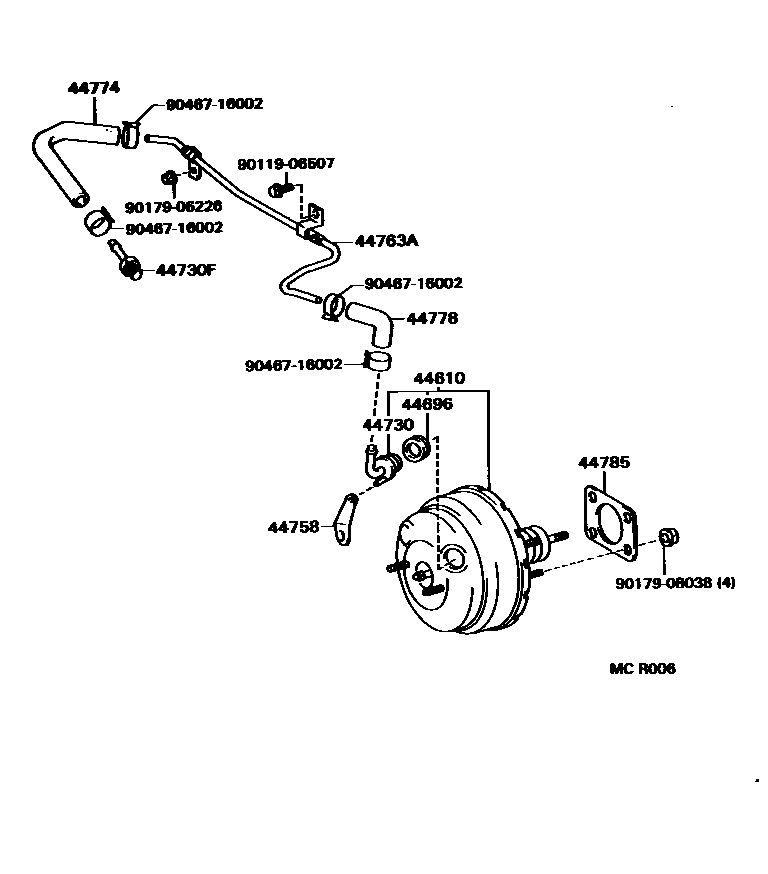

BRAKE BOOSTER & VACUUM TUBE

44610BOOSTER ASSY, BRAKE

main44610-2D140iAT200,ST204199408

main44610-2D460iAT200,ST204199408

W(ABS)

main44610-2D590iAT200,ST204199309-199408

sub44610-2D140

main44610-2D670iAT200,ST204199309-199408

W(ABS)

sub44610-2D460

44696GROMMET, CHECK VALVE

main90480-24015iAT200,ST204199309

main90480-24439iAT200,ST204199309

W(ABS)

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-14050iAT200,ST204199309

W(ABS)

main44730-28010iAT200,ST204199309

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90404-51319iAT200,ST204199309

44758BRACKET, VACUUM CHECK VALVE

main44758-14150iAT200,ST204199309

44763ATUBE, HOSE TO HOSE, NO.1

main44763-20190iAT200,ST204199309

44774HOSE, UNION TO CONNECTOR TUBE

main44774-20240iAT200,ST204199309

44778HOSE, CONNECTOR TO CHECK VALVE

main44778-20090iAT200,ST204199309

44785GASKET, BRAKE BOOSTER

main44785-20020iAT200,ST204199309

9011906507

main90119-06507

9017906226

main90179-06226

9017908038

main90179-08038

9046716002

main90467-16002

13 parts on this diagram · 1 diagram in section
