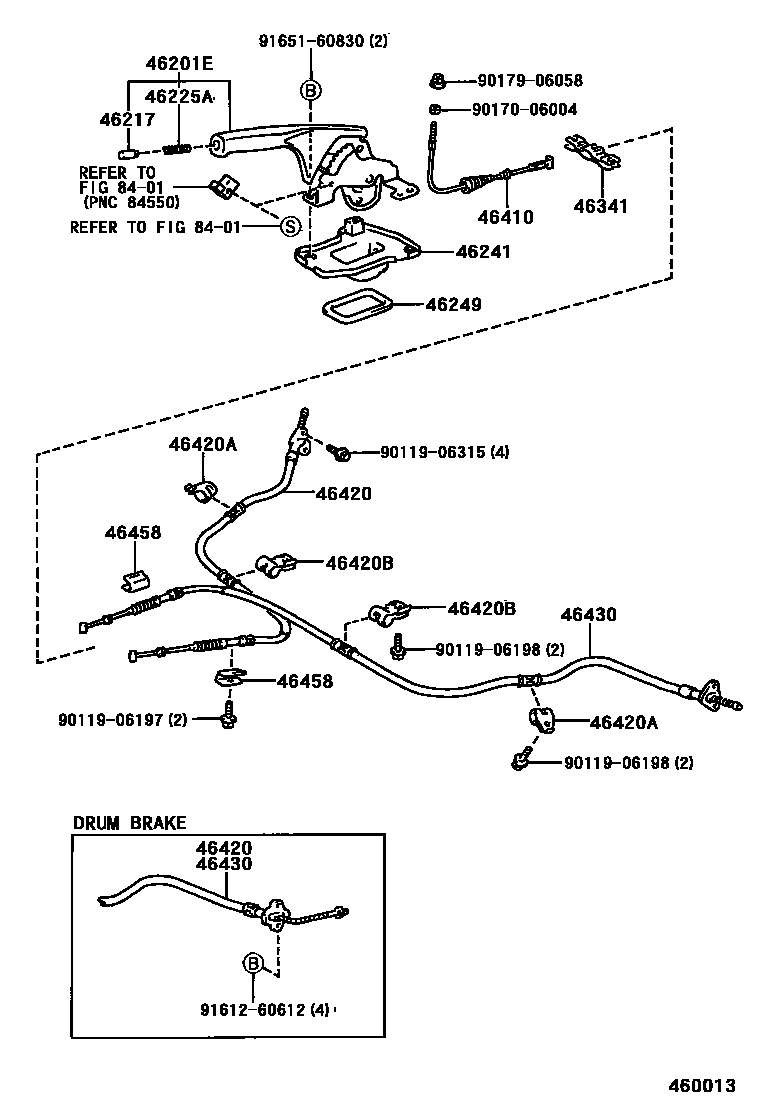

PARKING BRAKE & CABLE

0001 1 0002 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-20320-C0iAT200,ST204..CP,LB199309

BLACK,TRIM0#,2#

main46201-20320-C0iST204..CVT199408

BLACK,TRIM2#

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-20040-C0iAT200,ST204..CP,LB199309

BLACK,TRIM0#,2#

sub46217-20040

main46217-20040-C0iST204..CVT199408

BLACK,TRIM2#

sub46217-20040

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10069iAT200,ST204199309

46241BOOT, PARKING BRAKE LEVER

main46241-20150iAT200,ST204199309

46249SHIELD, PARKING BRAKE HOLE

main46249-20070iAT200,ST204199309

46341EQUALIZER, PARKING BRAKE

main46341-24010iAT200,ST204199309

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-20420iAT200,ST204199309

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-20410iAT200199309-199712

main46420-20440iST204199309

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01746iAT200,ST204199309

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main90949-01552iAT200,ST204199309

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-20490iAT200199309-199712

main46430-20520iST204199309

46458RETAINER, CABLE

main46458-28010iAT200,ST204199309

8401

9011906197

main90119-06197

9011906198

main90119-06198

9011906315

main90119-06315

9017006004

main90170-06004

9017906058

main90179-06058

9161260612

main91612-60612

9165160830

main91651-60830

20 parts on this diagram · 2 diagrams in section
