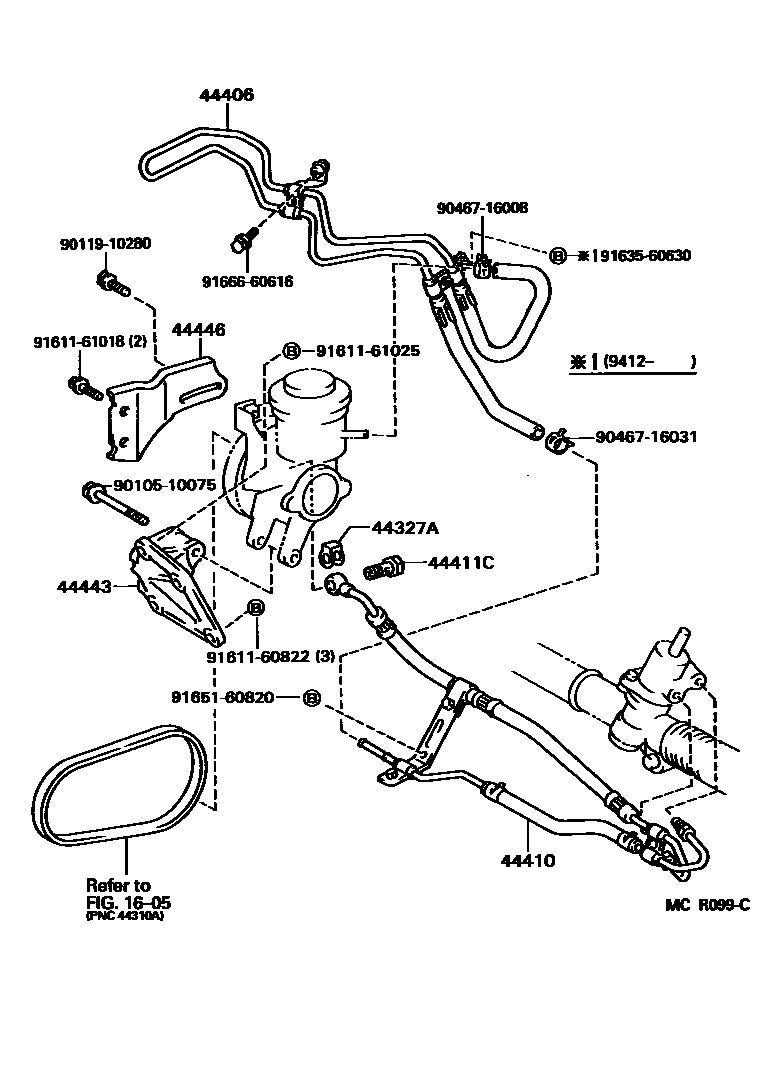

POWER STEERING TUBE

0001 1 0002 1

1605

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iAT200,ST204¥160199309

44406TUBE SUB-ASSY, RETURN

main44406-20620iAT200¥9,800199309-199412

sub44406-20621¥9,800

sub91635-60630¥80

main44406-20621iAT200¥9,800199412-199712

main44406-20630iST204¥8,800199309

44410TUBE ASSY, PRESSURE FEED

main44410-2B020iAT200¥21,600199309-199712

main44410-2B030iST204¥23,000199309

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16013iAT200,ST204¥510199309-199310

main96341-41603iAT200,ST204¥310199310

44443BRACKET, PUMP

main44443-12050iAT200¥8,500199309-199712

main44443-20050iST204¥5,300199309

44446STRUT, ADJUSTING

main44446-12090iAT200¥1,120199309-199712

9010510075

main90105-10075¥180

9011910280

main90119-10280¥360

9046716008

main90467-16008¥240

9046716031

main90467-16031¥130

9161160822

main91611-60822¥170

9161161018

main91611-61018¥130

9161161025

main91611-61025¥240

9163560630

main91635-60630¥80

9165160820

main91651-60820¥130

9166660616

main91666-60616¥120

17 parts on this diagram · 2 diagrams in section
