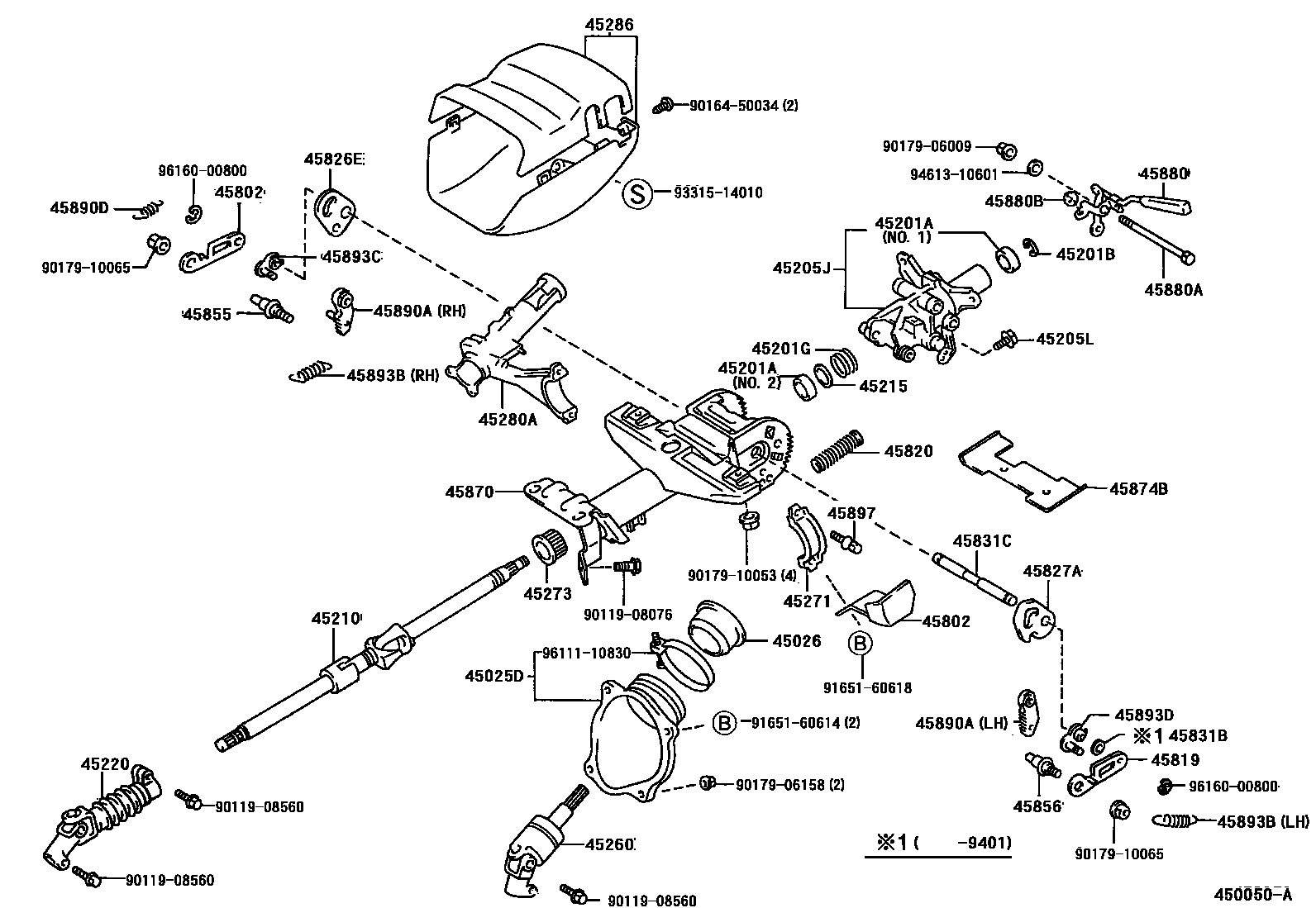

STEERING COLUMN & SHAFT

0001 1W(TILT STEERING) 0002 1W(RIGID STEERING)

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-20460iAT200,ST204199309

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45026-20110iAT200,ST204199309-199508

main45026-20111iAT200,ST204..CP,LB199508-199510

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18005iST204..ST199712

main90363-18012iST204..CVT199508-199510

NO.2

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iAT200,ST204199309

T=1.20

45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

main90501-40017iAT200,ST204199309

45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER

main45205-20330iAT200,ST204199309

45205LSCREW(FOR STEERING COLUMN TUBE)

main90159-60429iAT200,ST204199309-199806

main91633-60625iST204199806

sub91631-60622

45210SHAFT ASSY, STEERING MAIN

main45210-20310iAT200,ST204199309-199712

W(TILT STEERING)

main45210-20311iST204199712

W(TILT STEERING)

main45210-20320iAT200..USA199309-199712

main45210-20321iST204..ST199712

45215COLLAR, MAIN SHAFT BEARING THRUST

main45215-12010iAT200,ST204199309

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-20140iAT200,ST204199309

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-20350iAT200,ST204199309

45271CLAMP, STEERING COLUMN, UPPER

main45271-12060iST204..ST199712

main45271-12080iAT200,ST204..CND199311

45273BUSH, STEERING MAIN SHAFT

main45273-20020iAT200,ST204199309-199409

main45273-20021iAT200,ST204199409

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-20620iAT200,ST204199309

45286COVER, STEERING COLUMN

main45287-20923-C0iST204..CVT199408-199510

BLACK,TRIM2#

main45287-20924-C0iAT200..USA199309-199508

BLACK,TRIM0#,2#

main45287-20926-C0iST204..CVT199510

BLACK,TRIM2#

main45287-20927-C0iAT200,ST204..ST..USA199508

BLACK,TRIM0#,2#

45802PROTECTOR SUB-ASSY, STEERING COLUMN, NO.1

main45874-12060iAT200,ST204..CND199311

45819RETAINER, TILT LEVER

main45819-22060×2iAT200,ST204199309

45820SPRING ASSY, TILT STEERING SUPPORT

main45820-12020iAT200,ST204..CND199311

main45820-32020iAT200;ST204..GT199309

W(SRS AIRBAG)

45826ELEVER, STEERING TILT(FOR TILT ADJUST)

main45826-22050iAT200,ST204199309

45827ALEVER, STEERING TILT SUB

main45827-22030iAT200,ST204199309

45831BSPACER(FOR TILT LEVER LOCK SHAFT)

main90560-10062iAT200,ST204199309-199401

45831CSHAFT, TILT LEVER LOCK

main45831-20030iAT200,ST204199309-199401

main45831-22020iAT200,ST204199401

45855BOLT, TILT STEERING, NO.1

main45856-22010iAT200,ST204199309

OD=9.989-9.998

45856BOLT, TILT STEERING, NO.2

main45856-22010iAT200,ST204199309

OD=9.989-9.998

45870TUBE ASSY, STEERING COLUMN

main45870-20490iAT200,ST204..CND199311

main45870-20510iAT200,ST204199309

W(*80 OR TILT STEERING)

main45870-20520iAT200,ST204..ST..USA199309

45874BPROTECTOR, STEERING COLUMN, NO.1

main45874-20040iAT200,ST204199309

45880LEVER ASSY, STEERING TILT

main45880-20020iAT200,ST204199309

45880ABOLT(FOR STEERING TILT LEVER)

main90109-06162iAT200,ST204199309

45880BSCREW(FOR STEERING TILT LEVER)

main93382-15014iAT200,ST204199311-199706

sub93383-55014

main93383-15014iAT200,ST204199706

45890APAWL ASSY, TILT STEERING

main45890-20110iAT200,ST204199309

RH

main45890-22090iAT200,ST204199309

LH

45890DSPRING, TENSION(FOR TILT STEERING PAWL ASSY)

main90507-07003iAT200,ST204199309

45893BSPRING, TENSION(FOR TILT STEERING PAWL STOPPER)

main90507-08010iAT200,ST204199309

LH

main90507-10019iAT200,ST204199309

RH

45893CSTOPPER, STEERING PAWL, RH

main45893-24010iAT200,ST204199309

MARK 1

main45893-24020iAT200,ST204199309

MARK 2

main45893-24030iAT200,ST204199309

MARK 3

main45893-24040iAT200,ST204199309

MARK 4

main45893-24050iAT200,ST204199309

MARK 5

main45893-24060iAT200,ST204199309

MARK 6

main45893-24070iAT200,ST204199309

MARK 7

45893DSTOPPER, STEERING PAWL, LH

main45893-20260iAT200,ST204199309

MARK A

main45893-20270iAT200,ST204199309

MARK B

main45893-20280iAT200,ST204199309

MARK C

main45893-20290iAT200,ST204199309

MARK D

main45893-20300iAT200,ST204199309

MARK E

main45893-20310iAT200,ST204199309

MARK F

main45893-20320iAT200,ST204199309

MARK G

45897BOLT, STEERING LOCK SET

main45897-12020×2iAT200,ST204199309

9011908076

main90119-08076

9011908560

main90119-08560

9016450034

main90164-50034

9017906009

main90179-06009

9017906158

main90179-06158

9017910053

main90179-10053

9017910065

main90179-10065

9165160614

main91651-60614

9165160618

main91651-60618

9331514010

main93315-14010

9461310601

main94613-10601

9611110830

main96111-10830

9616000800

main96160-00800

48 parts on this diagram · 2 diagrams in section
