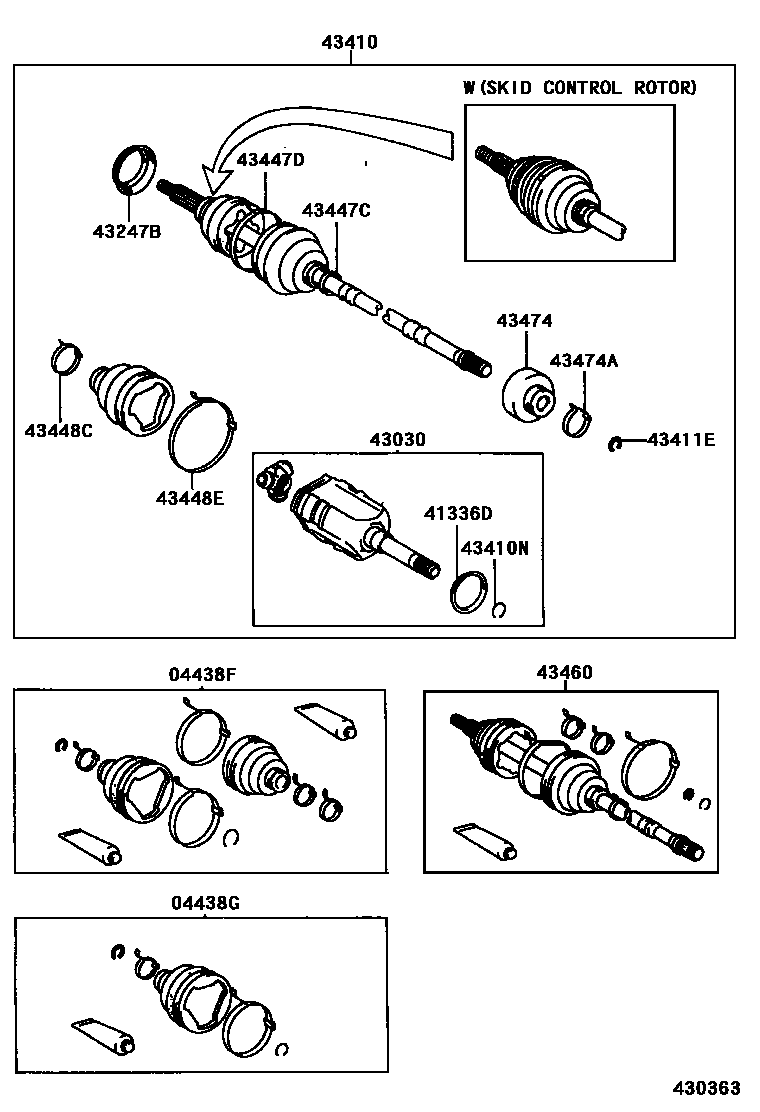

FRONT DRIVE SHAFT
04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
41336DCOVER, FRONT DRIVE SHAFT DUST, RH
43030JOINT ASSY, FRONT DRIVE INBOARD, RH
43247BDEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2
W(ABS)
43410SHAFT ASSY, FRONT DRIVE, RH
W(ABS)
43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
ID=35.75
ID=35.45
ID=92.2
ID=33.74
ID=96.5
ID=31.1
43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
ID=91.9
ID=90.6
43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
ID=32.7
ID=92.2
ID=33.74
ID=99.9
43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
W(ABS)
43474DAMPER, DRIVE SHAFT
43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)
15 parts on this diagram · 5 diagrams in section
