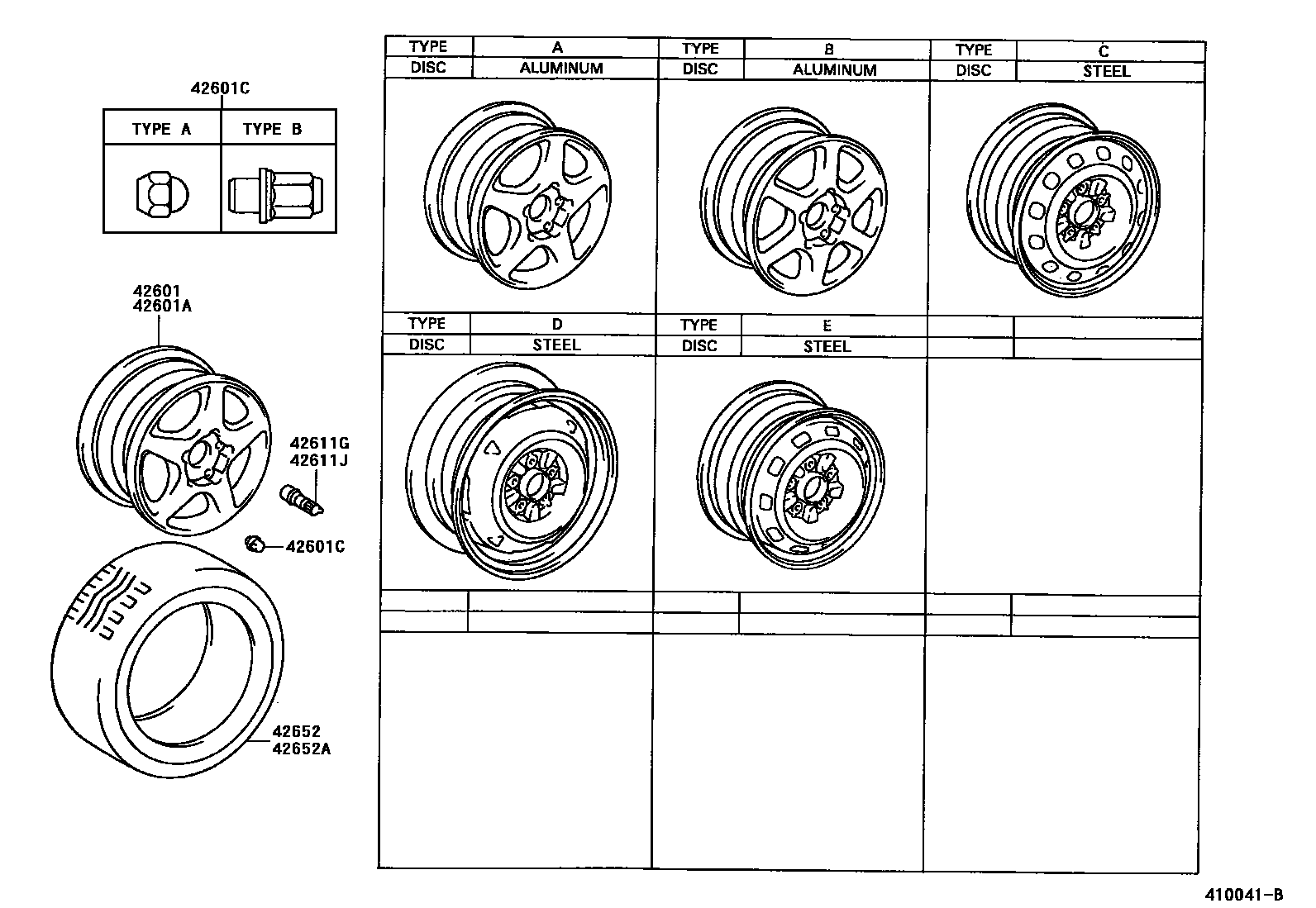

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-20880-01iAT200199309-199712

14X6JJ,TYPE E:REFER TO ILLUSTRATION,BLACK

sub42611-20880

main42611-2B060iST204199309-199510

15X7JJ TMH,TYPE A:REFER TO ILLUSTRATION

main42611-2B100iAT200..CND199309-199508

14X6JJ NO MARK,TYPE B:REFER TO ILLUSTRATION

sub42611-2B190

main42611-2B110iST204199309

15X6.5JJ,TYPE C:REFER TO ILLUSTRATION

main42611-2B130iAT200,ST204..CP,LB199508-199510

15X7JJ TMH,TYPE A:REFER TO ILLUSTRATION

42601AWHEEL, DISC (FOR SPARE)

main42611-20800iAT200,ST204..USA199309

16X4T,SPARE,TYPE D:REFER TO ILLUSTRATION

sub42611-20840

main42611-20880-01iAT200..CND199309-199606

14X6JJ,TYPE E:REFER TO ILLUSTRATION,BLACK

sub42611-20880

main42611-2B110iST204..CND199309-199508

15X6.5JJ,TYPE C:REFER TO ILLUSTRATION

42601CNUT, HUB (FOR AXLE)

main90942-01021iAT200,ST204199309

TYPE A:REFER TO ILLUSTRATION

main90942-01058iST204;AT200..CND199309-199508

TYPE B:REFER TO ILLUSTRATION

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iAT200,ST204199309

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iAT200,ST204199309

42652TIRE

main42652-2B360iAT200199309-199712

185/70R14

main42652-2B430iST204199309-199508

205/55R15

42652ATIRE (FOR SPARE)

main42652-20760iAT200,ST204..USA199309-199510

T135/70D16

sub42652-24050

main42652-2B360iAT200..CND199309-199606

185/70R14

main42652-2B430iST204..CND199309-199508

205/55R15

main42652-2B440iAT200,ST204..USA199608

T125/70D16,*B/S

7 parts on this diagram · 3 diagrams in section
