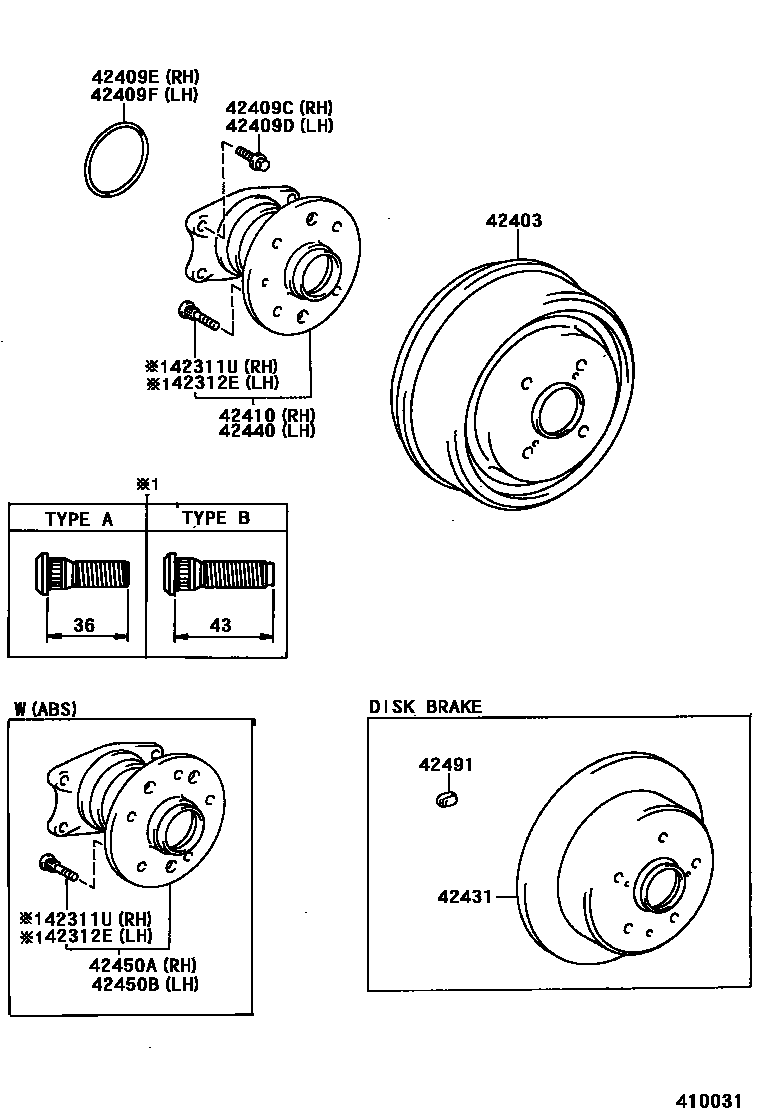

REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02047iAT200,ST204199311

TYPE A:REFER TO ILLUSTRATION

main90942-02070iAT200,ST204199309-199311

sub90942-02049

main90942-02070iAT200,ST204199311

TYPE B:REFER TO ILLUSTRATION

sub90942-02049

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02047iAT200,ST204199311

TYPE A:REFER TO ILLUSTRATION

main90942-02070iAT200,ST204199311

TYPE B:REFER TO ILLUSTRATION

sub90942-02049

main90942-02070iAT200,ST204199309-199311

sub90942-02049

42403DRUM SUB-ASSY, REAR BRAKE

main42431-20190iAT200199309-199712

42409CBOLT (FOR REAR AXLE BEARING RH)

main90105-10124iAT200,ST204199309

42409DBOLT (FOR REAR AXLE BEARING LH)

main90105-10124iAT200,ST204199309

42409ERING, O (FOR REAR AXLE BEARING RH)

main90301-63003iAT200,ST204199309

sub90301-63006

42409FRING, O (FOR REAR AXLE BEARING LH)

main90301-63003iAT200,ST204199309

sub90301-63006

42410HUB & BEARING ASSY, REAR AXLE, RH

main42410-20150iAT200,ST204199309

42431DISC, REAR

main42431-20320iST204199309-199510

main42431-20360iST204..CP,LB199508-199510

42440HUB & BEARING ASSY, REAR AXLE, LH

main42410-20150iAT200,ST204199309

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-20050iAT200,ST204199309-199508

sub42450-20051

main42450-20051iAT200,ST204199508

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-20050iAT200,ST204199309-199508

sub42450-20051

main42450-20051iAT200,ST204199508

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020iST204199309

13 parts on this diagram · 1 diagram in section
