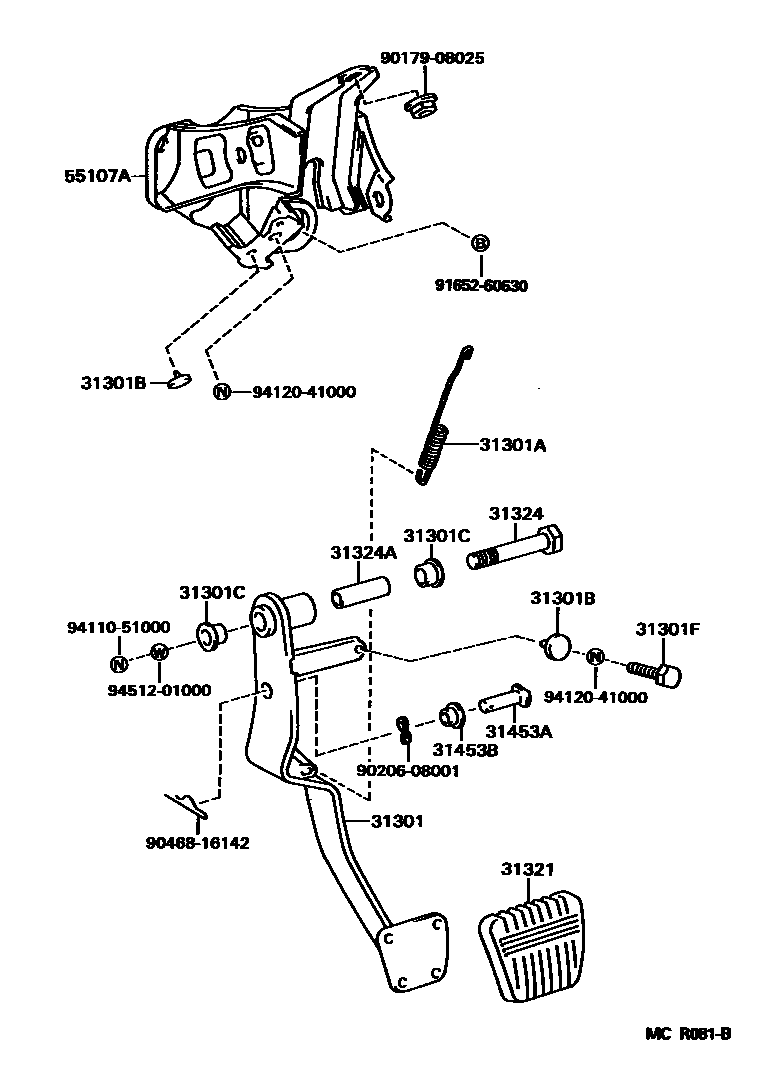

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-20550iST204..MTM199309

main31301-20560iAT200..MTM199309-199712

sub31301-20550

31301ASPRING(FOR CLUTCH PEDAL)

main90506-12070iAT200..MTM199309-199712

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iAT200,ST204..MTM199309

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iAT200,ST204..MTM199309

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iAT200,ST204..MTM199309

31321PAD, CLUTCH PEDAL

main31321-14020iAT200,ST204..MTM199309

31324SHAFT, CLUTCH PEDAL

main90101-10015iAT200,ST204..MTM199309

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iAT200,ST204..MTM199309

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08143iAT200,ST204..MTM199309

L=30

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iAT200,ST204..MTM199309

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-20410iST204..MTM199309

main55107-20430iAT200..MTM199309-199712

9017908025

main90179-08025

9020608001

main90206-08001

9046816142

main90468-16142

9165260630

main91652-60630

9411051000

main94110-51000

9412041000

main94120-41000

9451201000

main94512-01000

18 parts on this diagram · 3 diagrams in section
