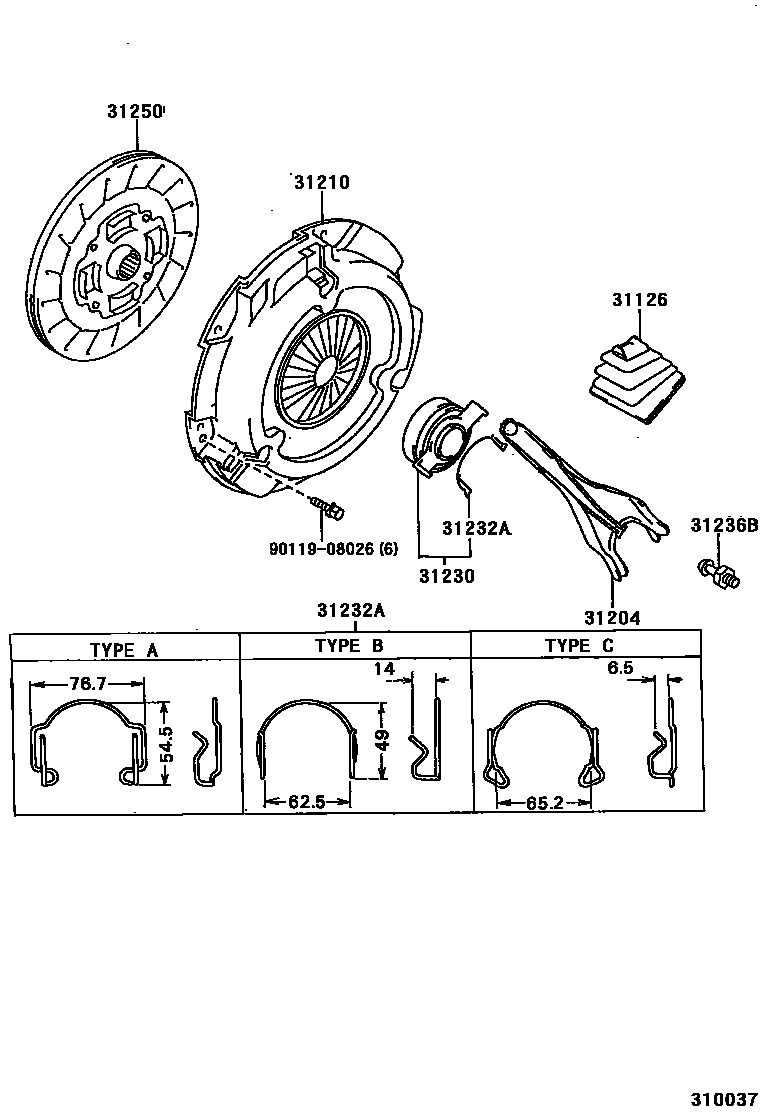

CLUTCH & RELEASE FORK

0001 1C52 0002 1S54

31126BOOT, CLUTCH RELEASE FORK

main31126-12051iAT200..MTM199309-199712

main31126-32010iST204..MTM199309-199905

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-17010iAT200..MTM199309-199712

main31204-20100iST204..MTM199309-199905

31210COVER ASSY, CLUTCH

main31210-12151iAT200..MTM199309-199503

sub31210-12152

main31210-12152iAT200..MTM199503-199712

main31210-32130iST204..MTM199309

sub31210-33030

31230BEARING ASSY, CLUTCH RELEASE

main31230-12170iAT200..MTM199309-199712

sub31230-12171

main31230-32060iST204..MTM199309-199905

31232ACLIP, RELEASE BEARING HUB

main31232-12050iAT200..MTM199309-199712

TYPE A:REFER TO ILLUSTRATION

main31232-12060iAT200..MTM199309-199712

TYPE B:REFER TO ILLUSTRATION

main31232-12070iAT200..MTM199309-199712

TYPE C:REFER TO ILLUSTRATION

main31232-20020iST204..MTM199309-199905

TYPE A:REFER TO ILLUSTRATION

main31232-32050iST204..MTM199309-199905

TYPE B:REFER TO ILLUSTRATION

31236BSUPPORT, RELEASE FORK

main31236-12020iAT200..MTM199309-199712

main31236-32010iST204..MTM199309-199905

31250DISC ASSY, CLUTCH

main31250-12320iAT200..MTM199309-199505

sub31250-12360

main31250-12360iAT200..MTM199505-199712

sub31250-12361

main31250-17040iST204..MTM199309-199607

sub31250-20250

main31250-20250iST204..MTM199607-199712

sub31250-20251

main31250-20330iST204..MTM199712-199812

sub31250-20331

main31250-20331iST204..MTM199812

sub31250-20332

9011908026

main90119-08026

8 parts on this diagram · 2 diagrams in section
