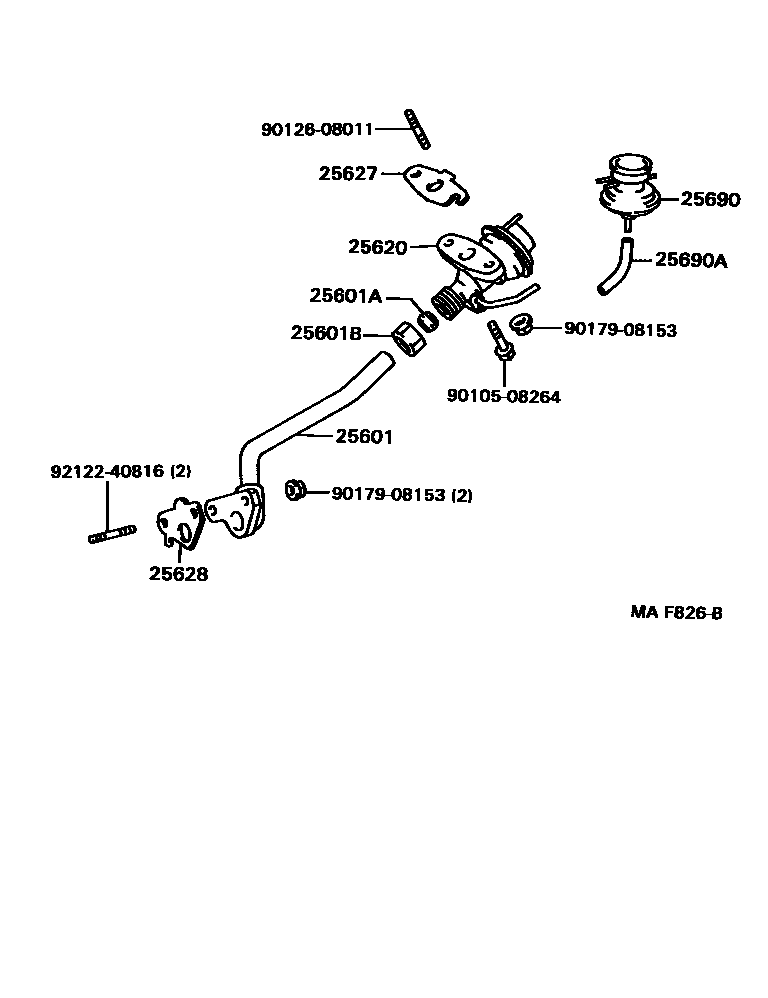

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1 0003 1

25601PIPE SUB-ASSY, EGR, NO.1

main25601-16050i7AFE..AT200199309-199508

main25611-74030i5SFE..ST204199309-199905

25601ASLEEVE, BALL, EGR PIPE, NO.1

main90410-12042i5SFE..ST204199309-199905

main90410-16001i7AFE..AT200199309-199508

25601BNUT, UNION, EGR PIPE, NO.1

main90402-20009i5SFE..ST204..CVT199508-199905

UNION SIDE

main90402-20009i5SFE..ST204..CVT199309-199510

CALIFORNIA SPEC,UNION SIDE

main90402-20073i5SFE..ST204..CP,LB199309-199510

CALIFORNIA SPEC,EGR VALVE SIDE

main90402-20073i5SFE..ST204..CVT199508-199905

EGR VALVE SIDE

main90402-22005i7AFE..AT200199309-199508

25620VALVE ASSY, EGR

main25620-16210i7AFE..AT200..MTM199309-199508

main25620-16220i7AFE..AT200..ATM199309-199508

main25620-16260i7AFE..AT200..MTM199508-199712

main25620-16270i7AFE..AT200..ATM199508-199712

main25620-74230i5SFE..ST204..MTM199309-199510

main25620-74240i5SFE..ST204..CVT..ATM199309-199510

main25620-74300i5SFE..ST204..(CP,LB)..MTM199508-199905

main25620-74310i5SFE..ST204..ATM199508-199905

25627GASKET, EGR VALVE

main25627-16040i7AFE..AT200199309-199508

main25627-16070i7AFE..AT200199508-199712

main25627-74011i5SFE..ST204199309-199905

25628GASKET, EGR INLET

main25628-16030i7AFE..AT200199309-199712

25690MODULATOR ASSY, EGR VACUUM

main25870-16230i7AFE..AT200..MTM199309-199712

main25870-16240i7AFE..AT200..ATM199309-199712

main25870-74090i5SFE..ST204199309-199905

25690AHOSE(FOR EGR VACUUM MODULATOR)

main25695-16070i7AFE..AT200199309-199712

main90445-11065i5SFE..ST204199309-199905

9010508264

main90105-08264

9012608011

main90126-08011

9017908153

main90179-08153

9212240816

main92122-40816

12 parts on this diagram · 3 diagrams in section
