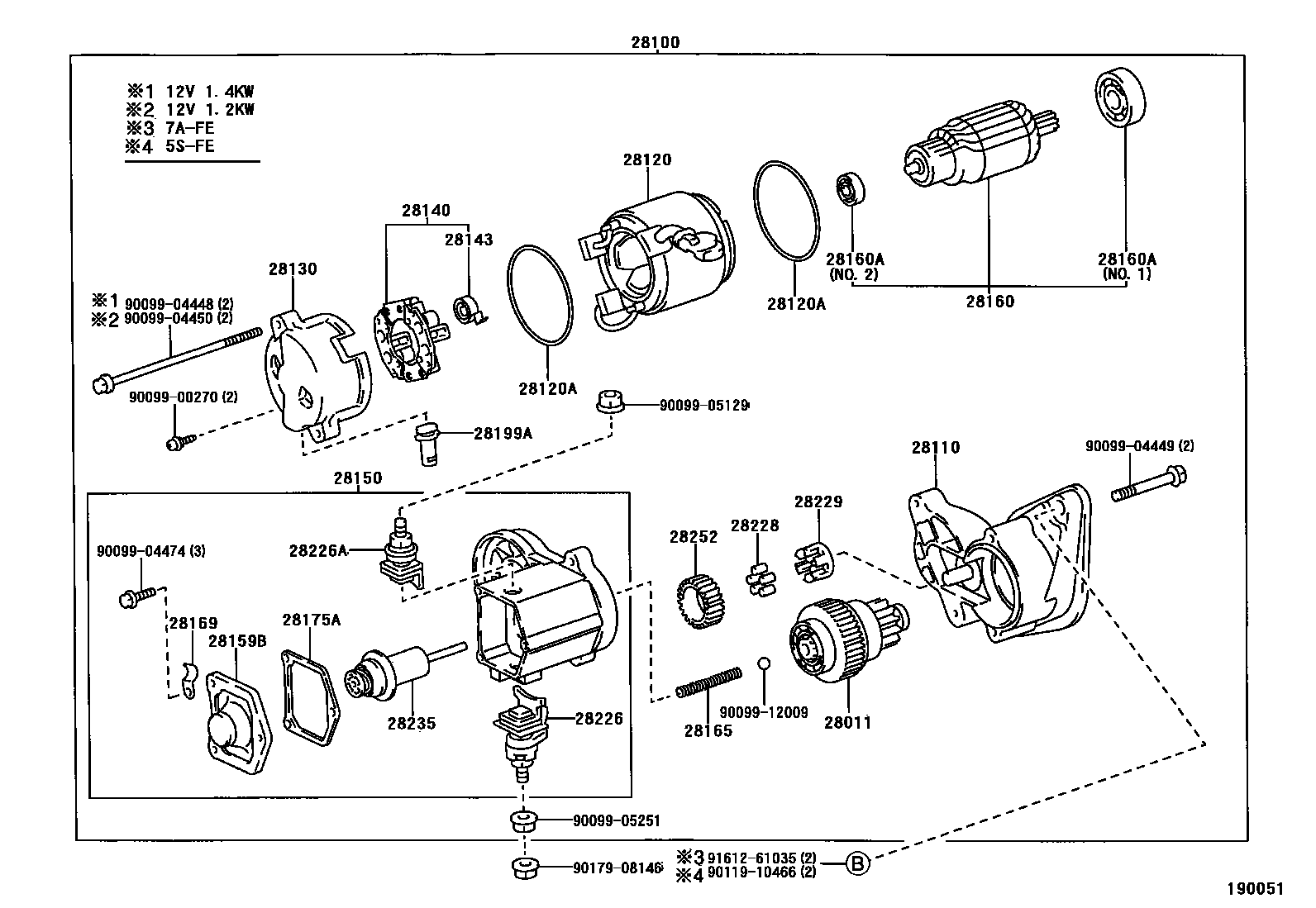

STARTER
28011CLUTCH SUB-ASSY, STARTER
28100STARTER ASSY
12V 1.4KW
12V 1.4KW
28110HOUSING ASSY, STARTER DRIVE
28120YOKE ASSY, STARTER
12V 1.2KW
12V 1.4KW
12V 1.2KW
28120ARING, O(FOR STARTER YOKE)
28130FRAME ASSY, STARTER COMMUTATOR END
12V 1.4KW
12V 1.2KW
28140HOLDER ASSY, STARTER BRUSH
12V 1.2KW
12V 1.4KW
28143SPRING, STARTER BRUSH
12V 1.2KW
12V 1.4KW
28159BCOVER, MAGNET SWITCH
28160ARMATURE ASSY, STARTER
12V 1.4KW
12V 1.2KW
28160ABEARING, STARTER ARMATURE
NO.2
NO.1
28165SPRING, STARTER MAGNET SWITCH RETURN
28169CLAMP, STARTER MOTOR LEAD WIRE
28175AGASKET, MAGNET SWITCH COVER
28199APROTECTOR, DUST STARTER
28226STARTER KIT, BATTERY TERMINAL
sub28226-64370
28226ASTARTER KIT, MOTOR TERMINAL
28228ROLLER, STARTER IDLE GEAR CLUTCH
28229RETAINER, STARTER IDLE GEAR
28235PLUNGER, MAGNET SWITCH
28252GEAR, STARTER IDLE
9009900270
main90099-00270
9009904448
main90099-04448
9009904449
main90099-04449
9009904450
main90099-04450
9009904474
main90099-04474
9009905129
main90099-05129
9009905251
main90099-05251
9009912009
main90099-12009
9011910466
main90119-10466
9017908146
main90179-08146
9161261035
main91612-61035
33 parts on this diagram · 1 diagram in section
