IGNITION COIL & SPARK PLUG / GLOW PLUG

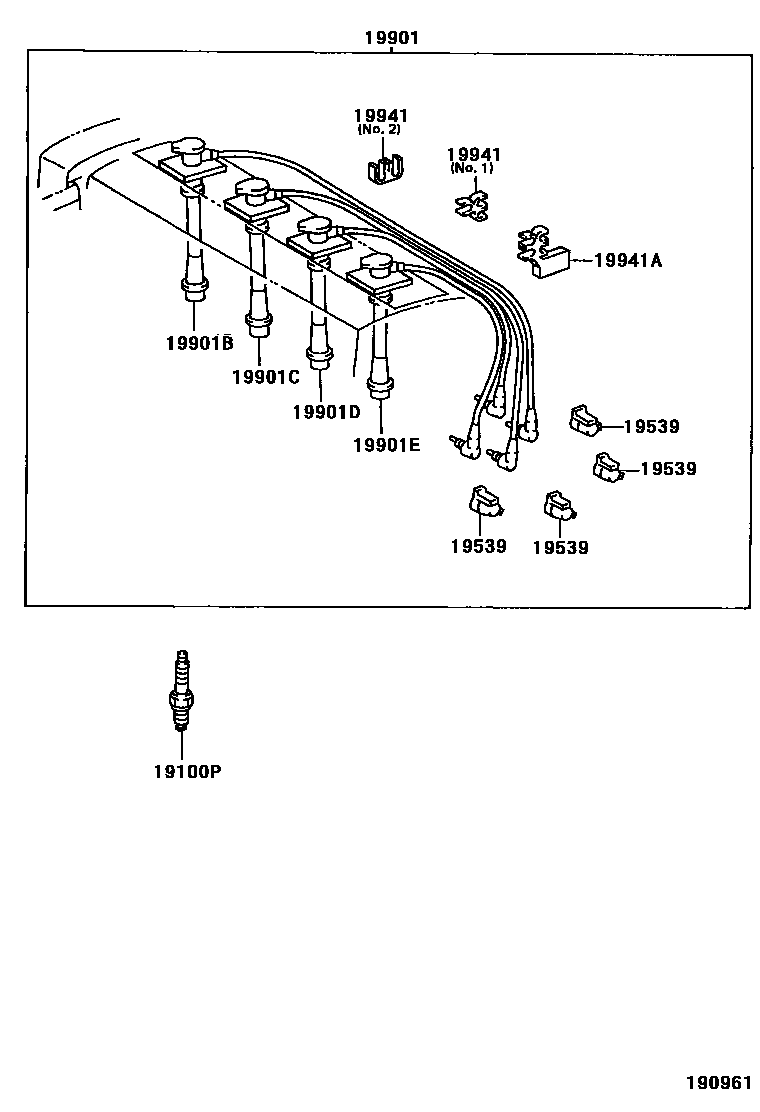

Parts diagram
19100PPLUG, SPARK
main90919-01176i199309-199712
K16R-U
main90919-01178i199309-199905
PK20R11
sub90919-01210
19539HOLDER, RESISTIVE CODE, NO.4
main19532-50010i199309-199712
NO.2,4
main19539-11010i199309-199712
NO.1
main19539-46010i199309-199712
NO.3
main19539-62020i199309-199412
main19539-74040i199412-199510
19901CORD SET, COIL & SPARK, W/RESISTIVE
main90919-21576i199309-199510
CALIFORNIA SPEC
sub90919-29175
main90919-21576i199510
sub90919-29175
main90919-22327i199309-199712
sub90919-22419
main90919-22369i199309-199407
SUMITOMO
sub90919-22370
main90919-22370i199408-199510
main90919-22370i199309-199408
YAZAKI
19901BCORD, SPARK PLUG RESISTIVE, NO.1
main90919-15211i199309-199712
sub90919-15590
main90919-15400i199309-199510
CALIFORNIA SPEC
sub90919-15578
main90919-15400i199510-199905
sub90919-15578
main90919-15409i199309-199510
19901CCORD, SPARK PLUG RESISTIVE, NO.2
main90919-15210i199309-199712
sub90919-15591
main90919-15401i199309-199510
CALIFORNIA SPEC
sub90919-15579
main90919-15401i199510-199905
sub90919-15579
main90919-15411i199309-199510
19901DCORD, SPARK PLUG RESISTIVE, NO.3
main90919-15209i199309-199712
sub90919-15592
main90919-15402i199309-199510
CALIFORNIA SPEC
sub90919-15580
main90919-15402i199510-199905
sub90919-15580
main90919-15410i199309-199510
19901ECORD, SPARK PLUG RESISTIVE, NO.4
main90919-15208i199309-199712
sub90919-15593
main90919-15261i199309-199510
main90919-15349i199309-199510
CALIFORNIA SPEC
sub90919-15581
main90919-15349i199510-199905
sub90919-15581
19941CLAMP, RESISTIVE CORD, NO.1
main90464-00561i199309-199712
NO.1
main90464-00655i199309-199712
NO.2
19941ACLAMP(FOR RESISTIVE CORD)
main90929-01273i199309-199712

9 parts on this diagram · 4 diagrams in section
