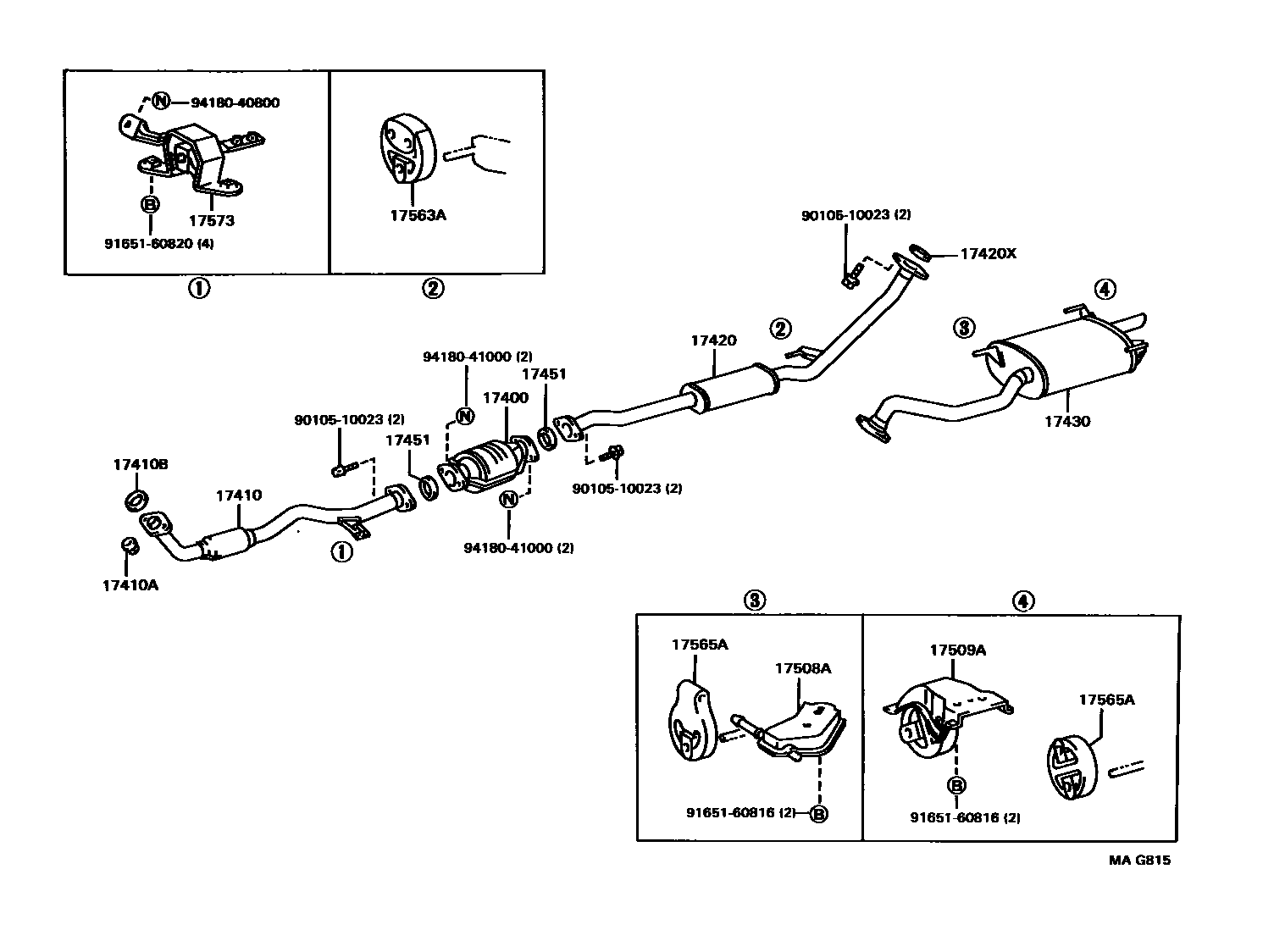

EXHAUST PIPE
17400CONVERTER ASSY, W/CATALYST
(L)
CALIFORNIA SPEC,(L)
(J)
CALIFORNIA SPEC,(J)
CALIFORNIA SPEC
17410PIPE ASSY, EXHAUST, FRONT
CALIFORNIA SPEC
CALIFORNIA SPEC
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17420PIPE ASSY, EXHAUST, CENTER
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17451GASKET, EXHAUST PIPE
CALIFORNIA SPEC,FRONT
CALIFORNIA SPEC,FRONT
FRONT
CALIFORNIA SPEC,REAR
REAR
17508ABRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT
17509ABRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
17563ASUPPORT, EXHAUST PIPE, NO.3
17565ASUPPORT, EXHAUST PIPE, NO.4
REAR
17573BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER
9010510023
main90105-10023
9165160816
main91651-60816
9165160820
main91651-60820
9418040800
main94180-40800
9418041000
main94180-41000
18 parts on this diagram · 2 diagrams in section
