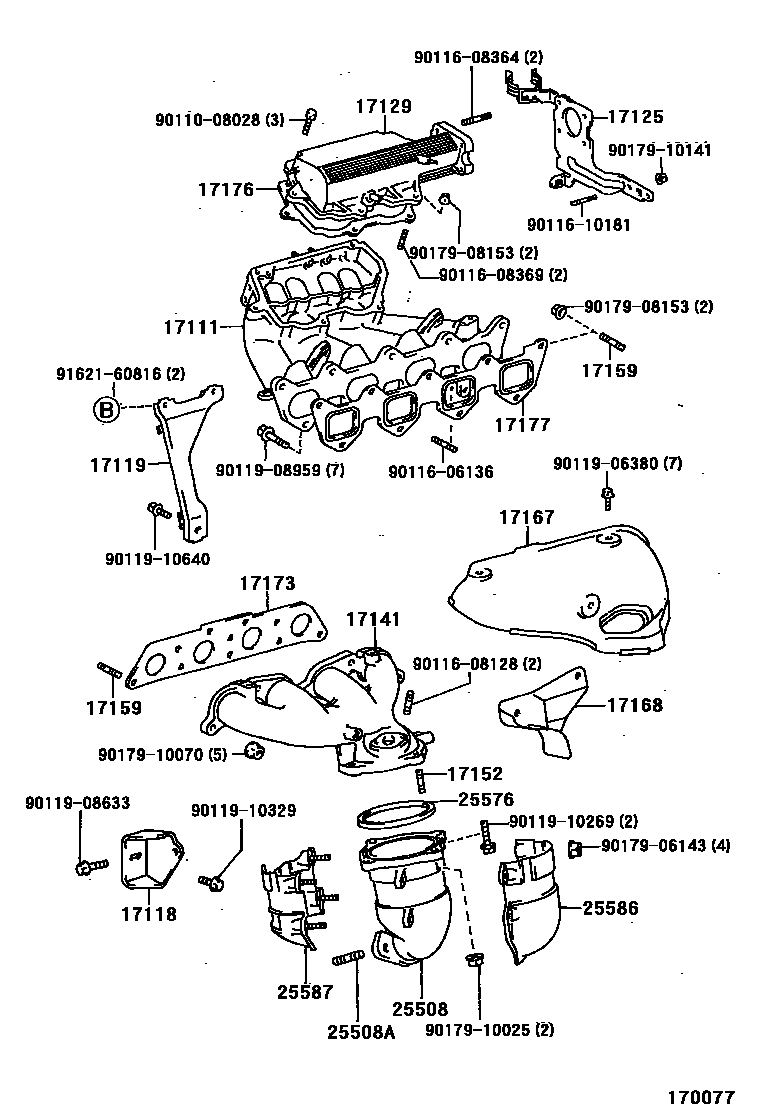

MANIFOLD
17119STAY, MANIFOLD, NO.2
17125STAY, SURGE TANK, NO.1
17129TANK, INTAKE AIR SURGE
17141MANIFOLD, EXHAUST
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
EXHAUST MANIFOLD
INTAKE MANIFOLD
EXHAUST MANIFOLD
INTAKE MANIFOLD
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
25508CONVERTER SUB-ASSY, MANIFOLD
CALIFORNIA SPEC
25508ABOLT, STUD(FOR MANIFOLD CONVERTER)
25576GASKET, MANIFOLD CONVERTER
9011008028
main90110-08028
9011606136
main90116-06136
9011608128
main90116-08128
9011608364
main90116-08364
9011608369
main90116-08369
9011610181
main90116-10181
9011906380
main90119-06380
9011908633
main90119-08633
9011908959
main90119-08959
9011910269
main90119-10269
9011910329
main90119-10329
9011910640
main90119-10640
9017906143
main90179-06143
9017908153
main90179-08153
9017910025
main90179-10025
9017910070
main90179-10070
9017910141
main90179-10141
9162160816
main91621-60816
36 parts on this diagram · 3 diagrams in section
