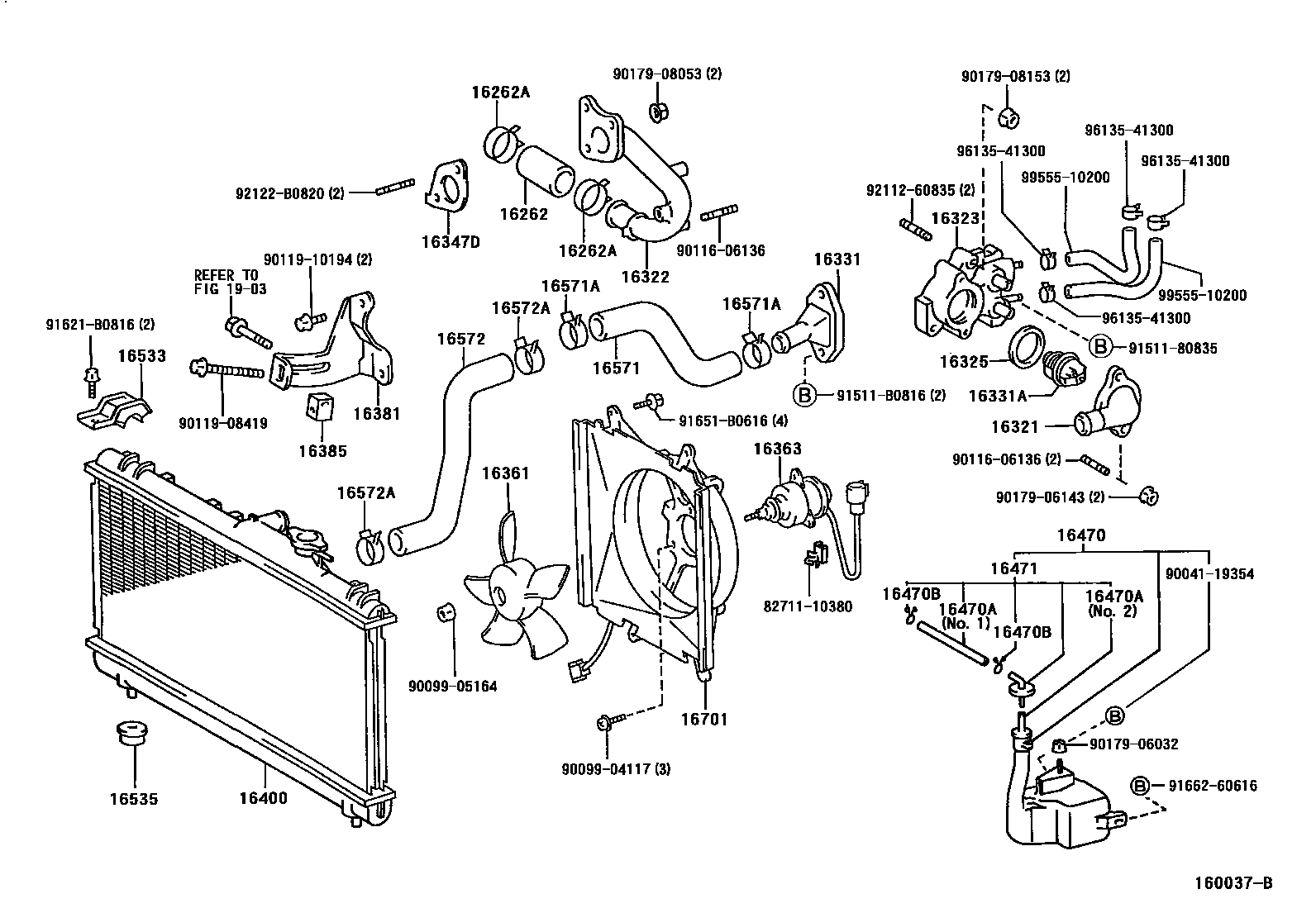

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1

16262HOSE, WATER INLET

main16262-15040i7AFE..AT200¥910199309-199712

sub16262-16030¥900

16262ACLIP(FOR WATER INLET HOSE)

main90467-37002i7AFE..AT200¥480199309-199712

sub90467-37005¥410

16321INLET, WATER

main16321-15040i7AFE..AT200¥3,730199309-199712

main16321-74030i5SFE..ST204¥4,000199309-199510

sub16321-74050¥2,100

main16321-74050i5SFE..ST204¥2,100199508-199905

16322PIPE, WATER INLET

main16322-16060i7AFE..AT200¥6,100199309-199712

16323HOUSING, WATER INLET

main16323-16420i7AFE..AT200¥10,000199309-199712

sub16323-16410¥10,000

16325GASKET, WATER INLET HOUSING, NO.1

main16325-63011i5SFE..ST204¥680199309-199905

16331OUTLET, WATER

main16331-15080i7AFE..AT200¥1,960199309-199712

main16331-74170i5SFE..ST204..CVT¥5,800199309-199510

main16331-74210i5SFE..ST204..CP,LB¥4,590199508-199707

sub16331-74260¥4,590

main16331-74220i5SFE..ST204¥4,730199712-199905

main16331-74260i5SFE..ST204¥4,590199707-199712

main16331-74260i5SFE..ST204¥4,590199712-199905

W(WATER OUTLET PLUG)

16331ATHERMOSTAT

main90916-03046i5SFE..ST204¥1,740199309-199608

*WAX 82-95

main90916-03090i5SFE..ST204¥1,990199603-199905

*WAX 82-95

main90916-03109i7AFE..AT200¥2,030199608-199712

*WAX 82-95

sub90916-03115¥1,350

16347DGASKET, WATER BY-PASS

main16347-15010i7AFE..AT200¥130199309-199712

16361FAN

main16361-74060i7AFE..AT200¥4,500199309-199712

16363MOTOR, COOLING FAN

main16363-11020i7AFE..AT200¥23,900199309-199712

16381BAR, FAN BELT ADJUSTING

main16381-15080i7AFE..AT200¥2,340199309-199712

16385SLIDER, FAN BELT ADJUSTING

main16385-15020i7AFE..AT200¥930199309-199712

sub16385-15030¥840

16400RADIATOR ASSY

main16400-16530i7AFE..AT200..MTM¥35,000199309-199712

main16400-16540i7AFE..AT200..ATM¥40,500199309-199712

main16400-7A060i5SFE..ST204..MTM¥35,000199309

main16400-7A070i5SFE..ST204..ATM¥43,100199309

16470TANK ASSY, RADIATOR RESERVE

main16470-74260i7AFE..AT200¥3,380199309-199712

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12066i5SFE..ST204..GT¥1,360199309-199712

L=600(*H,L=300),NO.2

main90445-12066i5SFE..ST204..ST¥1,360199712

L=600(*H,L=300)

main90445-12078i7AFE..AT200¥580199309-199712

L=600(*H,L=210),NO.1

main90445-12078i5SFE..ST204..ST¥580199712

L=600(*H,L=210)

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i7AFE..AT200¥100199309-199712

16471CAP SUB-ASSY, RESERVE TANK

main16405-74250i7AFE..AT200199309-199712

16533SUPPORT, RADIATOR, UPPER

main16533-74260i7AFE..AT200¥3,700199309-199712

16535SUPPORT, RADIATOR, LOWER

main90916-04002i7AFE..AT200¥840199309-199712

16571HOSE, RADIATOR, INLET

main16571-16240i7AFE..AT200¥1,620199309-199712

main16571-74280i5SFE..ST204¥1,970199309-199510

main16571-74340i5SFE..ST204¥2,170199508-199510

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-34003i7AFE..AT200¥400199309-199712

sub90467-34004¥390

16572HOSE, RADIATOR, OUTLET

main16572-16200i7AFE..AT200¥2,600199309-199712

main16572-74230i5SFE..ST204¥1,760199309

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-34003i7AFE..AT200¥400199309-199712

sub90467-34004¥390

16701SHROUD SUB-ASSY, FAN

main16711-74500i7AFE..AT200¥7,000199309-199505

sub16711-74501¥7,000

main16711-74501i5SFE..ST204¥7,000199505-199712

1903

8271110380WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10380¥100

9004119354

main90041-19354

9009904117

main90099-04117

9009905164

main90099-05164¥0

9011606136

main90116-06136¥130

9011908419

main90119-08419¥280

9011910194

main90119-10194¥190

9017906032

main90179-06032¥120

9017906143

main90179-06143¥80

9017908053

main90179-08053¥140

9017908153

main90179-08153¥90

9151180835

main91511-80835¥90

91511B0816

main91511-B0816¥90

91621B0816

main91621-B0816¥90

91651B0616

main91651-B0616¥80

9166260616

main91662-60616¥100

9211260835

main92112-60835¥190

92122B0820

main92122-B0820¥160

9613541300

main96135-41300¥140

9955510200

main99555-10200¥320

46 parts on this diagram · 4 diagrams in section
