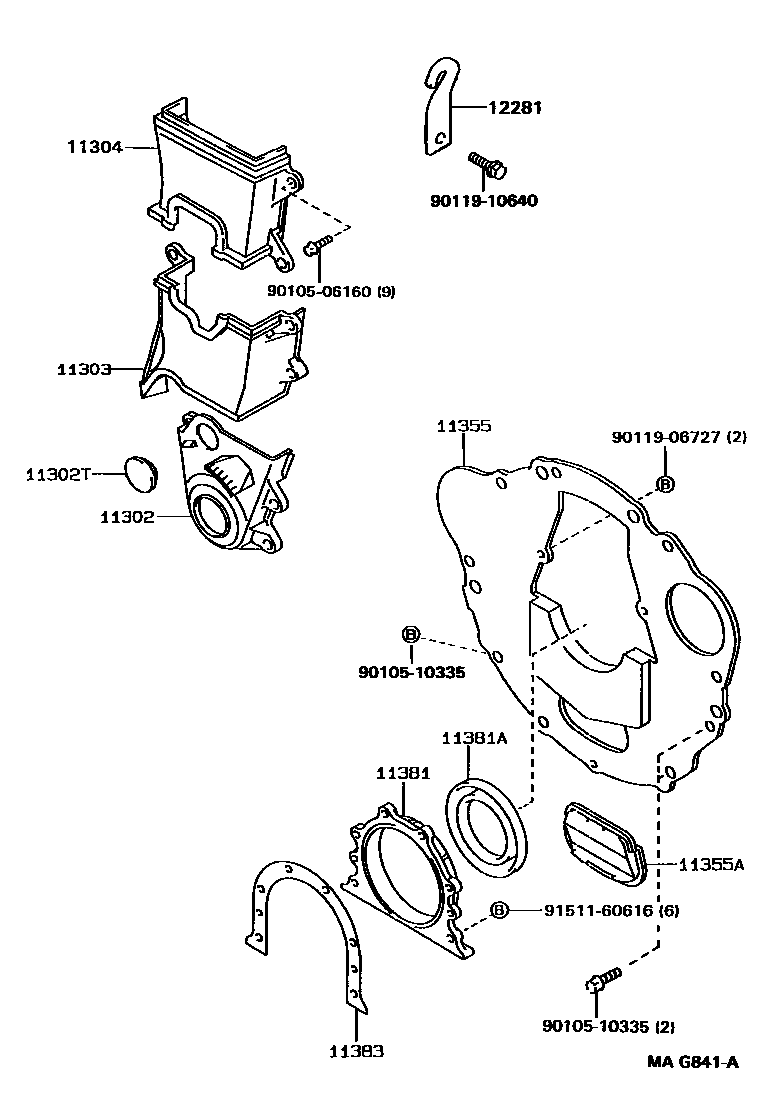

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0004 1

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-15050i7AFE..AT200199309-199508

main11302-16040i7AFE..AT200199508-199712

main11302-74030i5SFE..ST204199309-199510

main11302-74040i5SFE..ST204199508-199905

11302TPLUG, HOLE

main90950-01783i7AFE..AT200199309-199712

11303COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY

main11303-16050i7AFE..AT200199309-199508

main11303-16070i7AFE..AT200199508-199712

11304COVER, TIMING CHAIN OR BELT, NO.2

main11303-74040i5SFE..ST204199309-199510

main11303-74050i5SFE..ST204..CP,LB199508-199905

main11304-16060i7AFE..AT200199309-199712

11355PLATE, REAR END

main11355-15070i7AFE..AT200..MTM199309-199712

main11355-15080i7AFE..AT200..ATM199309-199712

main11355-74010i5SFE..ST204199309-199905

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01264i7AFE..AT200..ATM199309-199712

11381RETAINER, ENGINE REAR OIL SEAL

main11381-15010i7AFE..AT200199309-199712

main11381-63012i5SFE..ST204199309-199905

11381ASEAL, ENGINE REAR OIL

main90311-70007i7AFE..AT200199309-199712

main90311-85006i5SFE..ST204199309-199801

sub90311-85009

main90311-85009i5SFE..ST204199801-199905

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-16010i7AFE..AT200199309-199712

main11383-74021i5SFE..ST204199309-199905

12281HANGER, ENGINE, NO.1

main12281-15050i7AFE..AT200199309-199712

9010506160

main90105-06160

9010510335

main90105-10335

9011906727

main90119-06727

9011910640

main90119-10640

9151160616

main91511-60616

15 parts on this diagram · 3 diagrams in section
