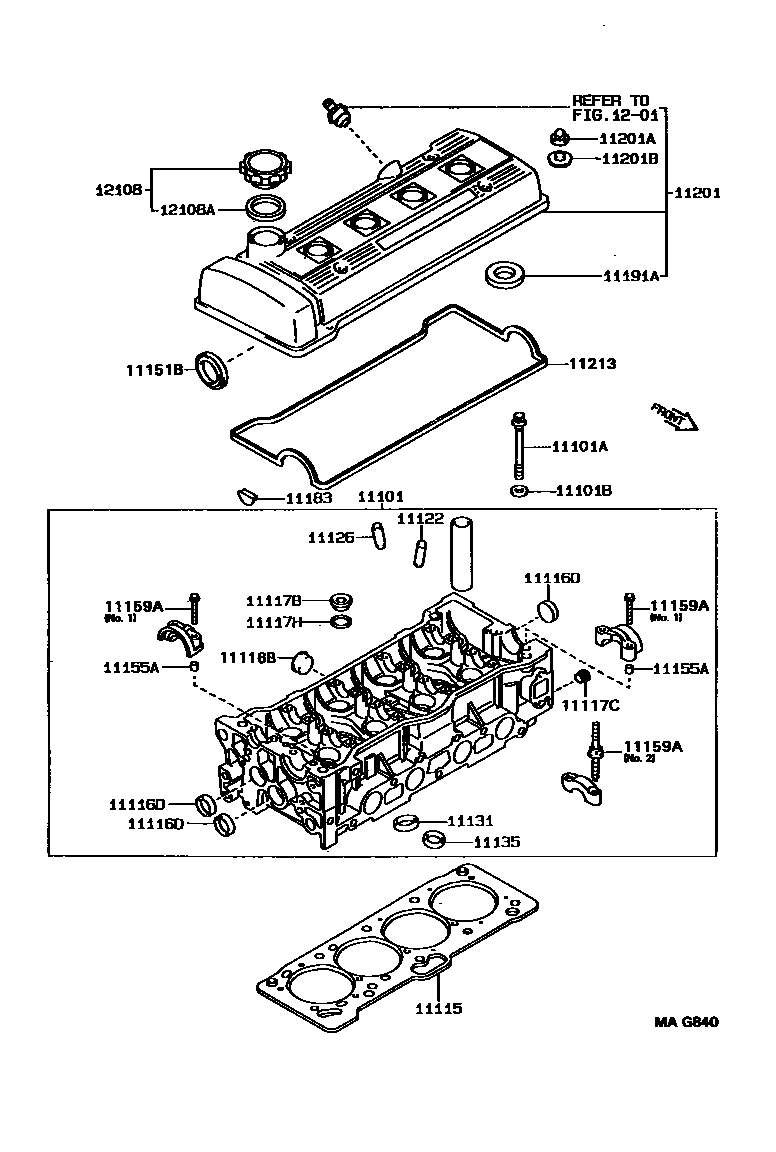

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
CALIFORNIA SPEC,(L)
CALIFORNIA SPEC
sub11101-74900
sub11101-79175
CALIFORNIA SPEC,(J)
11101ABOLT(FOR CYLINDER HEAD SET)
INTAKE
EXHAUST
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11116BPLUG, TIGHT, NO.2
11116DPLUG, TIGHT, NO.4
11117BPLUG, W/HEAD TAPER SCREW, NO.2
11117CPLUG, W/HEAD TAPER SCREW, NO.3
11117HGASKET(FOR WATER HOLE)
11122BUSH, INTAKE VALVE GUIDE
STD
STD
O/S 0.05
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
O/S 0.05
11131SEAT, INTAKE VALVE
STD
STD
O/S 0.03
O/S 0.03
11135SEAT, EXHAUST VALVE
STD
STD
O/S 0.03
O/S 0.03
11155APIN, RING W/HEAD
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
NO.1
NO.2
11183PLUG, SEMICIRCULAR
11191TUBE, SPARK PLUG
11191AGASKET(FOR SPARK PLUG TUBE)
11201ANUT, CAP(FOR CYLINDER HEAD COVER)
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
1201
12108AGASKET(FOR OIL FILLER CAP)
26 parts on this diagram · 2 diagrams in section
