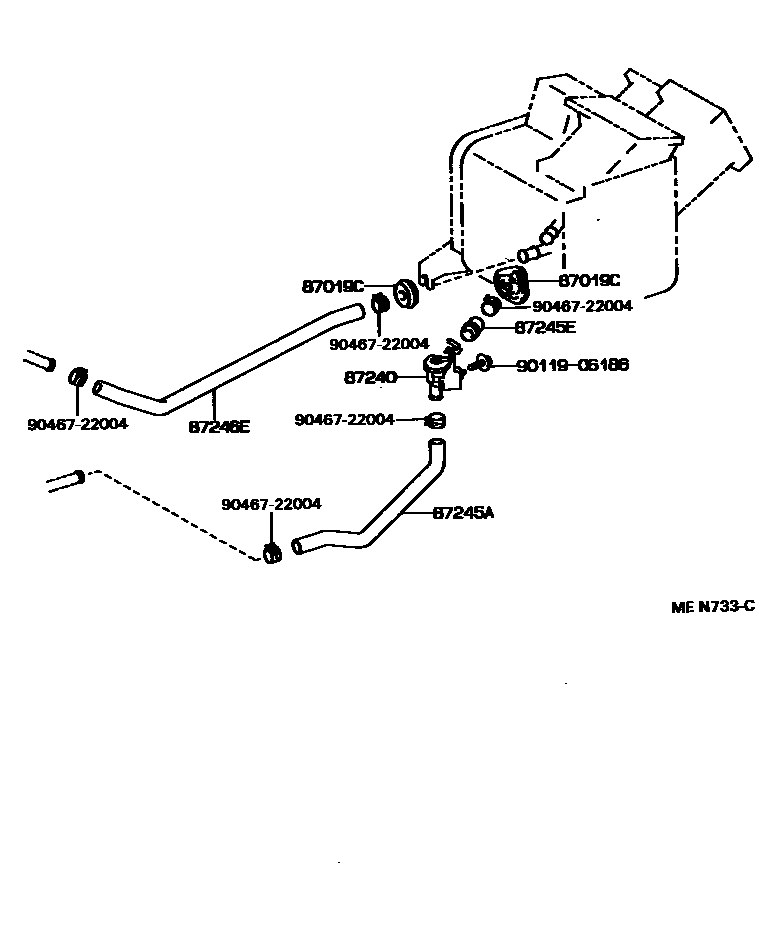

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

87019CGROMMET, HEATER HOSE

main90480-01527iAT180,ST18#198909-199309

INLET

main90480-36011iAT180,ST18#198909-199309

OUTLET

87240VALVE ASSY, HEATER WATER

main87240-20360iAT180,ST18#198909-199309

87245AHOSE, HEATER WATER, INLET A

main87245-2B530iAT180198909-199309

main87245-2B540iST18#198909-199309

87245EHOSE, HEATER WATER, INLET E

main87245-2B510iAT180,ST18#198909-198912

main99556-30100iAT180,ST18#198912-199309

*H,L=60

87246EHOSE, HEATER WATER, OUTLET E

main87245-2B500iAT180198909-199106

sub87245-2B501

main87245-2B501iAT180199106-199309

main87245-2B560iST18#198909-199309

main87245-2B600iST184..CP,LB199108-199309

9011906186

main90119-06186

9046722004

main90467-22004

7 parts on this diagram · 2 diagrams in section
