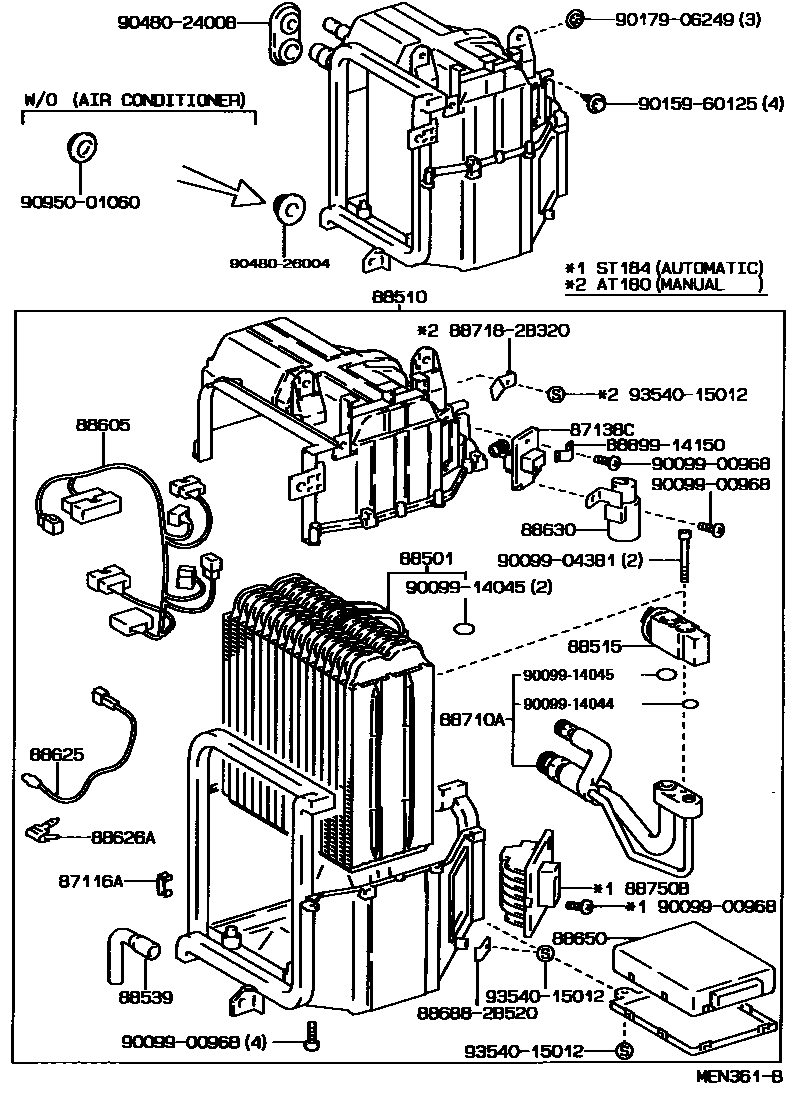

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1ST184=AUTOMATIC 0002 1ST184..NOB=MANUAL 0003 1MANUAL 0004 1AUTO

87116ASPRING, HOLDING (FOR COOLER UNIT CASE)

main87116-14010iST184..GTS198909-199309

87138CRESISTOR, BLOWER

main87138-20150iST184..CP..CND199108-199309

W(GRADE PACKAGE=EVP2 & MANUAL *AIC)

main87138-20150iST18#198909-199309

W(MANUAL AIR CONDITIONER)

main87138-20150iST184..GTS..USA199108-199309

W(MANUAL *AIC & GRADE PACKAGE=EVP1)

main87138-20150iST18#..(CVT,LB)..(GT,TBOAT)..USA199108-199309

W(*66 & MANUAL AIR CONDITIONER)

main87138-20150iST184..CP199004-199108

W(GRADE PACKAGE=EVP1 & MANUAL AIR CONDITIONER)

main87138-20150iAT180,ST18#199008-199309

main87138-20160iST184..GT198909-199309

W(AUTOMATIC AIR CONDITIONER)

main87138-20180iAT180198909-199008

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-20270iAT180;ST184..LB198909-199309

sub88501-20271

88510UNIT ASSY, COOLER

main88510-20871iAT180198910-199108

main88510-2B021iST184..CVT198909-199109

AUTOMATIC

main88510-2B070iST18#198909-199109

MANUAL

main88510-2B080iST18#..WIB198909-199108

AUTOMATIC

main88510-2B150iAT180199108-199309

main88510-2B270iST18#199108-199309

AUTOMATIC

main88510-2B330iST18#199108-199309

MANUAL

88515VALVE, COOLER EXPANSION

main88515-14060iST184..GT198909-199008

sub88515-14061

main88515-14060iST184..GTS198909-199004

EVP 2 PACKAGE OR W(MANUAL AIR CONDITIONER) OR W(AUTOMATIC AIR CONDITIONER)

sub88515-14061

main88515-14061iST184..LB..GT198909-199108

sub88515-14062

main88515-14061iST184..CP;ST184..GTS199108-199309

DEALER OPT

sub88515-14062

main88515-14062iAT180,ST185;ST184..(CVT,LB)..GT199008-199309

sub88515-33010

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-22110iAT180;ST184..LB198909-199309

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-2B540iAT180198912-199108

main88605-2B541iAT180199108-199309

main88605-2B550iST184..CP198912-199008

MANUAL

main88605-2B560iAT180198909-198912

sub88605-2B540

main88605-2B590iST184..LB..GT198909-198912

MANUAL

sub88605-2B550

main88605-2B600iST184..GT198909-199008

AUTOMATIC

main88605-2B610iST185198909-199008

MANUAL

main88605-2B620iST18#..WIB198909-199008

AUTOMATIC

main88605-2D060iST18#..WIB199008-199108

AUTOMATIC

main88605-2D070iST18#..WIB199008-199108

MANUAL

main88605-2D080iST184..CVT199008-199109

AUTOMATIC

main88605-2D081iST18#199108-199309

AUTOMATIC

main88605-2D090iST184..GT199008-199109

MANUAL

main88605-2D091iST18#..CP,LB199108-199309

MANUAL

88625THERMISTOR, COOLER, NO.1

main88625-20270iST18#..LB..(GT,TBO4W,TBOAT)198909-199309

MANUAL,MAKER OPT

main88625-20270iST184..GTS198909-199004

MANUAL

main88625-20270iAT180198909-199309

main88625-20280iST18#198909-199109

AUTOMATIC,MAKER OPT

main88625-20350iST18#199108-199309

AUTOMATIC,MAKER OPT

main88625-60050iST18#..CP,LB199108-199309

DEALER OPT

88626AHOLDER, THERMISTOR

main88626-28010iST18#..LB..(GT,TBO4W,TBOAT)198909-199309

88630RELAY ASSY, COOLER

main88630-20240iST184..GT198909-199309

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-20660iST18#198909-199109

sub88650-2B140

main88650-20680iAT180198909-199309

main88650-2B140iST18#..CP,LB199108-199309

88710ATUBE ASSY, AIR CONDITIONER

main88710-20200iAT180,ST185;ST184..(CVT,LB)..GT198909-199309

88750BTRANSISTOR ASSY, BLOWER RESISTOR

main88750-20010iST18#198909-199309

886882B520BRACKET, COOLER DIAPHRAGM

main88688-2B520

887182B320PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2B320

8889914150COVER, EVAPORATOR

main88899-14150

9009900968

main90099-00968

9009904381

main90099-04381

9009914044

main90099-14044

9009914045

main90099-14045

9015960125

main90159-60125

9017906249

main90179-06249

9048024008

main90480-24008

9048026004

main90480-26004

9095001060

main90950-01060

9354015012

main93540-15012

26 parts on this diagram · 4 diagrams in section
