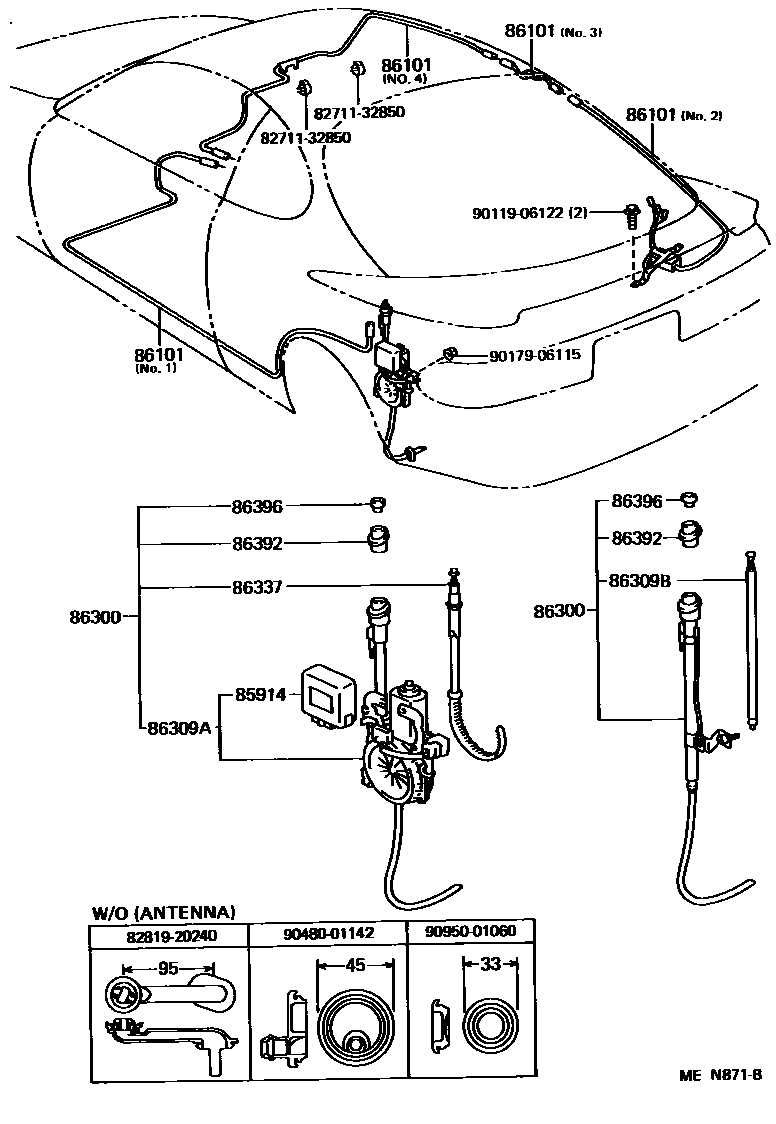

ANTENNA

0001 1 0002 1 0003 1

85914RELAY, MOTOR ANTENNA CONTROL

main85914-30010iAT180,ST18#198909-199309

86101CORD SUB-ASSY, ANTENNA

main86101-20380iAT180199008-199108

W(SUN ROOF & 6SP) OR 10SP,NO.1

main86101-20380iST18#..CP,LB198909-199008

6SP,NO.1

main86101-20380iAT180198909-199309

6SP OR 10SP,NO.1

main86101-20380iAT180,ST18#..CP,LB198909-199309

NO.1

main86101-20380iAT180199008-199108

W(SUN ROOF & 6SP) OR 6SP OR 10SP,NO.1

main86101-20380iAT180199008-199108

W(SUN ROOF & 6SP) OR W(SUN ROOF & 10SP),NO.1

main86101-20390iST18#..LB..USA199008-199108

W(SUN ROOF & 6SP) OR 6SP OR 10SP,NO.2

main86101-20390iST18#..LB198909-199309

6SP OR 10SP,NO.2

main86101-20390iST18#..LB..CND199008-199108

W(SUN ROOF & 6SP) OR W(SUN ROOF & 10SP),NO.2

main86101-20400iST18#..LB..USA199008-199108

W(SUN ROOF & 6SP) OR 6SP OR 10SP,NO.3

main86101-20400iST18#..LB..CND199008-199108

W(SUN ROOF & 6SP) OR W(SUN ROOF & 10SP),NO.3

main86101-20400iST18#..WIB198909-199309

6SP OR 10SP,NO.3

main86101-20410iST18#..LB198909-199309

6SP OR 10SP,NO.4

main86101-20420iST18#..WIB198909-199309

W(SUN ROOF & 6SP) OR W(SUN ROOF & 10SP),NO.4

main86101-20430iST184..CP198909-199108

6SP,NO.2

main86101-20430iST184..CP198909-199211

6SP OR 10SP,NO.2

main86101-20440iST184..CP..CND198909-199211

W(SUN ROOF & 6SP) OR W(SUN ROOF & 10SP),NO.2

main86101-20440iAT180198909-199108

W(SUN ROOF & 6SP),NO.2

main86101-20480iST184..CVT199006-199309

86300ANTENNA ASSY, W/HOLDER

main86300-20670iST18#..LB198909-199002

MOTOR TYPE

sub86300-20671

main86300-20671iST18#..WIB199002-199309

MOTOR TYPE

main86300-20671iST18#..LB..USA199008-199108

MOTOR TYTPE

main86300-20680iST18#..LB198909-199108

sub86300-20681

main86300-20681iST18#..LB199108-199309

main86300-20690iST184..CVT198909-199109

sub86300-20691

main86300-20691iAT180,ST184..CP,CVT199108-199309

main86300-20700iAT180198909-199309

MOTOR TYPE

main86300-20700iST184..CP..CND199008-199108

MOTOR TYTPE

86309APOLE SUB-ASSY, MOTOR ANTENNA

main86309-20220iAT180,ST184..CP,CVT198909-199309

main86309-20230iST18#..LB198909-199002

sub86309-20231

main86309-20231iST18#..LB199002-199309

86309BPOLE SUB-ASSY, PULL TOP ANTENNA

main86309-20200iAT180,ST184..CP,CVT198909-199109

sub86309-20201

main86309-20201iAT180,ST184..CP,CVT199108-199309

main86309-20210iST18#..LB198909-199108

sub86309-20211

main86309-20211iST18#..LB199108-199309

86337ROD & PIPE, SEALED W/CABLE

main86337-32200iAT180,ST18#..CP,LB198909-199309

86392ORNAMENT, ANTENNA

main86392-20110iAT180,ST184..CP,CVT198909-199309

main86392-20120iST18#..LB198909-199309

main86392-20130iST184..CP..CND198909-199309

MOTOR TYPE

main86392-20140iST18#..WIB198909-199309

MOTOR TYPE

86396NUT, ANTENNA

main86396-12020iAT180,ST18#198909-199309

main86396-50010iST18#..(CP,LB)..USA198909-199309

8271132850WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-32850

8281920240GROMMET, WIRING HARNESS

main82819-20240

9011906122

main90119-06122

9017906115

main90179-06115

9048001142

main90480-01142

9095001060

main90950-01060

14 parts on this diagram · 3 diagrams in section
