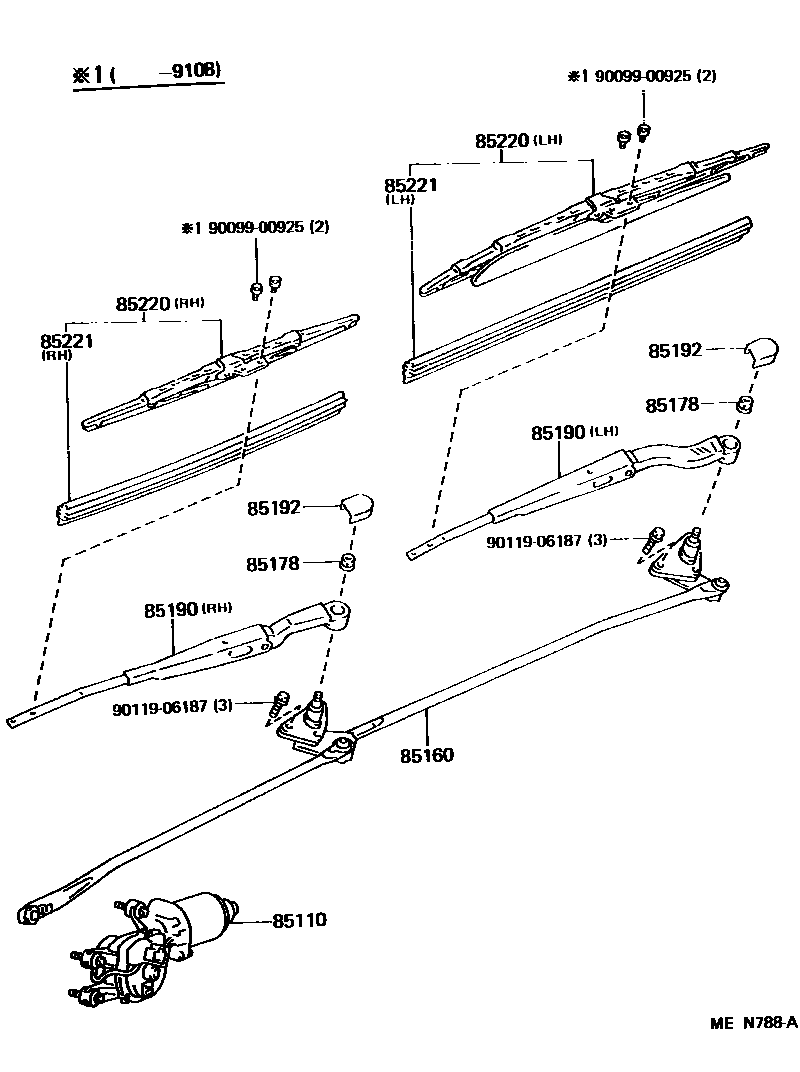

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-20610iAT180,ST18#198909-199309

85160LINK ASSY, WINDSHIELD WIPER

main85160-20430iAT180,ST18#198909-199309

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-08113iAT180,ST18#198909-199309

85190ARM ASSY, WINDSHIELD WIPER

main85190-20720iAT180,ST184..NOB198909-199309

LH

main85190-20730iST184..CVT198909-199109

LH

main85210-20260iAT180,ST184..NOB198909-199309

RH

main85210-20270iST18#..WIB198909-199309

RH

85192COVER, WINDSHIELD WIPER ARM

main85192-12800iAT180,ST18#198909-199309

85220BLADE ASSY, WINDSHIELD WIPER

main85220-1A140iAT180,ST184..NOB198909-199309

RH

main85220-3A270iAT180,ST18#198909-199309

LH

main85220-3A280iST184..CVT198909-199109

LH

main85220-3A290iST18#..WIB198909-199309

RH

85221BLADE, WINDSHIELD WIPER

main85221-20240iAT180,ST18#198909-199309

LH

sub85213-17040

main85221-20250iST18#..WIB198909-199108

RH

sub85223-17010

main85221-20250iST184..CVT199006-199109

LIMITED EDITION,RH

sub85223-17010

main85221-22220iST184..CVT198909-199109

RH

sub85223-22700

main85223-17010iST18#..WIB199108-199309

RH

sub85221-30130

main85223-22700iAT180,ST184..(CP,LB)..NOB199108-199309

RH

sub85221-40040

9009900925

main90099-00925

9011906187

main90119-06187

9 parts on this diagram · 1 diagram in section
