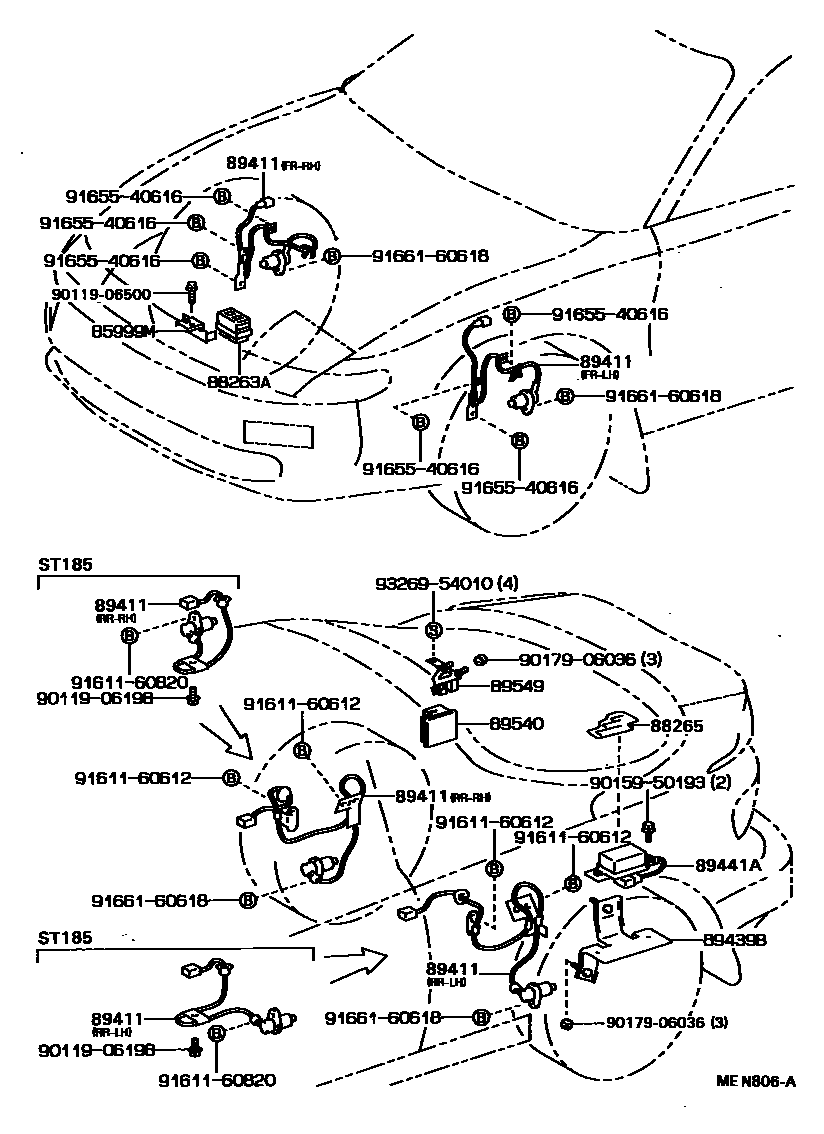

ABS & VSC

0001 1 0002 1

85999MBRACKET, RELAY

main85999-20350iST18#..CP,LB198909-199309

88263ARELAY, SKID CONTROL

main88263-12070iST18#198909-199309

sub88263-12080

88265LABEL, SKID CONTROL CAUTION

main88265-20050iST185198910-199309

89411SENSOR, SPEED

main89542-20020iST18#..WIB198909-199309

main89543-20020iST18#..WIB198909-199309

main89545-20050iST184198909-199309

REAR-RH

main89545-20060iST185198910-199309

REAR-RH

main89546-20050iST184198909-199309

REAR-LH

main89546-20060iST185198910-199309

REAR-LH

89439BBRACKET, SENSOR

main89439-20010iST185198910-199309

89441ASENSOR, DECELERATION

main89441-20030iST185198910-199309

89540COMPUTER ASSY, SKID CONTROL

main89541-20050iST184..GTS198909-199108

main89541-20060iST185198910-199108

main89541-20100iST184199108-199309

main89541-20110iST185199108-199309

89549BRACKET, SKID CONTROL COMPUTER

main89549-20040iST18#..WIB198909-199108

main89549-20070iST18#..CP,LB199108-199309

main89549-20090iST184..CVT199109-199309

9011906198

main90119-06198

9011906500

main90119-06500

9015950193

main90159-50193

9017906036

main90179-06036

9161160612

main91611-60612

9161160820

main91611-60820

9165540616

main91655-40616

9166160618

main91661-60618

9326954010

main93269-54010

17 parts on this diagram · 2 diagrams in section
