OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1

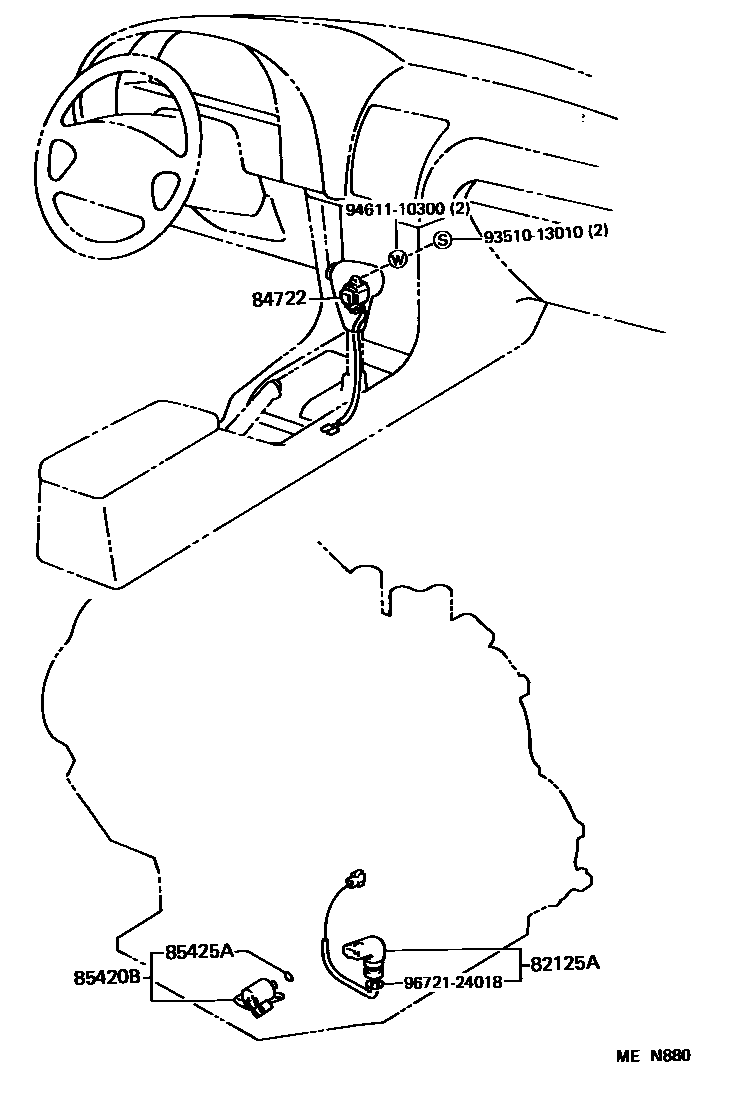

82125AWIRE, TRANSMISSION

main82125-20170iAT180..ATM198909-199309

84722SWITCH, TRANSMISSION CONTROL

main84722-20100iAT180,ST184..ATM198909-199309

85420SOLENOID ASSY, TRANSMISSION

main85420-12062iST184..ATM..GTS198909-199309

LOCK UP

main85420-22080iST184..ATM198909-199309

NO.1 OR NO.2

85420BSOLENOID ASSY, TRANSMISSION

main85420-10011iAT180,ST184..NOB..ATM198909-199309

85425ARING, O (FOR OVERDRIVE SOLENOID)

main90301-06004iAT180,ST184..NOB..ATM198909-199309

9351013010

main93510-13010

9461110300

main94611-10300

9672124018

main96721-24018

8 parts on this diagram · 2 diagrams in section
