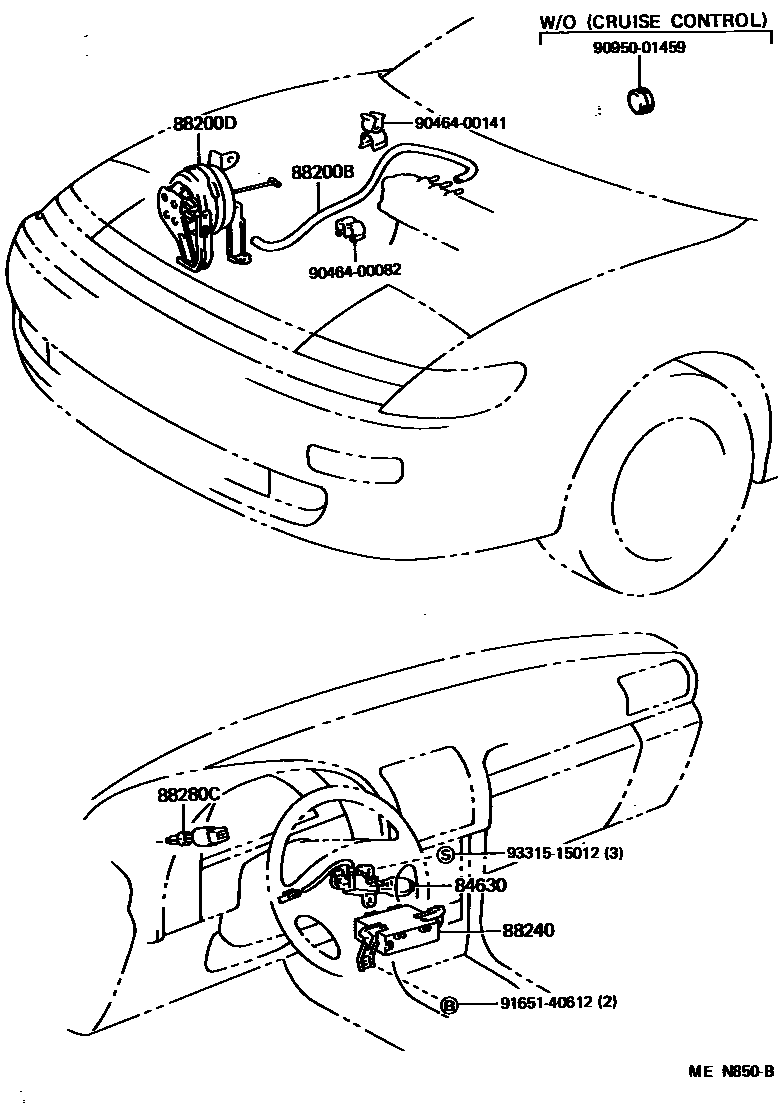

CRUISE CONTROL (AUTO DRIVE)
84630SWITCH ASSY, CRUISE CONTROL MAIN
EVP 1 PACKAGE & W(CRUISE CONTROL) OR W(CRU ISE CONTROL & INTERMITTENT WIPER);EVP1 PACKAGE & W(CRUISE CONTROL & INTERMITTENT WIPER)
sub84630-20140
W(CRUISE CONTROL & INTERMITTENT WIPER);EVP 1 PACKAGE & W(CRUISE CONTROL = MOTOR TYPE);EVP 1 PACKAGE & W(CRUISE CONTROL = MOTOR TYPE & INTERMITTENT WIPER)
sub84630-20140
EVP 2 PACKAGE & W(CRUISE CONTROL = MOTOR TYPE) OR W(CRUISE CONTROL)
sub84630-20140
sub84630-20140
88200BHOSE, CRUISE CONTROL VACUUM
L=950
L=950
88200DACTUATOR ASSY, CRUISE CONTROL
W(CRUISE CONTROL = VACUUM TYPE)
sub88200-20140
sub88200-20140
W(CRUISE CONTROL = MOTOR TYPE)
88240COMPUTER ASSY, CRUISE CONTROL
W(CRUISE CONTROL = VACUUM TYPE)
W(CRUISE CONTROL = VACUUM TYPE)
W(CRUISE CONTROL = VACUUM TYPE)
W(CRUISE CONTROL = MOTOR TYPE)
W(CRUISE CONTROL = MOTOR TYPE)
W(CRUISE CONTROL = MOTOR TYPE)
88280CSWITCH ASSY, CLUTCH
9046400082
main90464-00082
9046400141
main90464-00141
9095001459
main90950-01459
9165140612
main91651-40612
9331515012
main93315-15012
10 parts on this diagram · 3 diagrams in section
