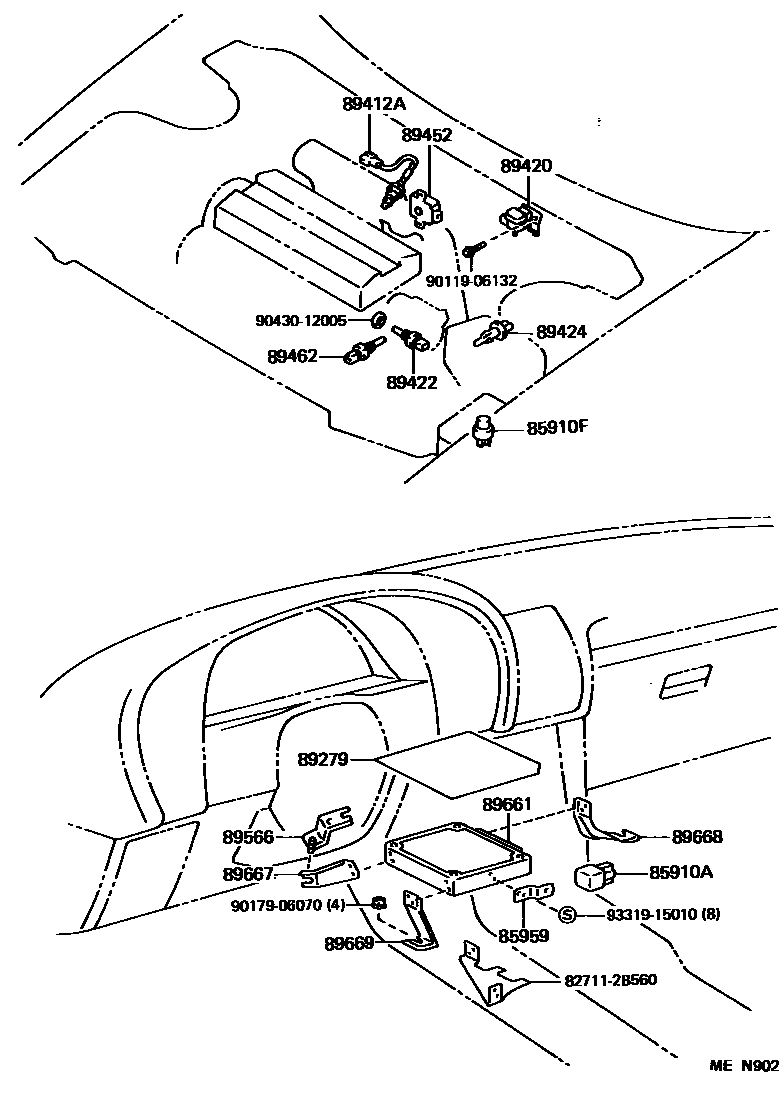

ELECTRONIC FUEL INJECTION SYSTEM
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910FRELAY, COMPUTER (FOR EFI)
85959HOLDER, RELAY
89279COVER, ENGINE CONTROL COMPUTER
CALIFORNIA SPEC
89412ASENSOR, E.G.R GAS TEMPERATURE
CALIFORNIA SPEC
CALIFORNIA SPEC,NIPPONDENSO
89420SENSOR ASSY, VACUUM
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89452SENSOR, THROTTLE POSITION (FOR E.F.I.)
89462SWITCH, START INJECTOR TIME
89566BRACKET, FUEL INJECTION COMPUTER
89661COMPUTER, ENGINE CONTROL
CALIFORNIA SPEC
sub89661-20651
CALIFORNIA SPEC
sub89661-20671
CALIFORNIA SPEC
sub89661-20761
CALIFORNIA SPEC
CALIFORNIA SPEC
CALIFORNIA SPEC
CALIFORNIA SPEC
sub89661-2B161
sub89661-2B171
89667BRACKET, ENGINE CONTROL COMPUTER
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
89669BRACKET, ENGINE CONTROL COMPUTER, NO.3
827112B560WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2B560
9011906132
main90119-06132
9017906070
main90179-06070
9043012005
main90430-12005
9331915010
main93319-15010
20 parts on this diagram · 3 diagrams in section
