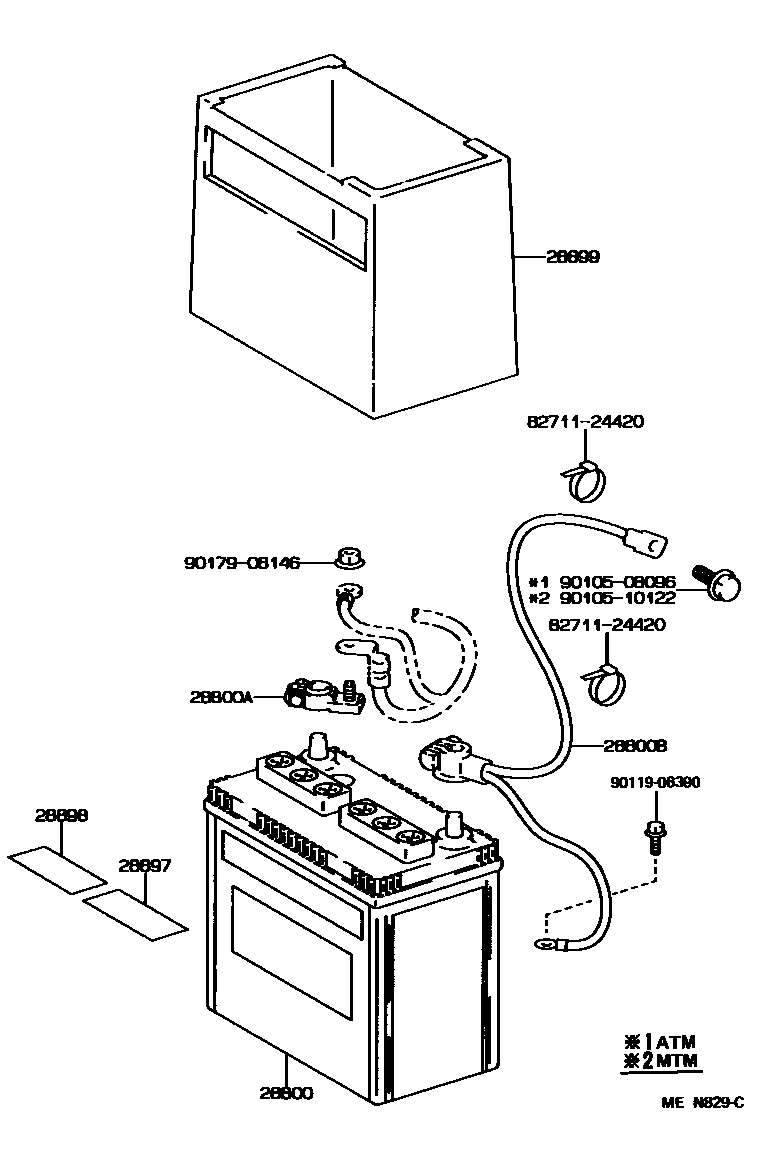

BATTERY & BATTERY CABLE

28800BATTERY

main28800-31021i4AFE,5SFE..AT180,ST184..(CP,LB)..USA198911-199309

32C24L

sub28800-31010

main28800-31031i4AFE,5SFE..AT180,ST184..USA198909-198911

32C24L

sub28800-31021

main28800-43250i4AFE,3SGTE..AT180,ST185198909-199210

55D23L

sub28800-64010

main28800-43261i5SFE..ST184..(CP,LB)..USA199210-199309

55D23L

main28800-74150i5SFE..ST184199108-199210

75D26L

main28800-74151i5SFE..ST184199210-199309

75D26L

28800ATERMINAL, BATTERY POSITIVE

main90982-05030i4AFE,3SGTE,5SFE..AT180,ST18#198909-199309

28800BCABLE, BATTERY TO GROUND

main82123-20120i4AFE..AT180198909-199108

main82123-20121i4AFE..AT180199108-199309

main82123-20180i3SGTE,5SFE..ST18#198909-199109

main82123-20181i3SGTE,5SFE..ST18#199108-199309

28897PLATE, BATTERY CAUTION

main28897-26010i4AFE,5SFE..AT180,ST184..(CP,LB)..USA198909-199309

main28897-38010i4AFE,3SGTE,5SFE..AT180,ST18#..CND198909-199309

28898PLATE, BATTERY

main28898-26010i4AFE,3SGTE,5SFE..AT180,ST18#..USA198909-199309

28899INSULATOR, BATTERY

main28899-74070i4AFE,3SGTE,5SFE..AT180,ST18#198909-199309

sub28899-55030

main28899-74070i5SFE..ST184..(CP,LB)..USA199108-199309

W(55D23L BATTERY)

sub28899-55030

main28899-74080i4AFE,5SFE..AT180,ST184..(CP,LB)..USA198909-199309

W(32C24L BATTERY)

sub28899-11070

main28899-74090i5SFE..ST184199108-199309

8271124420WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24420

9010508096

main90105-08096

9010510122

main90105-10122

9011906390

main90119-06390

9017908146

main90179-08146

11 parts on this diagram · 1 diagram in section
