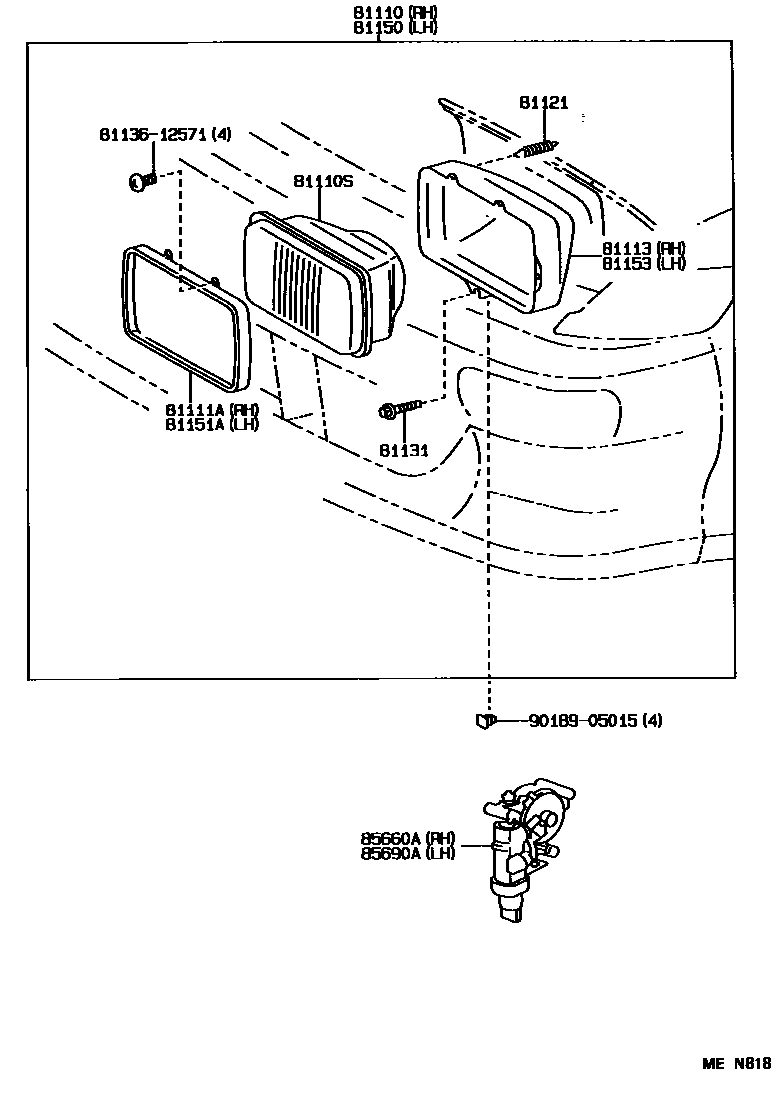

HEADLAMP

81110HEADLAMP ASSY, RH

main81110-2B430iAT180198909-199108

main81110-2B440iST18#198909-199108

W(RECTANGULAR SEALD HALOGEN)

main81110-2B440iAT180,ST18#199108-199309

81110SSEALED BEAM UNIT, NO.1

main90981-04004iAT180198909-199108

12V 65/55W,*WB

main90981-04020iST18#198909-199309

12V 65/35W,*HAL,*WB

main90981-04020iST18#198909-199108

12V 65/35W,*HAL,*WB,W(RECTANGULAR SEALD HALOGEN)

81111ARING, SEALED BEAM RETAINING, NO.1 RH

main81111-2B360iAT180,ST18#198909-199309

81113RING, SEALED BEAM MOUNTING, NO.1 RH

main81113-2B360iAT180,ST18#198909-199309

81121SPRING, HEADLAMP TENSION

main81121-12570iAT180198909-199108

main81121-17010iST18#198909-199108

W(RECTANGULAR SEALD HALOGEN)

main81121-17010iAT180,ST18#199108-199309

81131SCREW, HEADLAMP ADJUSTING

main90075-00003iAT180,ST18#198909-199309

81150HEADLAMP ASSY, LH

main81150-2B430iAT180198909-199108

main81150-2B440iST18#198909-199108

W(RECTANGULAR SEALD HALOGEN)

main81150-2B440iAT180,ST18#199108-199309

81151ARING, SEALED BEAM RETAINING, NO.1 LH

main81111-2B360iAT180,ST18#198909-199309

81153RING, SEALED BEAM MOUNTING, NO.1 LH

main81153-2B360iAT180,ST18#198909-199309

85660AMOTOR ASSY, LIGHT RETRACTOR, RH

main85660-20030iAT180,ST18#198909-199008

main85660-20031iAT180,ST18#199008-199309

85690AMOTOR ASSY, LIGHT RETRACTOR, LH

main85690-20030iAT180,ST18#198909-199008

main85690-20031iAT180,ST18#199008-199309

8113612571PROTECTOR, HEADLAMP, NO.1 RH

main81136-12571

9018905015

main90189-05015

13 parts on this diagram · 1 diagram in section
