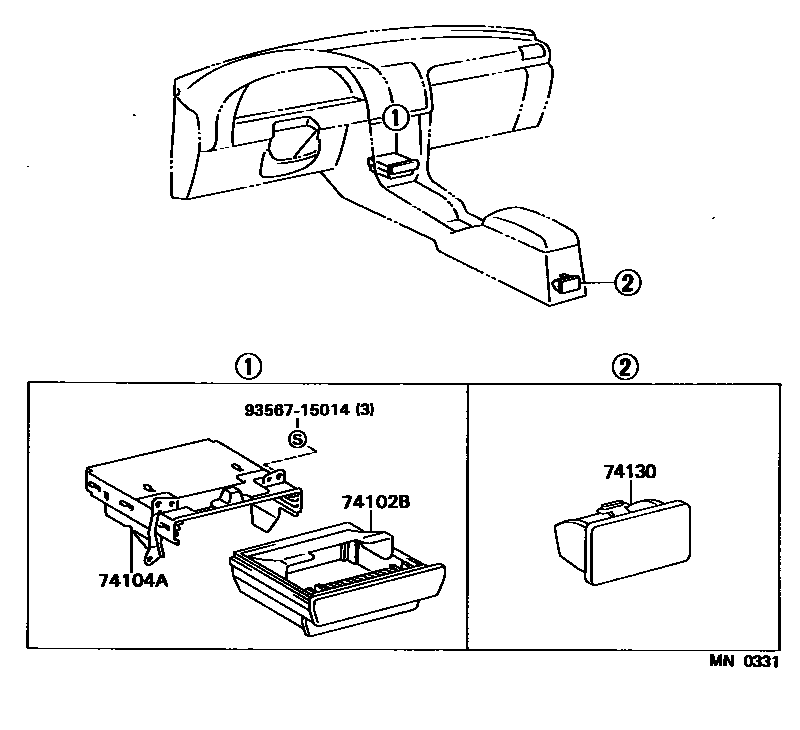

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-20200iAT180,ST18#198909-199309

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-20260iAT180,ST18#198909-199309

74130RECEPTACLE ASSY, REAR ASH

main74109-20080-02iAT180,ST18#..CP,LB198909-199008

RED,TRIM3#

sub74109-20080

main74109-20080-03iAT180,ST18#198909-199309

GRAY,TRIM1#

sub74109-20080

main74109-20080-04iAT180,ST18#..CP,LB198909-199309

BLUE,TRIM8#

sub74109-20080

main74109-20080-26iAT180,ST18#..CP,LB199008-199108

CHOCOLATE BROWN,TRIM4#

sub74109-20080

9356715014

main93567-15014

4 parts on this diagram · 1 diagram in section
