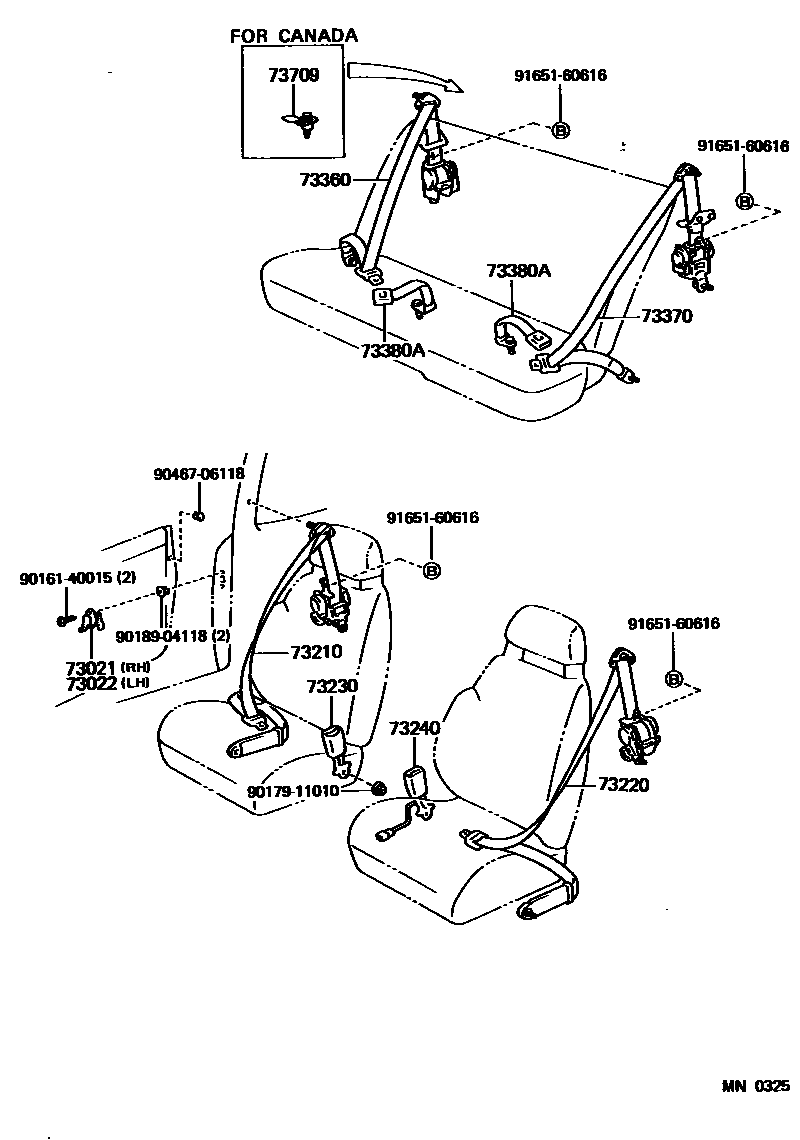

SEAT BELT & CHILD RESTRAINT SEAT

0001 1 0002 1

73021LEVER SUB-ASSY, SEAT BELT COMFORT, RH

main73021-20020iAT180,ST18#..CP,LB198909-199309

73022LEVER SUB-ASSY, SEAT BELT COMFORT, LH

main73022-20020iAT180,ST18#..CP,LB198909-199309

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-20500-02iAT180,ST18#..CP,LB198910-199008

RED,TRIM3#

sub73210-20501

main73210-20500-03iAT180,ST18#..CP,LB198909-199008

SHADOW GRAY,TRIM1#

sub73210-20501

main73210-20500-04iAT180,ST18#..CP,LB198910-199008

DARK BLUE,TRIM8#

sub73210-20501

main73210-20501-03iAT180,ST18#..CP,LB199008-199108

SHADOW GRAY,TRIM1#

main73210-20501-04iAT180,ST18#..CP,LB199008-199108

DARK BLUE,TRIM8#

main73210-20501-06iAT180,ST18#..CP,LB199008-199108

CHOCOLATE BROWN,TRIM4#

main73210-20560-03iST184..CVT199006-199109

SHADOW GRAY,TRIM1#

sub73210-20660

main73210-20650-B0iAT180,ST18#..CP,LB199108-199110

SHADOW GRAY,TRIM1#

sub73210-20651

main73210-20650-J0iAT180,ST184..CP,LB199108-199110

DARK BLUE,TRIM8#

sub73210-20651

main73210-20651-B0iAT180,ST18#..CP,LB199110-199309

SHADOW GRAY,TRIM1#

sub73210-20652

main73210-20651-J0iAT180,ST184..CP,LB199110-199309

DARK BLUE,TRIM8#

sub73210-20652

main73210-20660-B0iST184..CVT199109-199309

SHADOW GRAY,TRIM1#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-20370-02iAT180,ST18#..CP,LB198910-199008

RED,TRIM3#

sub73220-20371

main73220-20370-03iAT180,ST18#..CP,LB198909-199008

SHADOW GRAY,TRIM1#

sub73220-20371

main73220-20370-04iAT180,ST18#..CP,LB198910-199008

DARK BLUE,TRIM8#

sub73220-20371

main73220-20371-03iAT180,ST18#..CP,LB199008-199108

SHADOW GRAY,TRIM1#

sub73220-20371

main73220-20371-04iAT180,ST18#..CP,LB199008-199108

DARK BLUE,TRIM8#

sub73220-20371

main73220-20371-06iAT180,ST18#..CP,LB199008-199108

CHOCOLATE BROWN,TRIM4#

sub73220-20371

main73220-20490-03iST184..CVT199006-199109

SHADOW GRAY,TRIM1#

sub73220-20530

main73220-20520-B0iAT180,ST18#..CP,LB199108-199110

SHADOW GRAY,TRIM1#

sub73220-20521

main73220-20520-J0iAT180,ST184..CP,LB199108-199110

DARK BLUE,TRIM8#

sub73220-20521

main73220-20521-B0iAT180,ST18#..CP,LB199110-199309

SHADOW GRAY,TRIM1#

sub73220-20522

main73220-20521-J0iAT180,ST184..CP,LB199110-199309

DARK BLUE,TRIM8#

sub73220-20522

main73220-20530-B0iST184..CVT199109-199309

SHADOW GRAY,TRIM1#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-20500-02iAT180,ST18#..CP,LB198909-199008

RED,TRIM3#

sub73230-20501

main73230-20500-03iAT180,ST18#..CP,LB198909-199008

SHADOW GRAY,TRIM1#

sub73230-20501

main73230-20500-04iAT180,ST18#..CP,LB198909-199008

DARK BLUE,TRIM8#

sub73230-20501

main73230-20520-03iAT180,ST18#..CP,LB199008-199309

SHADOW GRAY,TRIM1#

main73230-20520-04iAT180,ST184..CP,LB199008-199309

DARK BLUE,TRIM8#

main73230-20520-06iAT180,ST18#..CP,LB199008-199108

CHOCOLATE BROWN,TRIM4#

main73240-20110-03iST184..CVT199006-199309

SHADOW GRAY,TRIM1#

sub73240-20110

73240BELT ASSY, FRONT SEAT INNER, LH

main73240-20110-03iST184..CVT199006-199309

SHADOW GRAY,TRIM1#

sub73240-20110

main73240-20160-02iAT180,ST18#..CP,LB198910-199008

RED,TRIM3#

sub73240-20161

main73240-20160-03iAT180,ST18#..CP,LB198909-199008

SHADOW GRAY,TRIM1#

sub73240-20161

main73240-20160-04iAT180,ST18#..CP,LB198910-199008

DARK BLUE,TRIM8#

sub73240-20161

main73240-20161-03iAT180,ST18#..CP,LB199008-199309

SHADOW GRAY,TRIM1#

sub73240-20161

main73240-20161-04iAT180,ST18#..CP,LB199008-199309

DARK BLUE,TRIM8#

sub73240-20161

main73240-20161-06iAT180,ST18#..CP,LB199008-199108

CHOCOLATE BROWN,TRIM4#

sub73240-20161

73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH

main73360-20270-02iST18#..LB198910-199007

RED,TRIM3#

sub73360-20271

main73360-20270-03iST18#..LB198909-199007

SHADOW GRAY,TRIM1#

sub73360-20271

main73360-20270-04iST18#..LB198910-199007

DARK BLUE,TRIM8#

sub73360-20271

main73360-20271-03iST18#..LB199007-199008

SHADOW GRAY,TRIM1#

sub73360-20272

main73360-20271-04iST184..LB199007-199008

DARK BLUE,TRIM8#

sub73360-20272

main73360-20272-03iST18#..LB199008-199108

SHADOW GRAY,TRIM1#

main73360-20272-04iST18#..LB199008-199108

DARK BLUE,TRIM8#

main73360-20272-06iST18#..LB199008-199108

CHOCOLATE BROWN,TRIM4#

main73360-20320-03iST184..CVT199006-199109

SHADOW GRAY,TRIM1#

main73360-20360-02iAT180,ST184..CP198909-199007

RED,TRIM3#

sub73360-20361

main73360-20360-03iAT180,ST184..CP198909-199007

SHADOW GRAY,TRIM1#

sub73360-20361

main73360-20360-04iAT180,ST184..CP198909-199007

DARK BLUE,TRIM8#

sub73360-20361

main73360-20361-03iAT180,ST184..CP199007-199008

SHADOW GRAY,TRIM1#

sub73360-20362

main73360-20361-04iAT180,ST184..CP199007-199008

DARK BLUE,TRIM8#

sub73360-20362

main73360-20362-03iAT180,ST184..CP199008-199108

SHADOW GRAY,TRIM1#

main73360-20362-04iAT180,ST184..CP199008-199108

DARK BLUE,TRIM8#

main73360-20362-06iAT180,ST184..CP199008-199108

CHOCOLATE BROWN,TRIM4#

main73360-20490-B0iAT180,ST184..CP199108-199110

SHADOW GRAY,TRIM1#

sub73360-20491

main73360-20490-J0iAT180,ST184..CP199108-199110

DARK BLUE,TRIM8#

sub73360-20491

main73360-20491-B0iAT180,ST184..CP199110-199309

SHADOW GRAY,TRIM1#

main73360-20491-J0iAT180,ST184..CP199110-199309

DARK BLUE,TRIM8#

main73360-20500-B0iST18#..LB199108-199110

SHADOW GRAY,TRIM1#

sub73360-20501

main73360-20500-J0iST184..LB199108-199110

DARK BLUE,TRIM8#

sub73360-20501

main73360-20501-B0iST18#..LB199110-199309

SHADOW GRAY,TRIM1#

main73360-20501-J0iST184..LB199110-199309

DARK BLUE,TRIM8#

main73360-20510-B0iST184..CVT199109-199309

SHADOW GRAY,TRIM1#

73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH

main73370-20140-02iAT180,ST184..CP198909-199007

RED,TRIM3#

sub73370-20141

main73370-20140-03iAT180,ST184..CP198909-199007

SHADOW GRAY,TRIM1#

sub73370-20141

main73370-20140-04iAT180,ST184..CP198909-199007

DARK BLUE,TRIM8#

sub73370-20141

main73370-20141-03iAT180,ST184..CP199007-199008

SHADOW GRAY,TRIM1#

sub73370-20142

main73370-20141-04iAT180,ST184..CP199007-199008

DARK BLUE,TRIM8#

sub73370-20142

main73370-20142-03iAT180,ST184..CP199008-199108

SHADOW GRAY,TRIM1#

main73370-20142-04iAT180,ST184..CP199008-199108

DARK BLUE,TRIM8#

main73370-20142-06iAT180,ST184..CP199008-199108

CHOCOLATE BROWN,TRIM4#

main73370-20150-02iST18#..LB198910-199007

RED,TRIM3#

sub73370-20151

main73370-20150-03iST18#..LB198909-199007

SHADOW GRAY,TRIM1#

sub73370-20151

main73370-20150-04iST18#..LB198910-199007

DARK BLUE,TRIM8#

sub73370-20151

main73370-20151-03iST18#..LB199007-199008

SHADOW GRAY,TRIM1#

sub73370-20152

main73370-20151-04iST184..LB199007-199008

DARK BLUE,TRIM8#

sub73370-20152

main73370-20152-03iST18#..LB199008-199108

SHADOW GRAY,TRIM1#

main73370-20152-04iST18#..LB199008-199108

DARK BLUE,TRIM8#

main73370-20152-06iST18#..LB199008-199108

CHOCOLATE BROWN,TRIM4#

main73370-20190-03iST184..CVT199006-199109

SHADOW GRAY,TRIM1#

main73370-20340-B0iAT180,ST184..CP199108-199110

SHADOW GRAY,TRIM1#

sub73370-20341

main73370-20340-J0iAT180,ST184..CP199108-199110

DARK BLUE,TRIM8#

sub73370-20341

main73370-20341-B0iAT180,ST184..CP199110-199309

SHADOW GRAY,TRIM1#

main73370-20341-J0iAT180,ST184..CP199110-199309

DARK BLUE,TRIM8#

main73370-20350-B0iST18#..LB199108-199110

SHADOW GRAY,TRIM1#

sub73370-20351

main73370-20350-J0iST184..LB199108-199110

DARK BLUE,TRIM8#

sub73370-20351

main73370-20351-B0iST18#..LB199110-199309

SHADOW GRAY,TRIM1#

main73370-20351-J0iST184..LB199110-199309

DARK BLUE,TRIM8#

main73370-20360-B0iST184..CVT199109-199309

SHADOW GRAY,TRIM1#

73380ABELT ASSY, REAR SEAT, INNER

main73380-20240-02iAT180,ST18#..CP,LB198909-199008

RED,TRIM3#

sub73380-20241

main73380-20240-03iAT180,ST18#..CP,LB198909-199010

SHADOW GRAY,TRIM1#

sub73380-20241

main73380-20240-04iAT180,ST18#..CP,LB198909-199010

DARK BLUE,TRIM8#

sub73380-20241

main73380-20240-16iAT180,ST18#..CP,LB199008-199010

CHOCOLATE BROWN,TRIM4#

sub73380-20241

main73380-20241-03iAT180,ST18#..CP,LB199010-199108

SHADOW GRAY,TRIM1#

main73380-20241-04iAT180,ST18#..CP,LB199010-199108

DARK BLUE,TRIM8#

main73380-20241-06iAT180,ST18#..CP,LB199010-199108

CHOCOLATE BROWN,TRIM8#

main73380-20280-03iST184..CVT199006-199109

SHADOW GRAY,TRIM1#,RH

main73380-20280-03iST184..CVT199109-199309

SHADOW GRAY,TRIM1#,RH SEAT

main73380-20370-B0iAT180,ST18#..CP,LB199108-199309

SHADOW GRAY,TRIM1#

main73380-20370-J0iAT180,ST184..CP,LB199108-199309

DARK BLUE,TRIM8#

main73480-20020-03iST184..CVT199006-199109

SHADOW GRAY,TRIM1#,LH

main73480-20020-03iST184..CVT199109-199309

SHADOW GRAY,TRIM1#,LH SEAT

73709BRACKET SUB-ASSY, TETHER ANCHOR

main73709-20010iAT180,ST184..CP..CND198909-199309

main73709-20020iST18#..LB..CND198909-199309

9016140015

main90161-40015

9017911010

main90179-11010

9018904118

main90189-04118

9046706118

main90467-06118

9165160616

main91651-60616

15 parts on this diagram · 2 diagrams in section
