PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

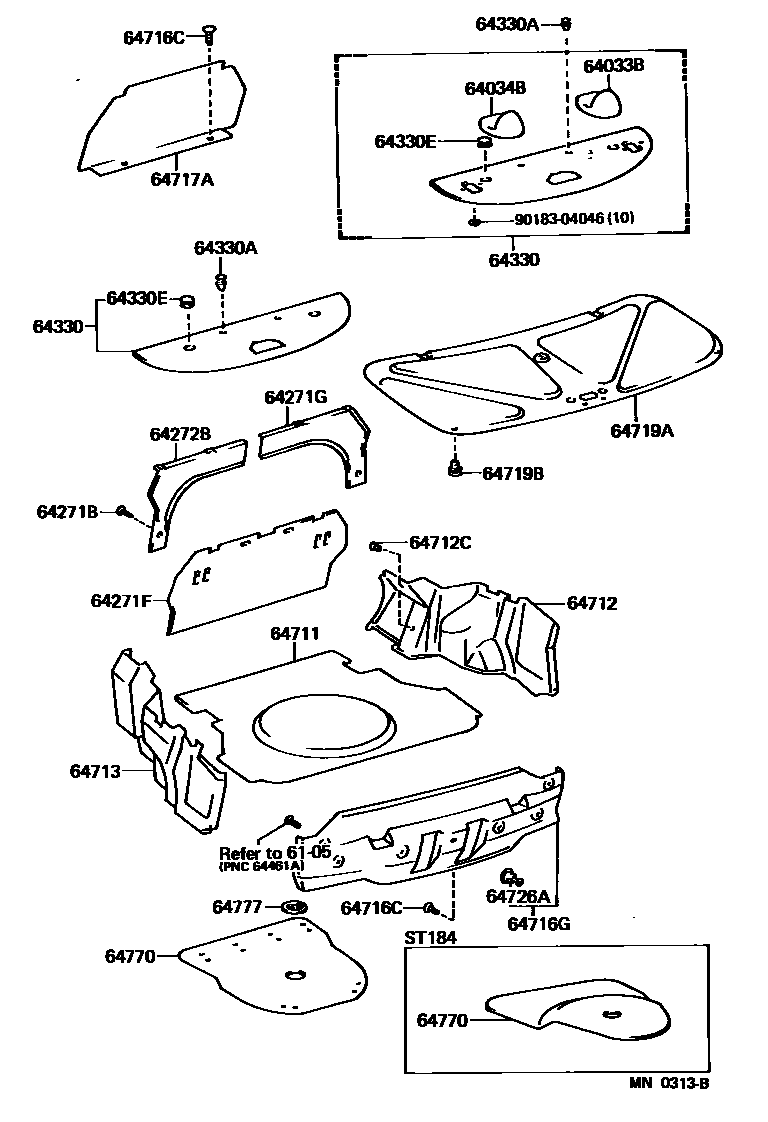

Parts diagram
6105
64033BGRILLE SUB-ASSY, REAR SPEAKER, RH
main64383-20120-02i198909-199008
RED,TRIM3#
main64383-20120-03i198909-199309
SHADOW GRAY,TRIM1#
main64383-20120-04i198909-199309
DARK BLUE,TRIM8#
main64383-20120-16i199008-199108
CHOCOLATE BROWN,TRIM4#
64034BGRILLE SUB-ASSY, REAR SPEAKER, LH
main64383-20120-02i198909-199008
RED,TRIM3#
main64383-20120-03i198909-199309
SHADOW GRAY,TRIM1#
main64383-20120-04i198909-199309
DARK BLUE,TRIM8#
main64383-20120-16i199008-199108
CHOCOLATE BROWN,TRIM4#
64271BCLIP(FOR ROOM PARTITION BOARD)
main90467-06016-58i198909-199008
GRAY,TRIM1#,3#,8#
sub90467-06016
sub90467-07049
main90467-06016-58i199008-199309
GRAY,TRIM1#,4#,8#
sub90467-06016
sub90467-07049
64271FTRIM, ROOM PARTITION
main64271-20230i198909-199309
64271GBOARD, ROOM PARTITION, RH
main64271-20180-03i199008-199309
GRAY,TRIM1#,4#,8#
main64271-20180-03i198910-199008
GRAY,TRIM1#,3#,8#
64272BBOARD, ROOM PARTITION, LH
main64272-20020-03i198910-199008
GRAY,TRIM1#,3#,8#
main64272-20020-03i199008-199309
GRAY,TRIM1#,4#,8#
64330PANEL ASSY, PACKAGE TRAY TRIM
main64330-2B190-02i198909-199008
RED,TRIM3#
sub64330-2B190
main64330-2B190-03i198909-199309
SHADOW GRAY,TRIM1#
sub64330-2B190
main64330-2B190-04i198909-199309
DARK BLUE,TRIM8#
sub64330-2B190
main64330-2B190-16i199008-199108
CHOCOLATE BROWN,TRIM4#
sub64330-2B190
main64330-2B200-02i198909-199008
RED,TRIM3#
sub64330-2B200
main64330-2B200-03i198909-199108
SHADOW GRAY,TRIM1#
sub64330-2B200
main64330-2B200-04i198909-199108
DARK BLUE,TRIM8#
sub64330-2B200
main64330-2B200-16i199008-199108
CHOCOLATE BROWN,TRIM4#
sub64330-2B200
main64330-2B220-03i199008-199108
W(SPOILER),SHADOW GRAY,TRIM1#
sub64330-2B220
main64330-2B220-03i199108-199309
SHADOW GRAY,TRIM1#
sub64330-2B220
main64330-2B220-04i199108-199309
DARK BLUE,TRIM8#
sub64330-2B220
main64330-2B220-04i199008-199108
W(SPOILER),DARK BLUE,TRIM8#
sub64330-2B220
main64330-2B220-16i199008-199108
W(SPOILER),CHOCOLATE BROWN,TRIM4#
sub64330-2B220
main64330-2B230-02i198909-199008
W(TWITTER SPEAKER),RED,TRIM3#
sub64330-2B230
main64330-2B230-03i198909-199108
W(TWITTER SPEAKER),SHADOW GRAY,TRIM1#
sub64330-2B230
main64330-2B230-04i198909-199108
W(TWITTER SPEAKER),DARK BLUE,TRIM8#
sub64330-2B230
main64330-2B230-16i199008-199108
W(TWITTER SPEAKER),CHOCOLATE BROWN,TRIM4#
sub64330-2B230
main64330-2B240-03i199108-199211
W(TWITTER SPEAKER),SHADOW GRAY,TRIM1#
sub64330-2B240
main64330-2B240-03i199008-199108
W(SPOILER & TWITTER SPEAKER),SHADOW GRAY,TRIM1#
sub64330-2B240
main64330-2B240-04i199108-199211
W(TWITTER SPEAKER),DARK BLUE,TRIM8#
sub64330-2B240
main64330-2B240-04i199008-199108
W(SPOILER & TWITTER SPEAKER),DARK BLUE,TRIM8#
sub64330-2B240
main64330-2B240-16i199008-199108
W(SPOILER & TWITTER SPEAKER),CHOCOLATE BROWN,TRIM4#
sub64330-2B240
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
main90467-08037-13i198909-199309
SHADOW GRAY,TRIM1#
sub90467-08037
main90467-08037-22i198909-199008
RED,TRIM3#
sub90467-08037
main90467-08037-24i198909-199108
DARK BLUE,TRIM8#
sub90467-08037
main90467-08037-46i199008-199108
SABLE,TRIM4#
sub90467-08037
main90467-08037-J0i199108-199309
DARK BLUE,TRIM8#
sub90467-08037
main90467-08046-B1i199009-199108
W(SPOILER & TWITTER SPEAKER),SHADOW GRAY,TRIM1#
sub90467-08046
sub90467-08037
64330EPLUG(FOR PACKAGE TRAY TRIM PANEL)
main90950-01436-13i198909-199009
GRAY,TRIM1#
sub90950-01436
sub64353-50010
main90950-01436-26i199008-199108
SABLE,TRIM4#
sub90950-01436
sub64353-50010
main90950-01436-32i198909-199008
RED,TRIM3#
sub90950-01436
sub64353-50010
main90950-01436-B1i199009-199309
SHADOW GRAY,TRIM1#
sub90950-01436
sub64353-50010
main90950-01436-J0i198909-199309
DARK BLUE,TRIM8#
sub90950-01436
sub64353-50010
64711MAT, LUGGAGE COMPARTMENT FLOOR
main64711-20630-03i199008-199108
GRAY,TRIM1#,4#,8#
main64711-20630-03i198909-199008
GRAY,TRIM1#,3#,8#
main64711-20630-C0i199108-199309
BLACK,TRIM1#,8#
main64711-20640-03i199008-199108
GRAY,TRIM1#,4#,8#
main64711-20640-03i198909-199008
GRAY,TRIM1#,3#,8#
main64711-20640-C0i199108-199309
BLACK,TRIM1#,8#
main64711-20730-B0i199108-199309
SHADOW GRAY,TRIM1#,8#
main64711-20780-01i199006-199109
BLACK,TRIM1#
main64711-20790-01i199109-199309
BLACK,TRIM1#
64712COVER, LUGGAGE COMPARTMENT TRIM, RH
main64712-20170-03i198909-199008
GRAY,TRIM1#,3#,8#
main64712-20170-03i199008-199108
GRAY,TRIM1#,4#,8#
main64712-20170-C0i199108-199309
BLACK,TRIM1#,8#
main64712-20180-01i199006-199309
BLACK,TRIM1#
64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)
main90467-06077i199009-199309
main90467-08056-01i199006-199009
BLACK,TRIM1#
sub90467-08056
main90467-08056-23i199008-199108
GRAY,TRIM1#,4#,8#
sub90467-08056
main90467-08056-23i198909-199008
GRAY,TRIM1#,3#,8#
sub90467-08056
main90467-08056-C0i199108-199309
BLACK,TRIM1#,8#
sub90467-08056
64713COVER, LUGGAGE COMPARTMENT TRIM, LH
main64713-20170-03i199008-199108
GRAY,TRIM1#,4#,8#
main64713-20170-03i198909-199008
GRAY,TRIM1#,3#,8#
main64713-20170-C0i199108-199309
BLACK,TRIM1#,8#
main64713-20180-01i199006-199309
BLACK,TRIM1#
64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
main90467-07053-01i199006-199309
BLACK,TRIM1#
sub90467-07053
main90467-07053-01i199108-199309
BLACK,TRIM1#,8#
sub90467-07053
main90467-07053-23i198909-199008
GRAY,TRIM1#,3#,8#
sub90467-07053
main90467-07053-23i199008-199108
GRAY,TRIM1#,4#,8#
sub90467-07053
64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR
main64716-20320-03i198909-199008
GRAY,TRIM1#,3#,8#
main64716-20320-03i199008-199108
GRAY,TRIM1#,4#,8#
main64716-20320-C0i199108-199309
BLACK,TRIM1#,8#
main64716-20440-01i199006-199309
BLACK,TRIM1#
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
main64717-20250-03i198909-199008
GRAY,TRIM1#,3#,8#
main64717-20250-03i199008-199108
GRAY,TRIM1#,4#,8#
main64717-20250-C0i199108-199309
BLACK,TRIM1#,8#
64719ACOVER, LUGGAGE COMPARTMENT DOOR
main64719-20040-03i198909-199008
GRAY,TRIM1#,3#,8#
main64719-20040-03i199008-199108
GRAY,TRIM1#,4#,8#
main64719-20070-01i199006-199109
BLACK,TRIM1#
main64719-20080-01i199006-199109
W(REAR SPOILER),BLACK,TRIM1#
main64719-20080-01i199109-199309
BLACK,TRIM1#
main64719-20090-03i199008-199108
W(REAR SPOILER),GRAY,TRIM1#,4#,8#
main64719-20090-C0i199108-199309
BLACK,TRIM1#,8#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
main90467-07059-01i199006-199109
BLACK,TRIM1#
sub90467-07059
main90467-07059-03i198909-199008
GRAY,TRIM1#,3#,8#
sub90467-07059
main90467-07059-03i199008-199108
GRAY,TRIM1#,4#,8#
sub90467-07059
main90467-07059-22i199108-199309
BLACK,TRIM1#,8#
sub90467-07059
main90467-07059-22i199109-199309
BLACK,TRIM1#
sub90467-07059
64726ACLIP, LUGGAGE TRIM, REAR
main64726-20020-01i199006-199309
BLACK,TRIM1#
sub64726-20020
main64726-20020-01i199108-199309
BLACK,TRIM1#,8#
sub64726-20020
main64726-20020-03i199008-199108
GRAY,TRIM1#,4#,8#
sub64726-20020
main64726-20020-03i198909-199008
GRAY,TRIM1#,3#,8#
sub64726-20020
64770COVER ASSY, SPARE WHEEL
main64770-20080i198909-199309
main64770-20090i198909-199309
64777CLAMP, SPARE WHEEL COVER
main64777-32030i198909-199309
9018304046
main90183-04046

23 parts on this diagram · 2 diagrams in section
