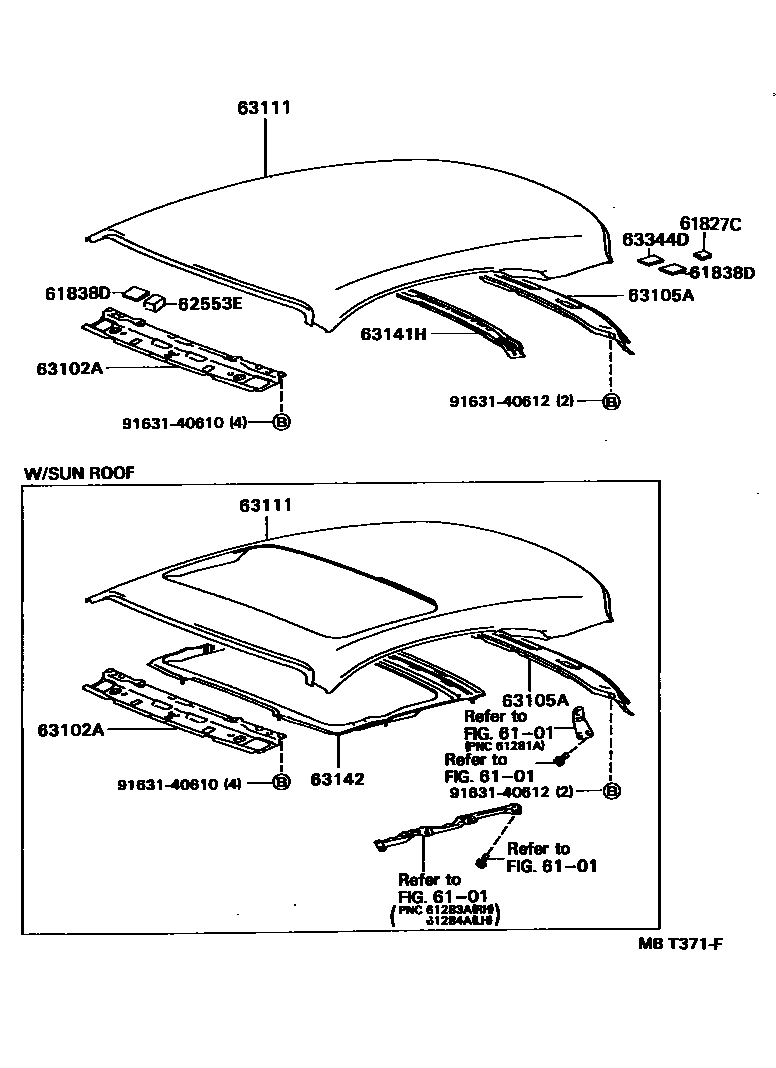

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1 0004 1

6101

61827CPLATE, NOISE CONTROL, NO.4

main61827-14010iST18#..LB¥670198909-199309

61838DPLATE, NOISE CONTROL, NO.5

main61838-20030iAT180,ST184..CP,CVT¥510198909-199309

62553EPAD, PILLAR, NO.3

main62553-20050iAT180,ST18#¥310198909-199309

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-20190iAT180,ST184¥3,720198909-198910

sub63102-20900¥3,730

main63102-20900iAT180,ST18#¥3,730198910-199309

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-20900iST18#..LB¥9,500198909-199309

63111PANEL, ROOF

main63111-20390iAT180,ST184..CP,CVT¥34,400198909-199309

main63111-20400iAT180,ST184..CP¥34,400198909-199309

W(SUN ROOF)

main63111-20410iST18#..LB¥32,800198909-199309

main63111-20420iST18#..LB¥32,800198909-199309

W(SUN ROOF)

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-20120iAT180,ST184..CP¥3,230198909-199309

main63141-20130iST18#..LB¥3,230198909-199309

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-20060iAT180,ST18#..CP,LB¥11,800198909-199309

63344DPAD, ROOF SILENCER, NO.4

main63344-20050iST18#..LB¥710198909-198912

9163140610

main91631-40610¥120

9163140612

main91631-40612¥120

12 parts on this diagram · 4 diagrams in section
