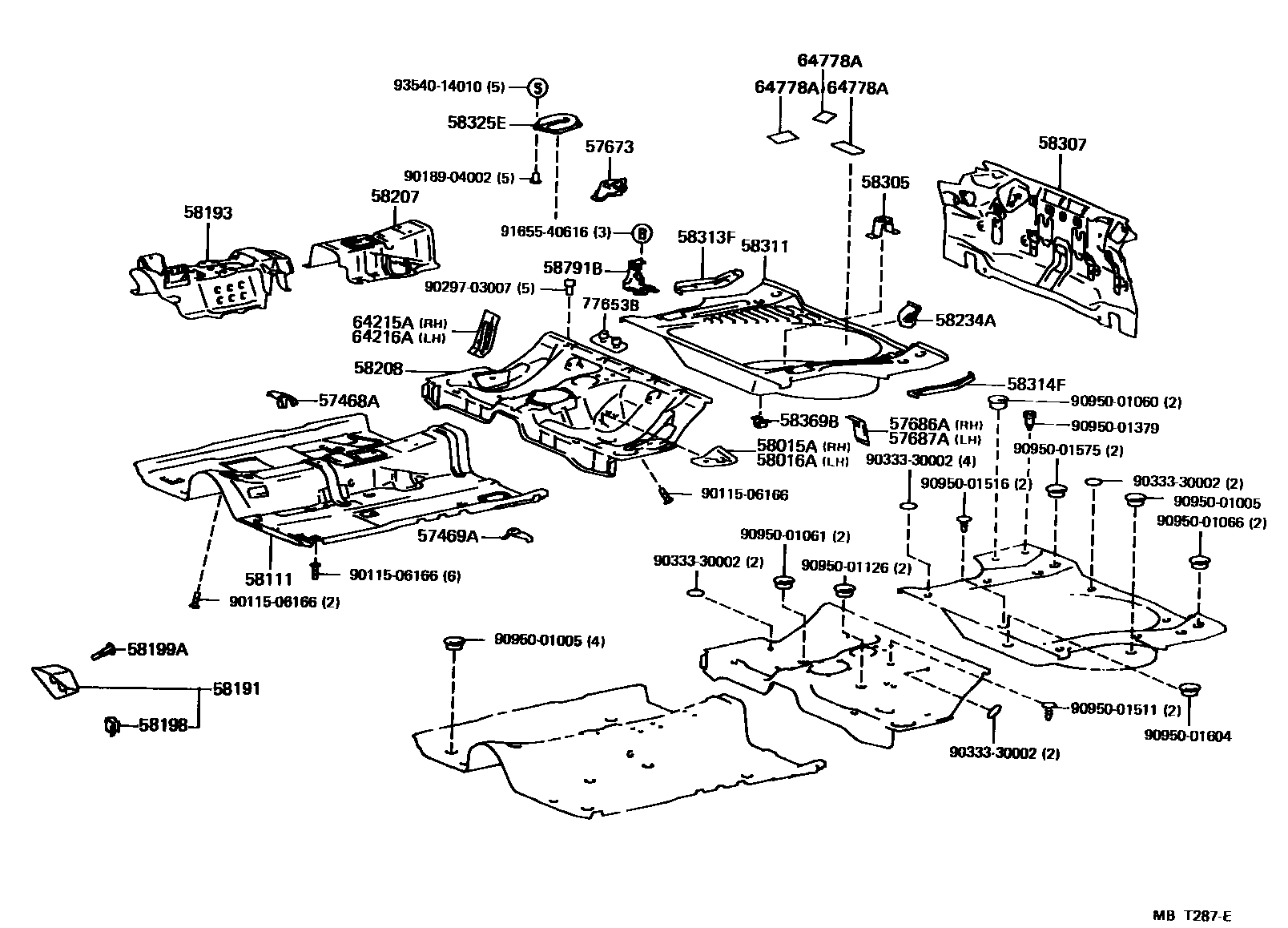

FLOOR PAN & LOWER BACK PANEL
57468ABRACKET, FRONT SEAT, OUTSIDE, REAR RH
57469ABRACKET, FRONT SEAT, OUTSIDE, REAR LH
57673BRACKET, REAR SEATBACK HINGE MOUNTING
57686ABRACKET, FUEL TANK MOUNTING, REAR RH
57687ABRACKET, FUEL TANK MOUNTING, REAR LH
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58111PAN, FRONT FLOOR
58191FOOTREST, FRONT FLOOR
58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING
58198CLIP, FOOTREST
58199ACLIP, FOOTREST, NO.2
58207BRACKET SUB-ASSY, PARKING BRAKE CABLE, NO.1
58208PAN, CENTER FLOOR
58234ABRACKET, EXHAUST PIPE MOUNTING, INNER
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58369BBRACKET, FUEL TUBE, NO.3
58791BCARRIER, JACK
64215AEXTENSION, REAR FLOOR TO PACKAGE TRAY, RH
64216AEXTENSION, REAR FLOOR TO PACKAGE TRAY, LH
64778APROTECTOR, SPARE WHEEL
W(135/70 D16 TEMPOLARY TIRE)
W/O(TEMPOLARY TIRE)
77653BCUSHION, FUEL TANK, NO.3
9011506166
9018904002
9029703007
9033330002
9095001005
9095001060
9095001061
9095001066
9095001126
9095001379
9095001511
9095001516
9095001575
9095001604
9165540616
9354014010
43 parts on this diagram · 4 diagrams in section
