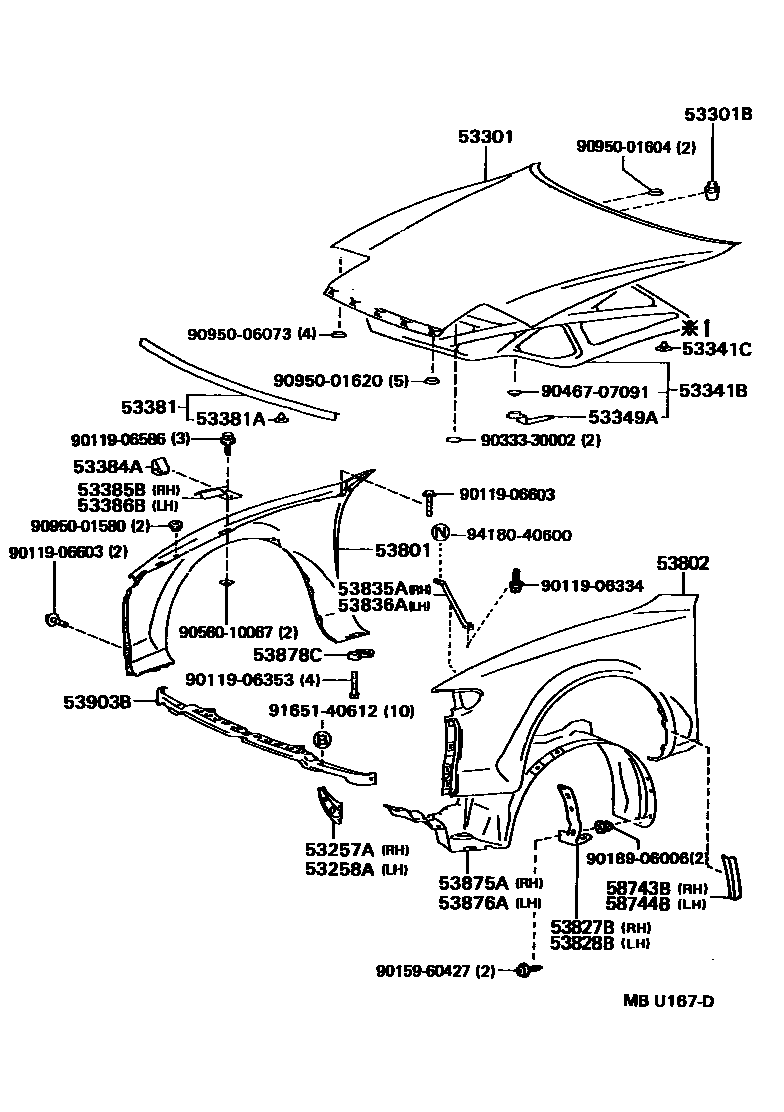

HOOD & FRONT FENDER

0001 1 0002 1

53257ABRACKET, FRONT END PANEL MOUNTING, RH

main53257-20010iAT180,ST18#¥820198909-199309

53258ABRACKET, FRONT END PANEL MOUNTING, LH

main53258-20010iAT180,ST18#¥820198909-199309

53301HOOD SUB-ASSY

main53301-20320iST184..CVT¥48,800198909-199109

main53301-20340iST185¥48,800198910-199108

main53301-20410iAT180,ST184..CP,LB¥50,500199108-199309

main53301-20430iST185¥50,500199108-199309

53301BCUSHION, HOOD BUMPER

main90541-09055iAT180,ST18#¥260198909-198911

sub90541-09043¥260

main90541-09077iAT180,ST18#¥260198911-199309

sub90541-09001¥230

53341BINSULATOR, HOOD

main53341-20170iST184¥16,800198909-199103

sub53341-20171¥16,700

main53341-20171iST184¥16,700199103-199309

main53341-20190iST185¥15,500198910-199309

53341CCLIP(FOR HOOD INSULATOR)

main90467-08081iST184¥100198909-199309

main90467-08081iST185¥100198910-199309

TYPE A

main90467-11035iST185¥100198910-199309

TYPE B

53349ARETAINER, HOOD INSULATOR

main53349-20020iST18#¥300198909-199309

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-20110iAT180,ST18#¥1,460198909-199309

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iAT180,ST18#¥100198909-199309

53384ABUMPER, FENDER TO HOOD

main53384-20030iAT180,ST18#¥450198909-199309

53385BBRACKET, FENDER TO HOOD BUMPER, RH

main53385-14010iAT180,ST18#¥270198909-199309

53386BBRACKET, FENDER TO HOOD BUMPER, LH

main53386-14010iAT180,ST18#¥270198909-199309

53801FENDER SUB-ASSY, FRONT RH

main53801-2B150iAT180,ST184..(CP,LB)..NOB¥40,400198909-199309

main53801-2B170iST18#..WIB¥40,400198909-199309

main53801-2B180iST184..CVT¥40,400199006-199309

53802FENDER SUB-ASSY, FRONT LH

main53802-2B150iAT180,ST184..(CP,LB)..NOB¥40,400198909-199309

main53802-2B170iST18#..WIB¥40,400198909-199309

main53802-2B180iST184..CVT¥40,400199006-199309

53827BPROTECTOR, FRONT FENDER SIDE PANEL

main53827-20020iAT180,ST184..NOB¥3,410198909-199309

53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-20020iAT180,ST184..NOB¥3,410198909-199309

53835ABRACE, FRONT FENDER TO APRON, RH

main53835-20060iAT180,ST18#¥750198909-199309

53836ABRACE, FRONT FENDER TO APRON, LH

main53835-20060iAT180,ST18#¥750198909-199309

53875ALINER, FRONT FENDER, RH

main53875-20170iAT180,ST184..NOB¥6,700198909-199109

sub53875-20H00¥6,700

main53875-20190iAT180,ST184..(CP,LB)..NOB¥6,700199108-199309

main53875-20200iST184..GTS¥6,600198909-199108

main53875-20210iST18#..WIB¥6,600198910-199309

sub53875-20200¥6,600

53876ALINER, FRONT FENDER, LH

main53876-20180iST184..CVT¥6,700198909-199109

sub53876-20H00¥6,700

main53876-20200iAT180,ST184..NOB¥6,700199108-199309

main53876-20210iST184..GTS¥6,600198909-199108

main53876-20220iST185¥6,600198910-199309

sub53876-20210¥6,600

53878CSPACER, FRONT FENDER

main53878-20040iAT180,ST18#¥320198909-199309

53903BPANEL SUB-ASSY, FRONT END

main53903-20010iAT180,ST18#¥10,100198909-199309

58743BPROTECTER, FRONT FENDER PANEL, RH

main58743-20030iAT180,ST18#..CP,LB¥240198909-199309

58744BPROTECTER, FRONT FENDER PANEL, LH

main58743-20030iAT180,ST18#..CP,LB¥240198909-199309

9011906334

main90119-06334¥120

9011906353

main90119-06353¥160

9011906586

main90119-06586¥160

9011906603

main90119-06603¥120

9015960427

main90159-60427¥120

9018906006

main90189-06006¥100

9033330002

main90333-30002¥70

9046707091

main90467-07091¥140

9056010067

main90560-10067¥350

9095001580

main90950-01580¥230

9095001604

main90950-01604¥110

9095001620

main90950-01620¥110

9095006073

main90950-06073¥190

9165140612

main91651-40612¥70

9418040600

main94180-40600¥90

39 parts on this diagram · 2 diagrams in section
