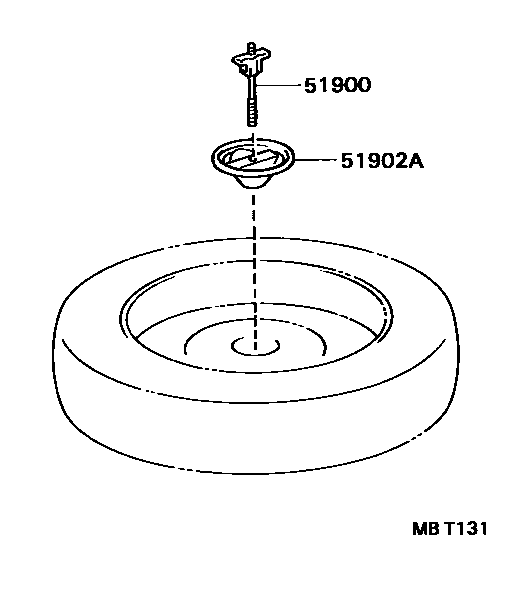

SPARE WHEEL CARRIER

51900CARRIER ASSY, SPARE WHEEL

main51900-20040iST184..GT198909-199108

main51900-20050iST185198910-199108

main51900-20080iST184..GTS198909-199108

main51900-20120iST185198910-199108

W(T135/70 D16 SPARE TIRE)

main51900-20130iAT180;ST184..(CP,LB)..USA199108-199109

main51900-20140iST184..GT..CND199108-199309

main51900-20150iST184..GTS..USA199108-199309

W/O(TEMPOLARY TIRE)

51902ACOVER SUB-ASSY, SPARE WHEEL

main51902-20010iST18#198909-199108

2 parts on this diagram · 1 diagram in section
