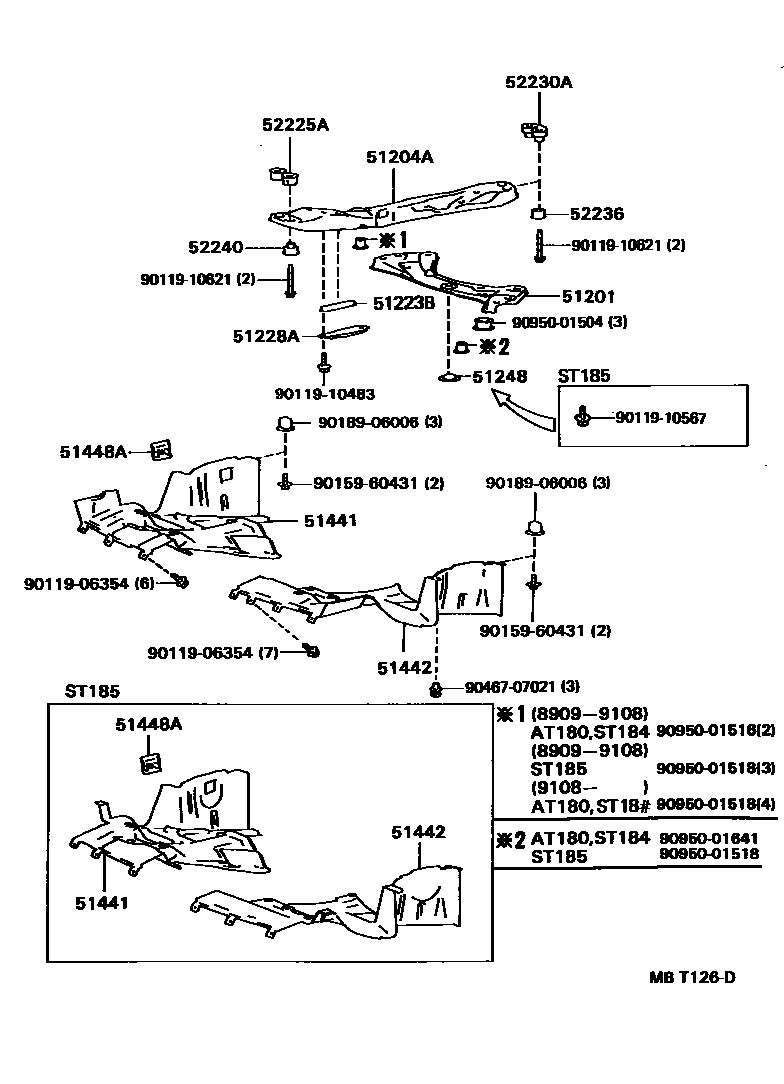

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-20230iST185¥17,100198910-199309

main51201-20240iAT180,ST184¥17,100198909-199309

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-20090iST185¥27,300198910-199309

main51204-20100iAT180,ST184¥21,800198909-199104

sub51204-20101¥21,300

main51204-20101iAT180,ST184¥21,300199104-199309

51223BCOVER, ENGINE MOUNTING HOLE

main51223-20020iAT180,ST184..CP,LB¥330199108-199208

L=102.5

sub51223-20030¥330

main51223-20030iAT180,ST184¥330198909-199309

L=104

main51223-20030iAT180,ST184¥330199208-199309

L=102.5

51228AWEIGHT, FRONT SUSPENSION MEMBER DAMPER, LH

main51228-20050iAT180,ST18#¥4,460198909-199309

51248SPACER, FLAME CROSSMEMBER

main51248-32010iAT180,ST184¥190198909-199309

51441COVER, ENGINE UNDER, NO.1

main51408-20030iST185¥11,900198910-199103

sub51408-20031¥11,700

main51408-20031iST185¥11,700199103-199309

main51441-20230iAT180,ST184¥8,000198909-199103

sub51441-20231¥7,800

main51441-20231iAT180,ST184¥7,800199103-199309

main51441-20290iST184..GTS¥8,600199108-199309

51442COVER, ENGINE UNDER, NO.2

main51409-20040iST185¥10,300198910-199103

sub51409-20041¥10,100

main51409-20041iST185¥10,100199103-199309

main51442-20220iAT180,ST184..MTM¥6,900198909-199103

sub51442-20222¥6,900

main51442-20222iAT180,ST184..MTM¥6,900199103-199309

main51442-20230iAT180,ST184..ATM¥6,000198909-199103

sub51442-20232¥5,900

main51442-20232iAT180,ST184..ATM¥5,900199103-199309

main51442-20340iST184..ATM..GTS¥6,900199108-199309

main51442-20350iST184..MTM..GTS¥7,800199108-199309

51448ACOVER, ENGINE SIDE UNDER, RH

main51448-20030iAT180,ST18#¥650198909-199309

52225ACUSHION, CENTER MEMBER MOUNTING, FRONT UPPER

main52225-20040iAT180,ST184¥1,670198909-199309

main52225-20050iST185¥1,670198910-199309

52230ACUSHION ASSY, CENTER MEMBER MOUNTING, REAR UPPER

main52230-20050iAT180,ST184¥2,050198909-199309

main52230-20060iST185¥2,050198910-199309

52236CUSHION, CENTER MEMBER MOUNTING, REAR LOWER

main52236-20040iAT180,ST184¥580198909-199309

main52236-20050iST185¥660198910-199309

52240CUSHION ASSY, CENTER MEMBER MOUNTING, FRONT LOWER

main52240-20040iAT180,ST184¥680198909-199309

main52240-20050iST185¥2,050198910-199309

9011906354

main90119-06354¥120

9011910483

main90119-10483¥120

9011910567

main90119-10567¥190

9011910621

main90119-10621¥260

9015960431

main90159-60431¥70

9018906006

main90189-06006¥100

9046707021

main90467-07021¥130

9095001504

main90950-01504¥250

9095001516

main90950-01516¥190

9095001518

main90950-01518¥110

9095001641

main90950-01641¥200

23 parts on this diagram · 2 diagrams in section
