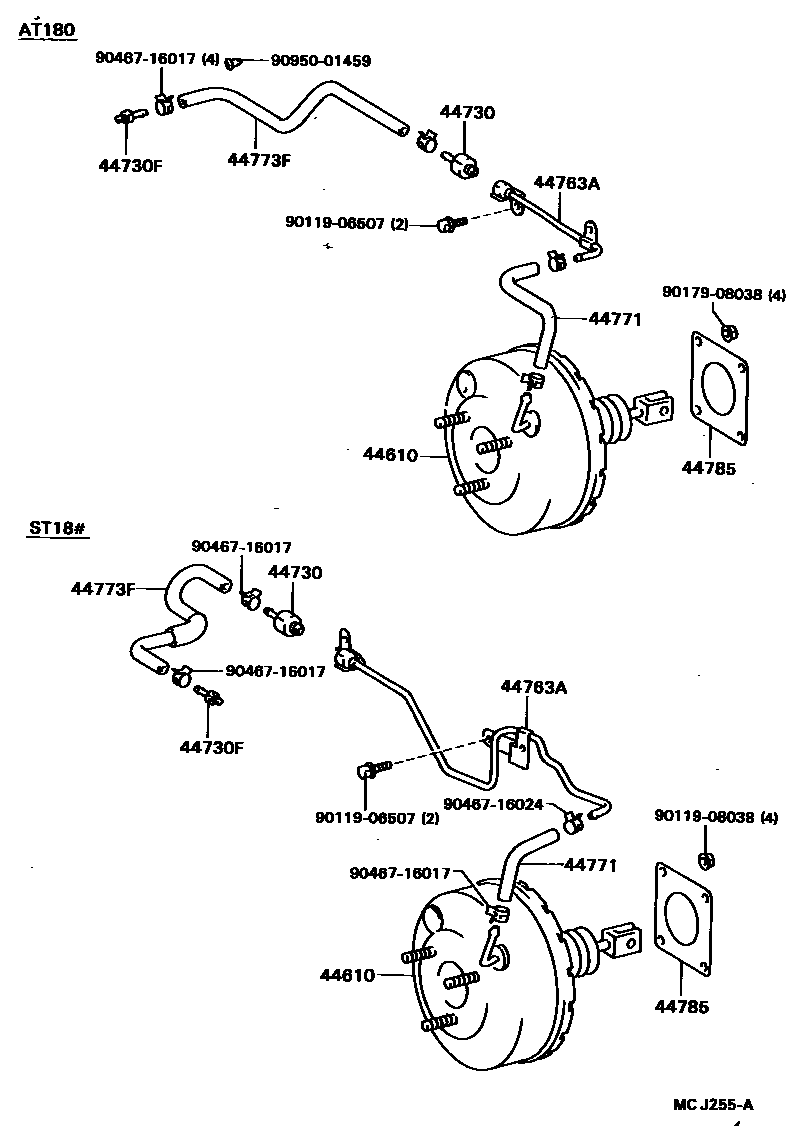

BRAKE BOOSTER & VACUUM TUBE

44610BOOSTER ASSY, BRAKE

main44610-2B600iAT180198909-199002

sub44610-2B601

main44610-2B601iAT180199002-199108

main44610-2B620iST185198910-199002

sub44610-2B621

main44610-2B621iST185199002-199309

main44610-2B650iST185198910-199309

W(*66)

main44610-2B670iST184..CVT198910-199309

W(*66)

main44610-2B670iST184198909-199108

main44610-2D110iAT180199108-199309

main44610-2D190iST184..CND199108-199309

main44610-2D200iST184..(CP,LB)..USA199108-199309

main44610-2D220iST184..(CP,LB)..USA199108-199309

W(*66)

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20100iAT180,ST18#198909-199309

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90404-51046iST185198910-199309

main90404-51319iAT180,ST184198909-199309

44763ATUBE, HOSE TO HOSE, NO.1

main44763-20130iST185198910-199309

main44763-20140iAT180198909-199309

main44763-20150iST184198909-199309

44771HOSE, VACUUM TUBE CONNECTOR

main44771-20010iST18#198909-199309

main44771-20020iAT180198909-199309

44773FHOSE, UNION TO CHECK VALVE

main44773-20620iST184198909-199109

main44773-20640iAT180198909-199309

main44773-20650iST185198910-199309

main44773-20800iST184..CP,LB199108-199309

44785GASKET, BRAKE BOOSTER

main44785-32010iAT180,ST18#198909-199309

9011906507

main90119-06507

9011908038

main90119-08038

9017908038

main90179-08038

9046716017

main90467-16017

9046716024

main90467-16024

9095001459

main90950-01459

13 parts on this diagram · 1 diagram in section
