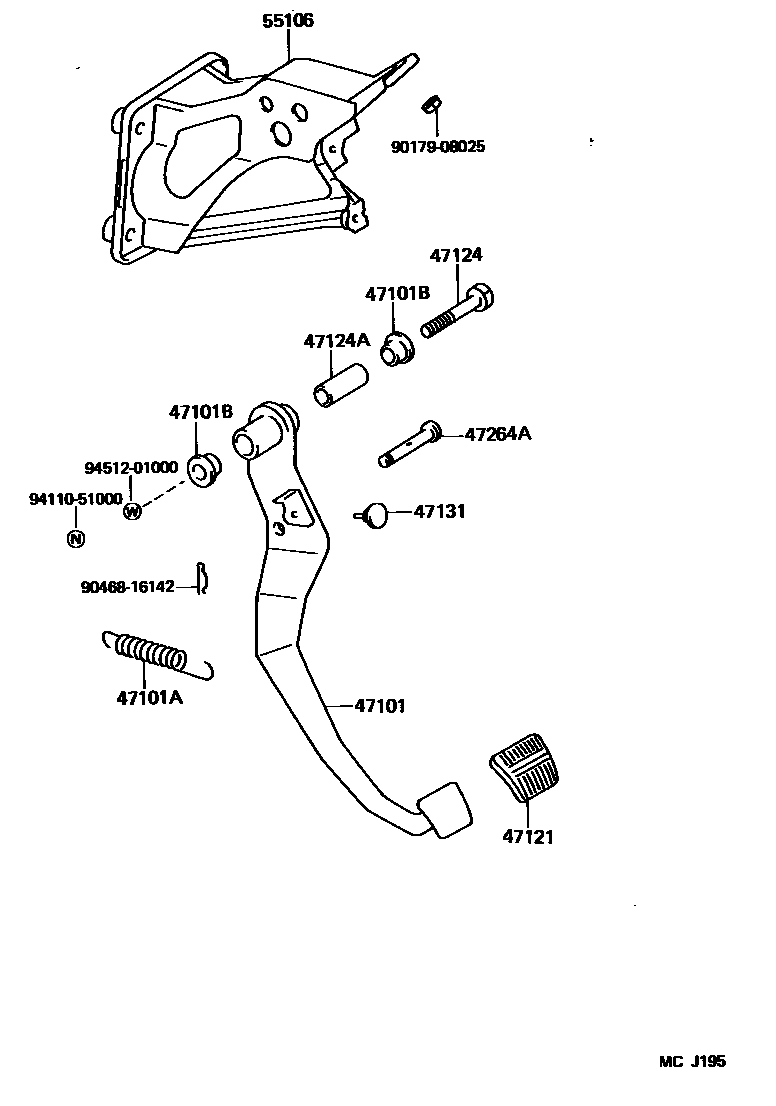

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-20430iAT180,ST18#..MTM198909-199309

main47101-20440iAT180,ST184..ATM198909-199309

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14029iAT180,ST18#198909-199309

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iAT180,ST18#198909-199309

47121PAD, BRAKE PEDAL

main31321-14020iAT180,ST18#..MTM198909-199309

main47121-14010iAT180,ST184..ATM198909-199309

47124SHAFT, BRAKE PEDAL

main90101-10015iAT180,ST18#198909-199309

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iAT180,ST18#198909-199309

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06032iAT180,ST18#198909-199309

sub90541-06036

47264APIN(FOR PUSH ROD)

main47148-20020iST184..CVT199001-199309

main90249-08221iAT180,ST18#198909-199001

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-20330iAT180,ST18#198909-199309

9017908025

main90179-08025

9046816142

main90468-16142

9411051000

main94110-51000

9451201000

main94512-01000

13 parts on this diagram · 1 diagram in section
