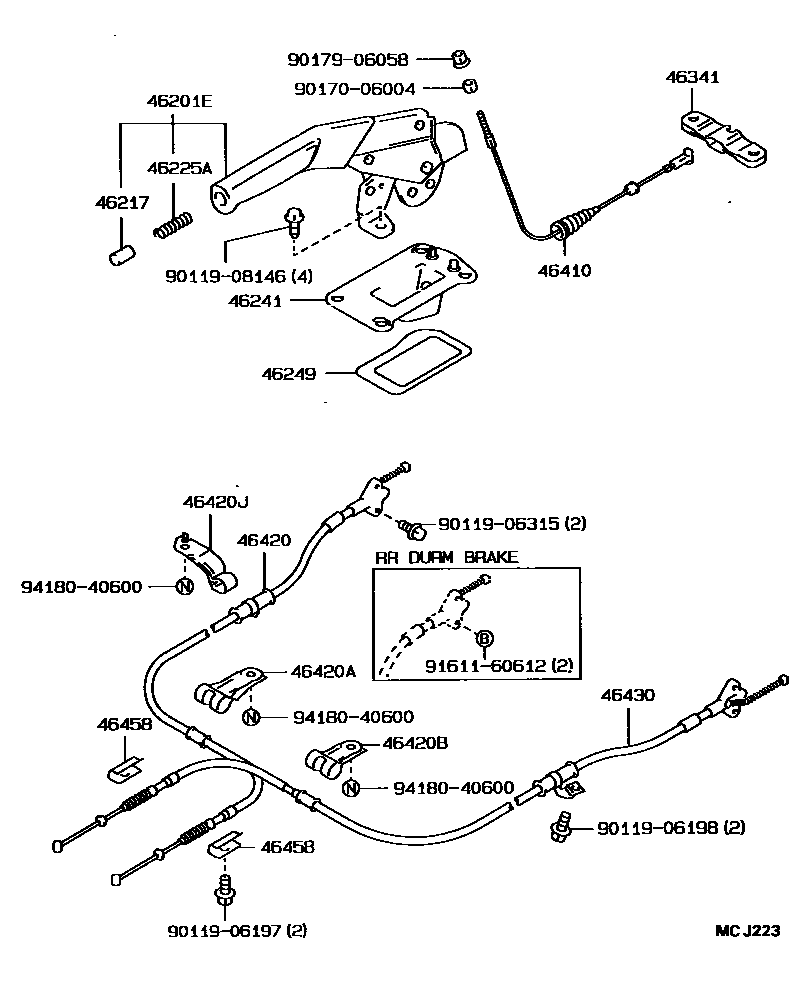

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-20220-02iAT180,ST184..(CP,LB)..NOB198909-199008

RED,TRIM3#

sub46201-20220

main46201-20220-03iAT180;ST184..CVT198909-199309

SHADOW GRAY,TRIM1#

sub46201-20220

main46201-20220-04iAT180198909-199309

DARK BLUE,TRIM8#

sub46201-20220

main46201-20220-16iAT180,ST184..(CP,LB)..NOB199008-199108

CHOCOLATE BROWN,TRIM4#

sub46201-20220

main46201-20240-02iST184..GTS198909-199008

RED,TRIM3#

sub46201-20240

main46201-20240-03iST184198909-199309

SHADOW GRAY,TRIM1#

sub46201-20240

main46201-20240-04iST184..CP,LB198909-199309

DARK BLUE,TRIM8#

sub46201-20240

main46201-20240-26iST184..GTS199008-199108

CHOCOLATE BROWN,TRIM4#

sub46201-20240

main46201-20260-02iST185198910-199008

RED,TRIM3#

sub46201-20260

main46201-20260-03iST185198910-199309

SHADOW GRAY,TRIM1#

sub46201-20260

main46201-20260-04iST185198910-199108

DARK BLUE,TRIM8#

sub46201-20260

main46201-20260-16iST185199008-199108

CHOCOLATE BROWN,TRIM4#

sub46201-20260

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-12020-02iAT180,ST18#..CP,LB198909-199008

MAROON,TRIM3#

sub46217-12020

sub46217-16030

main46217-12020-03iAT180,ST18#198909-199009

SHADOW GRAY,TRIM1#

sub46217-12020

sub46217-16030

main46217-12020-04iAT180,ST18#..CP,LB198909-199108

DEEP BLUE,TRIM8#

sub46217-12020

sub46217-16030

main46217-12020-56iAT180,ST18#..CP,LB199008-199108

CHOCHLATE BROWN,TRIM4#

sub46217-12020

sub46217-16030

main46217-12020-B2iAT180,ST18#199009-199309

SHADOW GRAY,TRIM1#

sub46217-12020

sub46217-16030

main46217-12020-J0iAT180,ST184..CP,LB199108-199309

DARK BLUE,TRIM8#

sub46217-12020

sub46217-16030

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10069iAT180,ST18#198909-199309

46241BOOT, PARKING BRAKE LEVER

main46241-20100iAT180,ST184198909-199309

main46241-20110iST185198910-199309

46249SHIELD, PARKING BRAKE HOLE

main46249-20030iAT180,ST18#198909-199309

46341EQUALIZER, PARKING BRAKE

main46341-16020iAT180,ST18#198909-199309

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-20340iAT180,ST184198909-199309

main46410-20360iST185198910-199309

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-20170iST185198910-199309

main46420-20280iAT180198909-199309

main46420-20290iST184..CP,LB198909-199309

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01551iAT180,ST184198909-199309

main90949-01554iST185198910-199309

RH

main90949-01555iST185198910-199309

LH

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main90949-01552iAT180,ST184198909-199309

main90949-01556iST185198910-199309

RH

main90949-01557iST185198910-199309

LH

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main90949-01553iAT180,ST184198909-199309

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-20260iST185198910-199309

main46430-20380iAT180,ST184..NOB198909-199309

main46430-20390iST184..GTS198909-199309

46458RETAINER, CABLE

main46458-28010iAT180,ST18#199109-199309

main46458-50010iAT180,ST18#198909-199109

9011906197

main90119-06197

9011906198

main90119-06198

9011906315

main90119-06315

9011908146

main90119-08146

9017006004

main90170-06004

9017906058

main90179-06058

9161160612

main91611-60612

9418040600

main94180-40600

21 parts on this diagram · 3 diagrams in section
