STEERING COLUMN & SHAFT

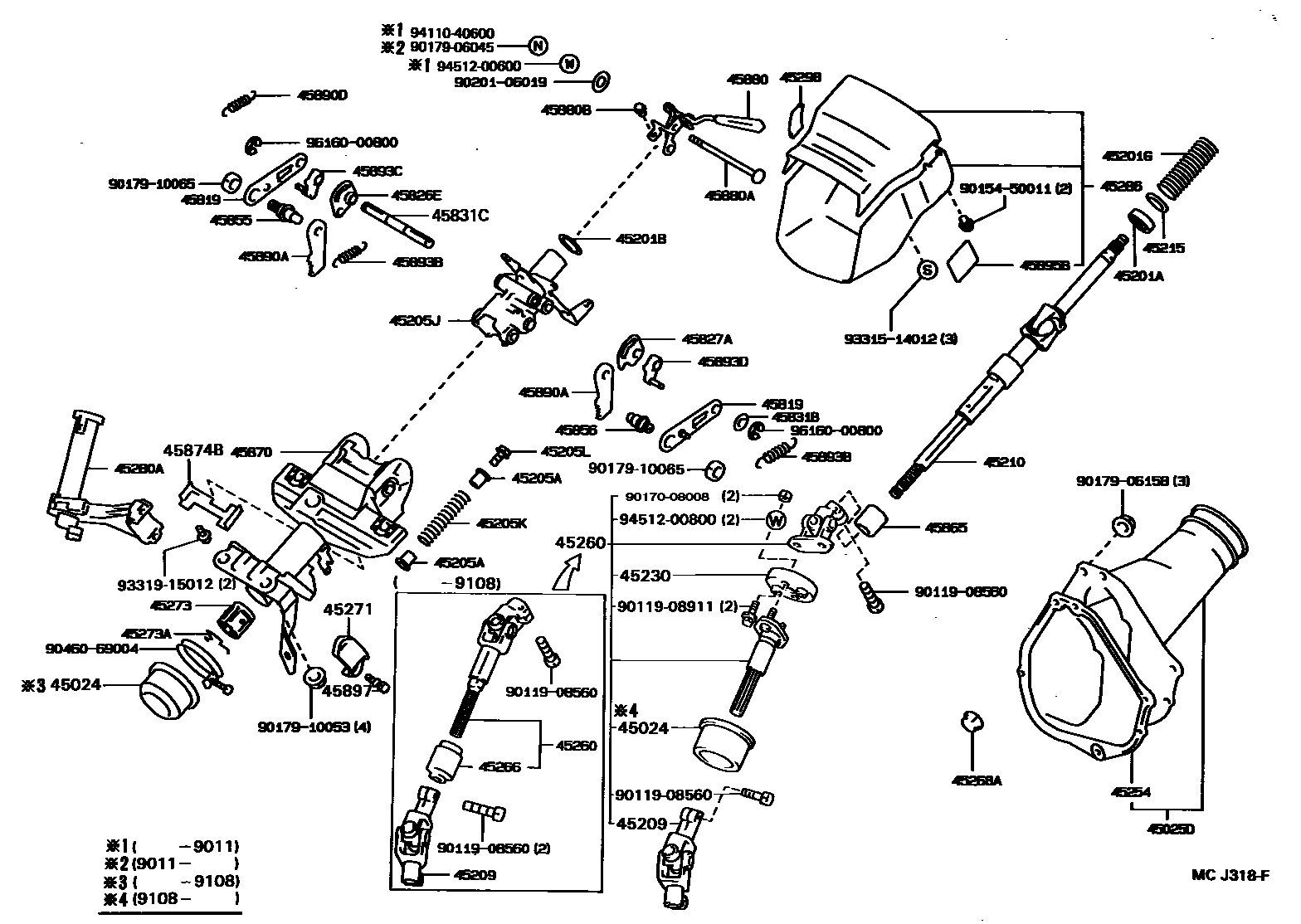

Parts diagram
45024COVER SUB-ASSY, STEERING COLUMN, LOWER
main45024-20110i198909-199109
main45026-20110i199108-199309
sub45026-20111
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
main45025-20290i198909-199109
main45025-20420i199108-199309
45201ABEARING(FOR STEERING MAIN SHAFT)
main90363-18005i198909-199309
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
main90520-17042i198909-199309
T=1.20,W(TILT STEERING)
main90520-17042i198909-199309
T=1.20
45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
main90501-40017i198909-199309
45205ABUSH(FOR STEERING COLUMN TUBE)
main90386-06031i198909-199201
main90386-06043i199201-199208
W(MEMORY & AUTOMATIC TILT STEERING)
main90386-06043i199208-199309
45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER
main45205-20270i198909-199208
main45205-20280i198909-199309
main45205-20300i198910-199208
main45205-20300i198909-199208
W(MEMORY & AUTOMATIC TILT STEERING)
main45205-20310i198909-199309
W(MEMORY & AUTOMATIC TILT STEERING)
main45205-20310i198910-199208
45205KSPRING(FOR STEERING COLUMN TUBE)
main90504-25004i198909-199208
sub90504-25008
main90504-29002i198909-199309
45205LSCREW(FOR STEERING COLUMN TUBE)
main90159-60429i198909-199309
45209YOKE SUB-ASSY, STEERING SLIDING
main45209-16010i199108-199309
main45209-32020i198909-199109
sub45209-16010
45210SHAFT ASSY, STEERING MAIN
main45210-20290i198909-199309
W(TILT STEERING)
main45210-20300i198909-199309
45215COLLAR, MAIN SHAFT BEARING THRUST
main45215-12010i198909-199309
45230COUPLING ASSY, FLEXIBLE
main45230-20030i199108-199309
sub45230-32010
45254SHIELD, STEERING COLUMN HOLE
main45254-20200i198909-199109
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
main45260-20170i198909-199108
main45260-20210i198909-199109
main45260-20330i199108-199309
45266COVER, STEERING INTERMEDIATE SHAFT DUST
main45266-20010i198909-199109
45268ANUT(FOR STEERING INTER SHAFT DUST SEAL COVER)
main90179-06007i198910-199309
main90179-06133i198909-198910
45271CLAMP, STEERING COLUMN, UPPER
main45271-12060i198909-199309
45273BUSH, STEERING MAIN SHAFT
main45273-20010i198909-199006
sub45273-20011
main45273-20011i199006-199309
45273ARING, HOLE SNAP(FOR STEERING MAIN SHAFT BUSH)
main90521-01006i198909-199309
45280ABRACKET ASSY, STEERING COLUMN, UPPER
main45280-20500i198909-199309
45286COVER, STEERING COLUMN
main45287-20914-02i198909-199008
RED,TRIM3#
sub45287-20914
main45287-20914-03i198909-199208
SHADOW GRAY,TRIM1#
sub45287-20914
main45287-20914-03i199208-199309
SHADOW GRAY,SHADOW GRAY,TRIM1#
sub45287-20914
main45287-20914-04i199208-199309
DARK BLUE,DARK BLUE,TRIM8#
sub45287-20914
main45287-20914-04i198909-199208
DARK BLUE,TRIM8#
sub45287-20914
main45287-20914-06i199008-199108
W(CRUISE CONTROL),CHOCOLATE BROWN,TRIM4#
sub45287-20914
main45287-20915-02i198909-199008
W(TILT STEERING),RED,TRIM3#
sub45287-20915
sub45287-17912
main45287-20915-02i198909-199008
RED,TRIM3#
sub45287-20915
sub45287-17912
main45287-20915-03i198909-199208
SHADOW GRAY,TRIM1#
sub45287-20915
sub45287-17912
main45287-20915-03i198909-199208
W(TILT STEERING),SHADOW GRAY,TRIM1#
sub45287-20915
sub45287-17912
main45287-20915-04i198909-199208
W(TILT STEERING),DARK BLUE,TRIM8#
sub45287-20915
sub45287-17912
main45287-20915-04i198909-199208
DARK BLUE,TRIM8#
sub45287-20915
sub45287-17912
main45287-20915-06i199008-199108
W(TILT STEERING),CHOCOLATE BROWN,TRIM4#
sub45287-20915
sub45287-17912
main45287-20915-06i199008-199108
CHOCOLATE BROWN,TRIM4#
sub45287-20915
sub45287-17912
main45287-20916-02i198909-199008
RED,TRIM3#
sub45287-20916
main45287-20916-03i198909-199309
SHADOW GRAY,TRIM1#
sub45287-20916
main45287-20916-04i198909-199309
DARK BLUE,TRIM8#
sub45287-20916
main45287-20916-06i199008-199108
CHOCOLATE BROWN,TRIM4#
sub45287-20916
main45287-20917-02i198909-199008
W(TILT STEERING),RED,TRIM3#
sub45287-17917
main45287-20917-02i198909-199008
RED,TRIM3#
sub45287-17917
main45287-20917-03i198909-199309
SHADOW GRAY,TRIM1#
sub45287-17917
main45287-20917-03i198909-199309
W(TILT STEERING),SHADOW GRAY,TRIM1#
sub45287-17917
main45287-20917-03i199108-199309
W(TILT STEERING),SHADOW GRAY,SHADOW GRAY,TRIM1#
sub45287-17917
main45287-20917-03i199108-199309
SHADOW GRAY,SHADOW GRAY,TRIM1#
sub45287-17917
main45287-20917-04i198909-199309
DARK BLUE,TRIM8#
sub45287-17917
main45287-20917-04i198909-199309
W(TILT STEERING),DARK BLUE,TRIM8#
sub45287-17917
main45287-20917-04i199108-199309
DARK BLUE,DARK BLUE,TRIM8#
sub45287-17917
main45287-20917-04i199108-199309
W(TILT STEERING),DARK BLUE,DARK BLUE,TRIM8#
sub45287-17917
main45287-20917-06i199008-199108
CHOCOLATE BROWN,TRIM4#
sub45287-17917
main45287-20917-06i199008-199108
W(TILT STEERING),CHOCOLATE BROWN,TRIM4#
sub45287-17917
main45287-20918-02i198909-199008
W(MEMORY & AUTOMATIC TILT STEERING),RED,TRIM3#
sub45287-20918
main45287-20918-02i198910-199008
RED,TRIM3#
sub45287-20918
main45287-20918-03i198910-199309
SHADOW GRAY,TRIM1#
sub45287-20918
main45287-20918-03i198909-199208
W(MEMORY & AUTOMATIC TILT STEERING),SHADOW GRAY,TRIM1#
sub45287-20918
main45287-20918-04i198910-199108
DARK BLUE,TRIM8#
sub45287-20918
main45287-20918-04i198909-199208
W(MEMORY & AUTOMATIC TILT STEERING),DARK BLUE,TRIM8#
sub45287-20918
main45287-20918-06i199008-199108
W(MEMORY & AUTOMATIC TILT STEERING),CHOCOLATE BROWN,TRIM4#
sub45287-20918
main45287-20918-06i199008-199108
CHOCOLATE BROWN,TRIM4#
sub45287-20918
main45287-20919-02i198909-199008
W(MEMORY & AUTOMATIC TILT STEERING),RED,TRIM3#
sub45287-20919
main45287-20919-02i198910-199008
RED,TRIM3#
sub45287-20919
main45287-20919-03i198909-199309
W(MEMORY & AUTOMATIC TILT STEERING),SHADOW GRAY,TRIM1#
sub45287-20919
main45287-20919-03i198910-199309
SHADOW GRAY,TRIM1#
sub45287-20919
main45287-20919-04i198909-199309
W(MEMORY & AUTOMATIC TILT STEERING),DARK BLUE,TRIM8#
sub45287-20919
main45287-20919-04i198910-199108
DARK BLUE,TRIM8#
sub45287-20919
main45287-20919-06i199008-199108
CHOCOLATE BROWN,TRIM4#
sub45287-20919
main45287-20919-06i199008-199108
W(MEMORY & AUTOMATIC TILT STEERING),CHOCOLATE BROWN,TRIM4#
sub45287-20919
45298PLUG, STEERING COLUMN COVER
main45298-20010-02i198909-199008
RED,TRIM3#
sub45298-20010
main45298-20010-03i198909-199208
SHADOW GRAY,TRIM1#
sub45298-20010
main45298-20010-04i198909-199208
DARK BLUE,TRIM8#
sub45298-20010
main45298-20010-16i199008-199108
SABLE,TRIM4#
sub45298-20010
45819RETAINER, TILT LEVER
main45819-20070i198909-199309
W(MEMORY & AUTOMATIC TILT STEERING)
main45819-20070i198910-199309
main45819-22040i198909-199301
main45819-22060i199301-199309
45826LEVER, STEERING TILT
main45826-20140i198909-199309
45826ELEVER, STEERING TILT(FOR TILT ADJUST)
main45826-22050i198909-199309
45827ALEVER, STEERING TILT SUB
main45827-20050i198909-199309
W(MEMORY & AUTOMATIC TILT STEERING)
main45827-20050i198910-199309
main45827-22030i198909-199309
45831BSPACER(FOR TILT LEVER LOCK SHAFT)
main90560-10062i198909-199309
45831CSHAFT, TILT LEVER LOCK
main45831-20030i198909-199309
45855BOLT, TILT STEERING, NO.1
main45855-22010i198910-199309
OD=9.989-9.998
main45855-22010i198909-199309
OD=9.989-9.998,W(MEMORY & AUTOMATIC TILT STEERING)
main45855-22020i198909-199309
OD=9.998-10.007,W(MEMORY & AUTOMATIC TILT STEERING)
main45855-22020i198910-199309
OD=9.998-10.007
main45856-22010i198909-199309
OD=9.989-9.998
45856BOLT, TILT STEERING, NO.2
main45856-20030i198909-199309
OD=9.989-9.998,W(MEMORY & AUTOMATIC TILT STEERING)
main45856-20030i198910-199309
OD=9.989-9.998
main45856-20040i198909-199309
OD=9.993-9.998,W(MEMORY & AUTOMATIC TILT STEERING)
main45856-20040i198910-199309
OD=9.993-9.998
main45856-22010i198909-199309
OD=9.989-9.998
45865COLLAR, STEERING MAIN SHAFT
main45865-20010i198909-199309
45870TUBE ASSY, STEERING COLUMN
main45870-20280i198909-199208
W(TILT STEERING)
main45870-20290i198909-199309
W(TILT STEERING)
main45870-20310i198909-199208
main45870-20320i198909-199309
main45870-20340i198909-199208
W(MEMORY & AUTOMATIC TILT STEERING)
main45870-20340i198910-199208
main45870-20350i198909-199309
W(MEMORY & AUTOMATIC TILT STEERING)
main45870-20350i198910-199208
45874BPROTECTOR, STEERING COLUMN, NO.1
main45874-20020i198909-199309
W(MEMORY & AUTOMATIC TILT STEERING)
main45874-20020i198910-199208
main45874-20030i198909-199309
45880LEVER ASSY, STEERING TILT
main45880-20010i198909-199309
45880ABOLT(FOR STEERING TILT LEVER)
main90109-06162i198909-199309
main90109-06168i198909-199309
W(MEMORY & AUTOMATIC TILT STEERING)
main90109-06168i198910-199309
45880BSCREW(FOR STEERING TILT LEVER)
main93385-15014i198909-199309
45890APAWL ASSY, TILT STEERING
main45890-20110i198909-199309
RH
main45890-22090i198909-199309
LH
45890DSPRING, TENSION(FOR TILT STEERING PAWL ASSY)
main90507-07003i198909-199309
45893BSPRING, TENSION(FOR TILT STEERING PAWL STOPPER)
main90507-08010i198909-199309
LH
main90507-08013i198909-199309
W(MEMORY & AUTOMATIC TILT STEERING),LH
main90507-08013i198910-199309
LH
main90507-10019i198909-199309
RH
45893CSTOPPER, STEERING PAWL, RH
main45893-20190i198910-199309
MARK 1
main45893-20190i198909-199002
MARK 1,W(MEMORY & AUTOMATIC TILT STEERING)
main45893-20200i198910-199309
MARK 2
main45893-20200i198909-199002
MARK 2,W(MEMORY & AUTOMATIC TILT STEERING)
main45893-20210i198910-199309
MARK 3
main45893-20210i198909-199002
MARK 3,W(MEMORY & AUTOMATIC TILT STEERING)
main45893-20220i198910-199309
MARK 4
main45893-20220i198909-199002
MARK 4,W(MEMORY & AUTOMATIC TILT STEERING)
main45893-20230i198910-199309
MARK 5
main45893-20230i198909-199002
MARK 5,W(MEMORY & AUTOMATIC TILT STEERING)
main45893-20240i198910-199309
MARK 6
main45893-20240i198909-199002
MARK 6,W(MEMORY & AUTOMATIC TILT STEERING)
main45893-20250i198910-199309
MARK 7
main45893-20250i198909-199002
MARK 7,W(MEMORY & AUTOMATIC TILT STEERING)
main45893-22030i198909-199002
MARK 1
main45893-22040i198909-199002
MARK 2
main45893-22050i198909-199002
MARK 3
main45893-22060i198909-199002
MARK 4
main45893-22070i198909-199002
MARK 5
45893DSTOPPER, STEERING PAWL, LH
main45893-20260i198909-199309
MARK A
main45893-20270i198909-199309
MARK B
main45893-20280i198909-199309
MARK C
main45893-20290i198909-199309
MARK D
main45893-20300i198909-199309
MARK E
main45893-20310i198909-199309
MARK F
main45893-20320i198909-199309
MARK G
45895BPLATE, TILT LEVER INSTRUCTION
main45895-20100i198909-199309
main45895-20110i198909-199309
W(MEMORY & AUTOMATIC TILT STEERING)
main45895-20110i198910-199309
45897BOLT, STEERING LOCK SET
main45897-12020i198909-199309
9011908560
main90119-08560
9011908911
main90119-08911
9015450011
main90154-50011
9017008008
main90170-08008
9017906045
main90179-06045
9017906158
main90179-06158
9017910053
main90179-10053
9017910065
main90179-10065
9020106019
main90201-06019
9046069004
main90460-69004
9331514012
main93315-14012
9331915012
main93319-15012
9411040600
main94110-40600
9451200600
main94512-00600
9451200800
main94512-00800
9616000800
main96160-00800

60 parts on this diagram · 3 diagrams in section

STEERING COLUMN & SHAFT — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
