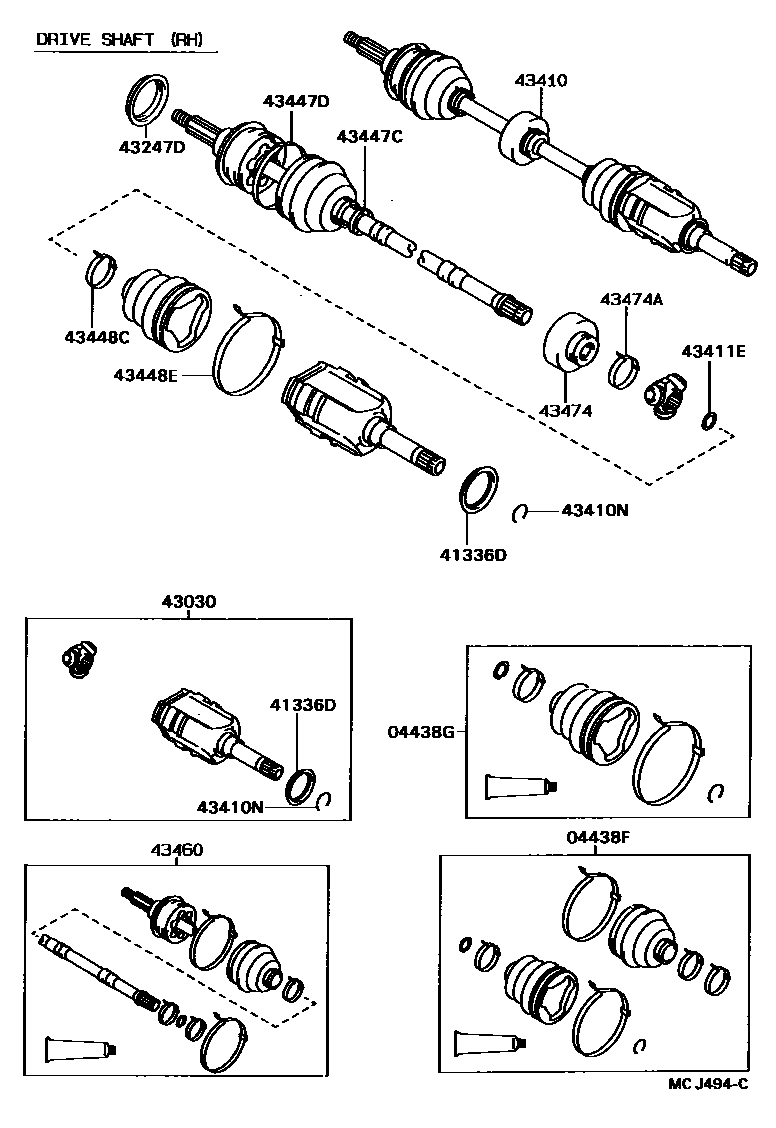

FRONT DRIVE SHAFT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04438-12080iAT180..MTM198909-199002

sub04438-12170

main04438-12120iAT180..ATM198909-199002

sub04438-12190

main04438-12170iAT180..MTM199002-199009

sub04438-12171

main04438-12171iAT180..MTM199009-199108

sub04438-12370

main04438-12172iAT180..MTM199108-199309

sub04428-12270

main04438-12190iAT180..ATM199002-199009

main04438-12191iAT180..ATM199009-199108

sub04438-20110

main04438-20050iST185198910-199108

sub04438-20231

main04438-20070iST184..CVT198909-199109

main04438-20130iAT180..ATM199108-199309

sub04438-20131

main04438-20150iST184199108-199309

sub04438-20151

main04438-20230iST185199108-199309

sub04438-20231

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-12070iAT180198909-199002

sub04438-12160

main04438-12160iAT180199002-199009

sub04438-12161

main04438-12161iAT180199009-199108

sub04438-12410

main04438-12162iAT180..MTM199108-199309

sub04438-12410

main04438-20040iST185198910-199108

sub04438-20440

main04438-20060iST184..CVT198909-199109

sub04438-20330

main04438-20120iAT180..ATM199108-199309

sub04438-20121

main04438-20140iST184..CP,LB199108-199309

sub04438-20420

main04438-20220iST185199108-199309

sub04438-20440

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12010iAT180..MTM198909-199309

main41336-20011iST184198909-199309

sub41336-20050

main41336-20040iST185198910-199309

main41336-32010iAT180..ATM198909-199309

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-20020iAT180..ATM198909-199309

main43030-20040iST184198909-199309

main43403-12040iAT180..MTM198909-199309

43247DDEFLECTOR, FRONT WHEEL BEARING DUST, NO.2 RH

main43247-12010iST184..GTS198909-199309

W(*66)

main43247-32011iAT180,ST18#198909-199106

sub43247-33010

main43247-33010iAT180,ST18#199106-199309

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-20151iAT180..MTM198909-199108

sub43410-20152

sub43525-20030

sub90179-22020

main43410-20152iAT180..MTM199108-199309

sub43410-20431

sub90178-22001

main43410-20210iAT180..ATM198909-199108

sub43410-20211

sub43525-20030

sub90179-22020

main43410-20211iAT180..ATM199108-199309

sub43410-20212

sub90178-22001

main43410-20240iST184..CVT198909-199109

sub43410-20241

sub43525-20030

sub90179-22020

main43410-20241iST184..CP,LB199108-199309

sub43410-20242

sub90178-22001

main43410-20250iST184..GTS198909-199108

W(*66)

sub43410-20251

sub43525-20030

sub90179-22020

main43410-20251iST184..CP,LB199108-199309

W(*66)

sub43410-20252

sub90178-22001

main43410-20320iST185198910-199101

W(*66)

sub43410-20321

sub43525-20030

sub90179-22020

main43410-20321iST185199101-199108

W(*66)

sub43410-20322

main43410-20480iST185199108-199309

sub43410-20481

main43410-20490iST185199108-199309

W(*66)

sub43410-20491

main43410-32110iST185198910-199101

sub43410-32111

sub43525-20030

sub90179-22020

main43410-32111iST185199101-199108

sub43410-32112

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90521-26004iAT180,ST185..MTM198909-199309

main90521-27005iAT180..ATM198909-199309

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90520-22005iAT180198909-199309

main90520-26028iST185198910-199309

main90520-26048iST184198909-199309

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-14010iST185;AT180..ATM198909-199309

main90949-01078iAT180..MTM198909-199309

main90949-01559iST184198909-199309

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main90949-01076iAT180..ATM198909-199309

sub42345-12160

main90949-01080iAT180..MTM198909-199309

main90949-01339iST185198910-199309

main90949-01473iST184198909-199309

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-14010iST185198910-199309

main90949-01078iAT180198909-199309

main90949-01559iST184198909-199309

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-16100iST185199307-199309

main42345-30010iST184198909-199309

main90949-01076iAT180198909-199309

sub42345-12160

main90949-01340iST185198910-199307

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-19305iAT180..ATM198909-199101

sub43460-19306

sub43525-20030

sub90179-22020

main43460-19306iAT180..ATM199101-199309

sub43460-19309

sub90178-22001

main43460-29096iAT180..MTM198909-199101

sub43460-29097

sub43525-20030

sub90179-22020

main43460-29097iAT180..MTM199101-199108

sub43460-29098

main43460-29098iAT180..MTM199108-199309

sub43460-29099

sub90178-22001

main43470-29155iST184198909-199101

sub43470-29156

sub43525-20030

sub90179-22020

main43470-29156iST184199101-199309

sub43470-29157

sub90178-22001

main43470-29165iST184..GTS198909-199101

W(*66)

sub43470-29166

sub43525-20030

sub90179-22020

main43470-29166iST184..GTS199101-199309

W(*66)

sub43470-29167

sub90178-22001

main43470-29215iST185198910-199101

W(*66)

sub43470-29216

sub43525-20030

sub90179-22020

main43470-29216iST185199101-199108

W(*66)

sub43470-29217

main43470-29217iST185199108-199309

W(*66)

sub43470-29218

main43470-39065iST185198910-199101

sub43470-39066

sub43525-20030

sub90179-22020

main43470-39066iST185199101-199108

sub43470-39067

main43470-39067iST185199108-199309

sub43470-39068

43474DAMPER, DRIVE SHAFT

main43474-12020iAT180198909-199309

main43474-20060iST185199108-199309

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main42345-14010iAT180198909-199309

15 parts on this diagram · 7 diagrams in section
