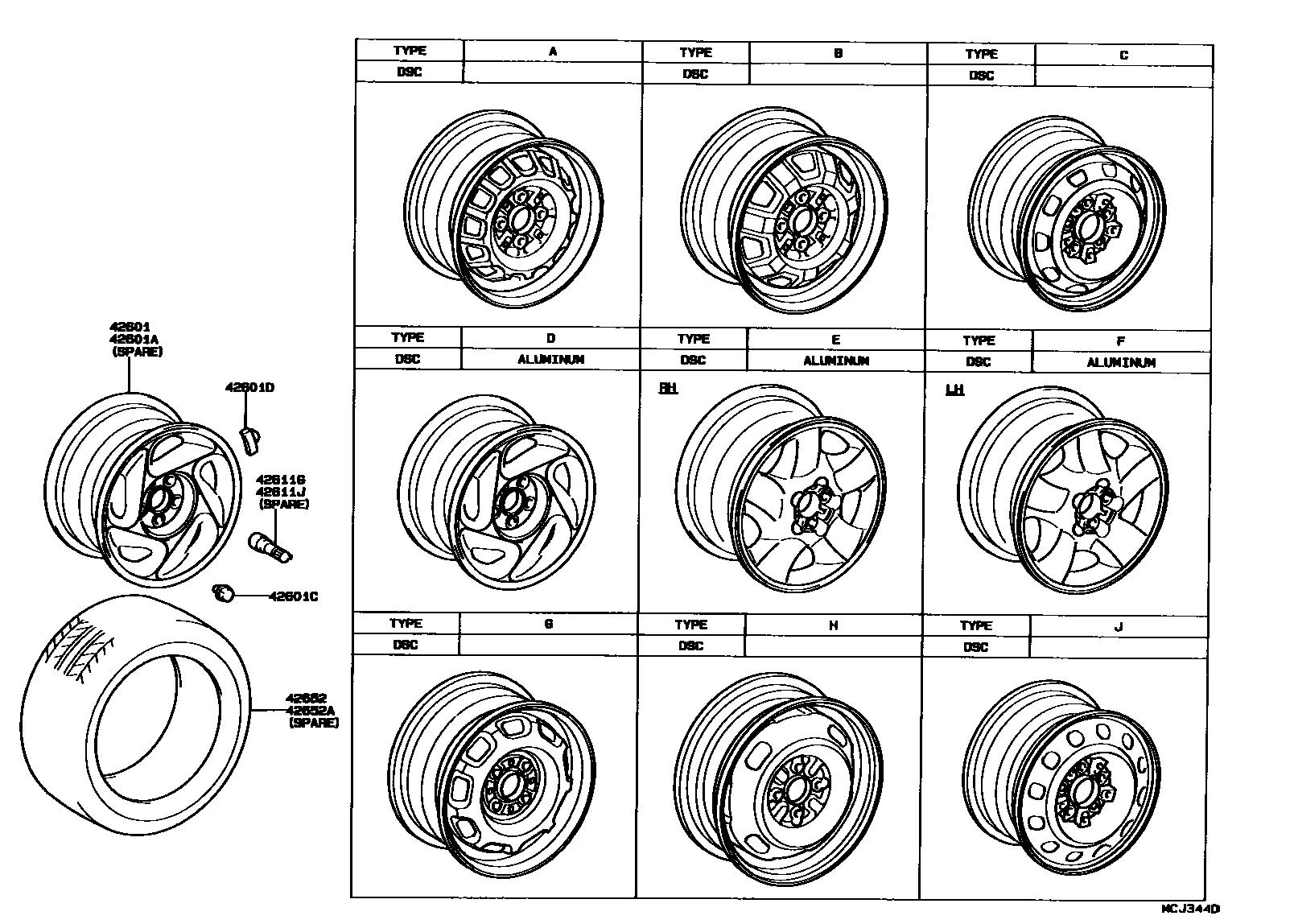

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-12820-03iAT180198909-199008

13X5J,TYPE A,SILVER

sub42611-12820

main42611-20300-03iAT180198909-199008

13X5J,TYPE B,W(FULL CAP),DARK GRAY

sub42611-20300

main42611-20650-03iAT180199008-199108

13X5.5JJ,TYPE G,DARK GRAY,040 ,181 ,182 ,202 ,3E5 ,3H4 ,742 ,8G6 ,8G7

main42611-20660-01iST184..GT198909-199309

14X6JJ,OFFSET 45, #,TYPE C,BLACK

sub42611-20660

main42611-20720iST18#..WIB198909-199309

15X6.5JJ,TYPE E,RH

main42611-20730iST18#..WIB198909-199309

15X6.5JJ,TYPE F,LH

main42611-20740iST184..CVT199109-199309

14X6JJ,TYPE N,ALUMINUM

main42611-20820iST184..GT198909-199109

14X6JJ,TYPE D,ALUMINUM

main42611-20830-01iST184..(CP,LB)..GT..USA199108-199309

15X6JJ,TYPE J,BLACK

main42611-20850iST184..(CP,LB)..GT..USA199108-199309

15X6JJ,TYPE L,ALUMINUM

42601AWHEEL, DISC (FOR SPARE)

main42611-16220iAT180198909-199108

14X4T,TYPE H

main42611-20570iST184..CVT199108-199309

15X4T,TYPE P

main42611-20660-01iST184..CVT198909-199109

14X6JJ,OFFSET 45, #,TYPE C,BLACK

sub42611-20660

main42611-20670-03iST185199108-199309

15X6.5JJ,TYPE J,SILVER M.,040 ,182 ,202 ,3E5 ,749

main42611-20670-03iST185198910-199008

15X6.5JJ,TYPE J,SILVER M.,040 ,182 ,202 ,3E5 ,3H4 ,8G7

main42611-20670-03iST185198910-199008

15X6.5JJ,TYPE J,SILVER M.,040 ,182 ,202 ,3E5 ,3H4 ,8G6 ,8G7

main42611-20670-03iST185199008-199108

15X6.5JJ,TYPE J,SILVER M.,040 ,181 ,182 ,202 ,3E5 ,3H4 ,742 ,8G7

main42611-20670-03iST185199008-199108

15X6.5JJ,TYPE J,SILVER M.,040 ,181 ,182 ,202 ,3E5 ,3H4 ,742 ,8G6 ,8G7

main42611-20670-03iST184..GTS..CND199108-199208

15X6.5JJ,TYPE J,SILVER M.,040 ,182 ,202 ,3E5 ,3J8 ,4J1 ,749 ,8G6 ,8J1

main42611-20670-03iST184..GTS..CND199208-199309

15X6.5JJ,TYPE J,SILVER M.,040 ,182 ,202 ,3E5 ,3J8 ,749 ,8G6 ,8J1

main42611-20800iST185198910-199309

16X4T,SPARE,TYPE K

sub42611-20840

main42611-20830-01iST184..GT..CND199108-199309

15X6JJ,TYPE J,BLACK

main42611-20860-01iST184..CVT199109-199309

14X4T,TYPE M,BLACK

sub42611-20860

42601CNUT, HUB (FOR AXLE)

main90942-01007iAT180199008-199108

main90942-01007iAT180198909-199008

W(FULL CAP)

main90942-01021iST184..GT198909-199309

main90942-01021iST184..(CP,LB)..GT..USA199202-199309

HAWAII SPEC & W(FULL CAP)

main90942-01050iST18#..WIB198909-199309

main90942-01062iST184..CVT198909-199309

W(ALUMINUM WHEEL)

main90942-01084iST184..(CP,LB)..GT199108-199309

W(ALUMINUM WHEEL)

sub90942-01058

main90942-01084iST184..(CP,LB)..GT..USA199202-199309

HAWAII SPEC & W(ALUMINUM WHEEL) OR W(ALUMINUM WHEEL)

sub90942-01058

42601DWEIGHT, BALANCE (FOR DISC WHEEL)

main90942-03017iST184..GTS..USA198909-199309

20G,T=8

main90942-03017iST184..CP198909-199008

20G,T=8,EVP 1 PACKAGE & W(ALUMINUM WHEEL)

main90942-03020iST184..GTS..USA198909-199309

30G,T=10

main90942-03020iST184..CP198909-199008

30G,T=10,EVP 1 PACKAGE & W(ALUMINUM WHEEL)

main90942-03022iST184..GTS..USA198909-199309

40G,T=9.5

main90942-03022iST184..CP198909-199008

40G,T=9.5,EVP 1 PACKAGE & W(ALUMINUM WHEEL)

main90942-03025iST184..CND;AT180,ST185;ST184..GT..USA198909-199309

50G,T=9.5

main90942-03025iST184..CP198909-199008

50G,T=9.5,EVP 1 PACKAGE & W(ALUMINUM WHEEL)

main90942-03027iST184..GTS..USA198909-199309

60G,T=9.5

main90942-03027iST184..CP198909-199008

60G,T=9.5,EVP 1 PACKAGE & W(ALUMINUM WHEEL)

main90942-03029iST184..CND;AT180,ST185;ST184..GT..USA198909-199309

70G,T=9.5

main90942-03029iST184..CP198909-199008

70G,T=9.5,EVP 1 PACKAGE & W(ALUMINUM WHEEL)

main90942-03031iST184..CND;AT180,ST185;ST184..GT..USA198909-199309

80G,T=9.5

main90942-03031iST184..CP198909-199008

80G,T=9.5,EVP 1 PACKAGE & W(ALUMINUM WHEEL)

main90942-03041iAT180,ST18#..GT,ST,TBO4W,TBOAT198909-199309

10G,T=7.5

main90942-03041iST184..CP198909-199008

10G,T=7.5,EVP 1 PACKAGE & W(ALUMINUM WHEEL)

main90942-03098iST184..GTS..USA198909-199309

15G

main90942-03098iST184..CP198909-199008

15G,EVP 1 PACKAGE & W(ALUMINUM WHEEL)

main90942-03099iST184..CND;AT180,ST185;ST184..GT..USA198909-199309

25G

main90942-03099iST184..CP198909-199008

25G,EVP 1 PACKAGE & W(ALUMINUM WHEEL)

main90942-03100iST184..GTS..USA198909-199309

35G

main90942-03100iST184..CP198909-199008

35G,EVP 1 PACKAGE & W(ALUMINUM WHEEL)

main90942-03101iST184..GTS..USA198909-199309

45G

main90942-03101iST184..CP198909-199008

45G,EVP 1 PACKAGE & W(ALUMINUM WHEEL)

main90942-03102iAT180,ST18#..GT,ST,TBO4W,TBOAT198909-199309

55G

main90942-03102iST184..CP198909-199008

55G,EVP 1 PACKAGE & W(ALUMINUM WHEEL)

main90942-03108iST184..GTS..USA198909-199309

65G

main90942-03108iST184..CP198909-199008

65G,EVP 1 PACKAGE & W(ALUMINUM WHEEL)

main90942-03109iST184..CND;AT180,ST185;ST184..GT..USA198909-199309

75G

main90942-03109iST184..CP198909-199008

75G,EVP 1 PACKAGE & W(ALUMINUM WHEEL)

main90942-03146iST184..GT198909-199309

10G,W(ALUMINUM WHEEL)

main90942-03146iST18#..WIB198909-199309

10G

main90942-03146iST184..CVT199109-199309

10G,W(ALUMIMUM WHEEL)

main90942-03147iST184..(CP,LB)..GT..USA198909-199309

15G,W(ALUMINUM WHEEL)

main90942-03147iST18#..WIB198909-199309

15G

main90942-03147iST184..CVT199109-199309

15G,W(ALUMIMUM WHEEL)

main90942-03148iST184..(CP,LB)..GT..USA198909-199309

20G,W(ALUMINUM WHEEL)

main90942-03148iST18#..WIB198909-199309

20G

main90942-03148iST184..CVT199109-199309

20G,W(ALUMIMUM WHEEL)

main90942-03149iST184..CVT198909-199309

25G,W(ALUMINUM WHEEL)

main90942-03149iST184..CVT199109-199309

25G,W(ALUMIMUM WHEEL)

main90942-03149iST18#..WIB198909-199309

25G

main90942-03150iST184..(CP,LB)..GT..USA198909-199309

30G,W(ALUMINUM WHEEL)

main90942-03150iST18#..WIB198909-199309

30G

main90942-03150iST184..CVT199109-199309

30G,W(ALUMIMUM WHEEL)

main90942-03151iST184..(CP,LB)..GT..USA198909-199309

35G,W(ALUMINUM WHEEL)

main90942-03151iST184..CVT199109-199309

35G,W(ALUMIMUM WHEEL)

main90942-03151iST18#..WIB198909-199309

35G

main90942-03152iST184..GT..CND198909-199309

40G,W(ALUMINUM WHEEL)

main90942-03152iST18#..WIB198909-199309

40G

main90942-03152iST184..CVT199109-199309

40G,W(ALUMIMUM WHEEL)

main90942-03153iST18#..WIB198909-199309

45G

main90942-03153iST184..(CP,LB)..GT198909-199309

45G,W(ALUMINUM WHEEL)

main90942-03153iST184..CVT199109-199309

45G,W(ALUMIMUM WHEEL)

main90942-03154iST18#..WIB198909-199309

50G

main90942-03154iST184..(CP,LB)..GT198909-199309

50G,W(ALUMINUM WHEEL)

main90942-03154iST184..CVT199109-199309

50G,W(ALUMIMUM WHEEL)

main90942-03155iST184..(CP,LB)..GT..USA198909-199309

55G,W(ALUMINUM WHEEL)

main90942-03155iST184..CVT199109-199309

55G,W(ALUMIMUM WHEEL)

main90942-03155iST18#..WIB198909-199309

55G

main90942-03156iST184..(CP,LB)..GT..USA198909-199309

60G,W(ALUMINUM WHEEL)

main90942-03156iST184..CVT199109-199309

60G,W(ALUMIMUM WHEEL)

main90942-03156iST18#..WIB198909-199309

60G

main90942-03157iST184..(CP,LB)..GT..USA198909-199309

65G,W(ALUMINUM WHEEL)

main90942-03157iST18#..WIB198909-199309

65G

main90942-03157iST184..CVT199109-199309

65G,W(ALUMIMUM WHEEL)

main90942-03158iST184..(CP,LB)..GT..USA198909-199309

70G,W(ALUMINUM WHEEL)

main90942-03158iST18#..WIB198909-199309

70G

main90942-03158iST184..CVT199109-199309

70G,W(ALUMIMUM WHEEL)

main90942-03159iST184..(CP,LB)..GT..USA198909-199309

75G,W(ALUMINUM WHEEL)

main90942-03159iST184..CVT199109-199309

75G,W(ALUMIMUM WHEEL)

main90942-03159iST18#..WIB198909-199309

75G

main90942-03160iST18#..WIB198909-199309

80G

main90942-03160iST184..(CP,LB)..GT198909-199309

80G,W(ALUMINUM WHEEL)

main90942-03160iST184..CVT199109-199309

80G,W(ALUMIMUM WHEEL)

main90942-03161iST184..CND;AT180,ST185;ST184..GT..USA198909-199309

5G

main90942-03161iST184..CP198909-199008

5G,EVP 1 PACKAGE & W(ALUMINUM WHEEL)

main90942-03167iST18#..WIB198909-199309

5G

main90942-03167iST184..GT..CND198909-199309

5G,W(ALUMINUM WHEEL)

main90942-03167iST184..CVT199109-199309

5G,W(ALUMIMUM WHEEL)

main90942-03194iST184..CND;AT180,ST185;ST184..GT..USA198909-199309

7.5G,T=7.5

main90942-03194iST184..CP198909-199008

7.5G,T=7.5,EVP 1 PACKAGE & W(ALUMINUM WHEEL)

main90942-03195iAT180,ST18#..GT,ST,TBO4W,TBOAT198909-199309

12.5G,T=7.5

main90942-03195iST184..CP198909-199008

12.5G,T=7.5,EVP 1 PACKAGE & W(ALUMINUM WHEEL)

main90942-03203iST184..CND;AT180,ST185;ST184..GT..USA198909-199309

17.5G,T=9.5

main90942-03203iST184..CP198909-199008

17.5G,T=9.5,EVP 1 PACKAGE & W(ALUMINUM WHEEL)

main90942-03204iAT180,ST18#..GT,ST,TBO4W,TBOAT198909-199309

22.5G,T=9.5

main90942-03204iST184..CP198909-199008

22.5G,T=9.5,EVP 1 PACKAGE & W(ALUMINUM WHEEL)

main90942-03205iST184..CND;AT180,ST185;ST184..GT..USA198909-199309

27.5G,T=9.5

main90942-03205iST184..CP198909-199008

27.5G,T=9.5,EVP 1 PACKAGE & W(ALUMINUM WHEEL)

main90942-03206iST184..GTS..USA198909-199309

32.5G,T=9.5

main90942-03206iST184..CP198909-199008

32.5G,T=9.5,EVP 1 PACKAGE & W(ALUMINUM WHEEL)

main90942-03207iST184..CND;AT180,ST185;ST184..GT..USA198909-199309

37.5G,T=9.5

main90942-03207iST184..CP198909-199008

37.5G,T=9.5,EVP 1 PACKAGE & W(ALUMINUM WHEEL)

main90942-03208iST18#..WIB198909-199309

7.5G,T=6.1

main90942-03208iST184..(CP,LB)..GT198909-199309

7.5G,T=6.1,W(ALUMINUM WHEEL)

main90942-03208iST184..CVT199109-199309

7.5G,T=6.1,W(ALUMIMUM WHEEL)

main90942-03209iST184..(CP,LB)..GT..USA198909-199309

12.5G,T=7.0,W(ALUMINUM WHEEL)

main90942-03209iST184..CVT199109-199309

12.5G,T=7.0,W(ALUMIMUM WHEEL)

main90942-03209iST18#..WIB198909-199309

12.5G,T=7.0

main90942-03210iST184..CVT199109-199309

17.5G,T=8.0,W(ALUMIMUM WHEEL)

main90942-03210iST18#..WIB198909-199309

17.5G,T=8.0

main90942-03210iST184..(CP,LB)..GT..USA198909-199309

17.5G,T=8.0,W(ALUMINUM WHEEL)

main90942-03211iST184..CVT198909-199309

22.5G,T=8.0,W(ALUMINUM WHEEL)

main90942-03211iST18#..WIB198909-199309

22.5G,T=8.0

main90942-03211iST184..CVT199109-199309

22.5G,T=8.0,W(ALUMIMUM WHEEL)

main90942-03212iST184..(CP,LB)..GT..USA198909-199309

27.5G,T=8.0,W(ALUMINUM WHEEL)

main90942-03212iST18#..WIB198909-199309

27.5G,T=8.0

main90942-03212iST184..CVT199109-199309

27.5G,T=8.0,W(ALUMIMUM WHEEL)

main90942-03213iST184..GT..CND198909-199309

32.5G,T=8.0,W(ALUMINUM WHEEL)

main90942-03213iST18#..WIB198909-199309

32.5G,T=8.0

main90942-03213iST184..CVT199109-199309

32.5G,T=8.0,W(ALUMIMUM WHEEL)

main90942-03214iST184..GT..CND198909-199309

37.5G,T=8.0,W(ALUMINUM WHEEL)

main90942-03214iST184..CVT199109-199309

37.5G,T=8.0,W(ALUMIMUM WHEEL)

main90942-03214iST18#..WIB198909-199309

37.5G,T=8.0

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iAT180,ST18#198909-199309

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iAT180,ST18#198909-199309

42652TIRE

main42652-20200iAT180199008-199108

185/70SR13

main42652-20350iAT180198909-199008

165SR13

main42652-20680iST184..GT198909-199109

185/65R14 85S

main42652-2B020iST184..CVT199109-199309

205/60R14 87H

main42652-2B030iST184..(CP,LB)..GT199108-199309

205/55R15 87V

main42652-2B040iST184..(CP,LB)..GT..USA199108-199309

205/55R15 87V,W(FULL CAP)

main42652-2B040iST184..(CP,LB)..GT..USA199108-199309

205/55R15 87V,W(FULL CAP) OR W(ALUMINUM WHEEL)

main42652-2B050iST184..GTS..USA199108-199309

215/50R15 88V

main42652-2B300iST184..(CP,LB)..GT..USA199202-199309

205/55R15 87V,*B/S,W(FULL CAP) OR W(ALUMINUM WHEEL)

42652ATIRE (FOR SPARE)

main42652-14270iST184..CVT199108-199309

T135/70D15

main42652-20680iST184..CVT198909-199109

185/65R14 85S

main42652-20760iST185198910-199309

T135/70D16

sub42652-24050

main42652-2B030iST184..GT..CND199108-199309

205/55R15 87V

main42652-2B040iST184..GT..CND199108-199309

205/55R15 87V,W(FULL CAP) OR W(ALUMINUM WHEEL)

main42652-2B050iST184..GTS..USA199108-199309

215/50R15 88V

main42652-32050iST184..CVT198909-199309

T125/70D14

8 parts on this diagram · 3 diagrams in section
