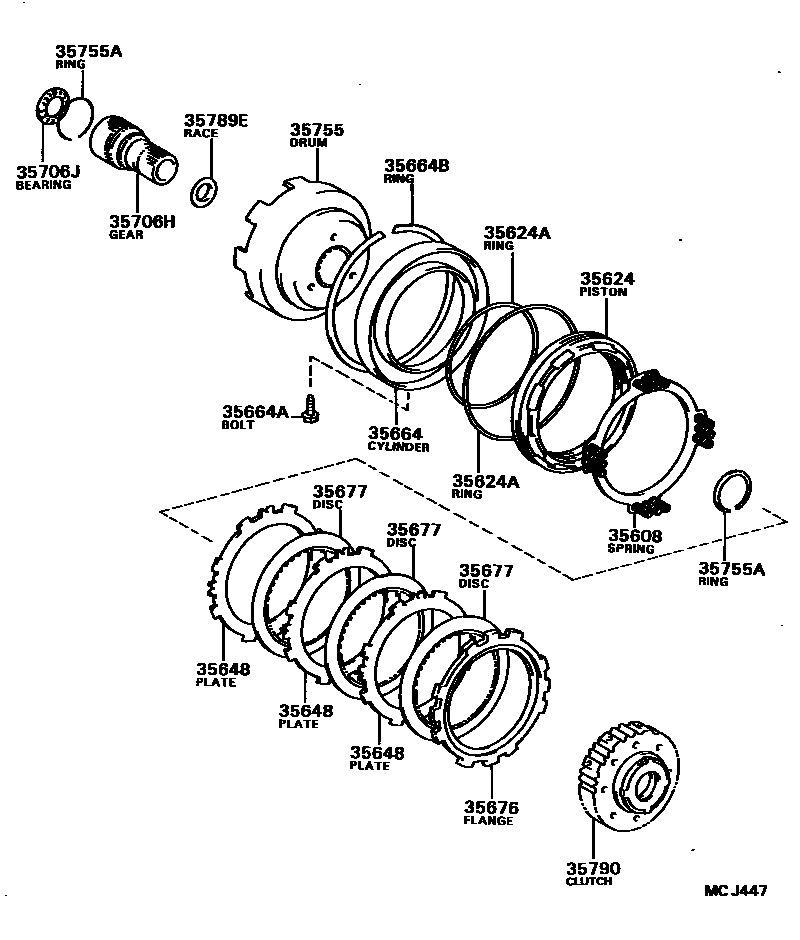

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN

main35608-32010iAT180,ST184..ATM..(GTS,ST)¥1,480198909-199309

35624PISTON, 2ND BRAKE

main35624-32010iAT180,ST184..(CP,LB)..ATM¥3,680198909-199309

35624ARING, O (FOR 2ND BRAKE PISTON)

main90301-99021iAT180,ST184..ATM..(GTS,ST)¥640198909-199309

INNER

main90301-99023iAT180,ST184..ATM..(GTS,ST)¥1,090198909-199309

OUTER

35648PLATE, CLUTCH (FOR 2ND BRAKE)

main35648-32010iAT180,ST184..ATM..(GTS,ST)¥2,000198909-199309

T=1.8

35664CYLINDER, 2ND BRAKE

main35664-32010iAT180,ST184..ATM..(GTS,ST)¥5,400198909-199309

35664ABOLT (FOR 2ND BRAKE CYLINDER)

main90109-06060iAT180,ST184..ATM¥160198909-199309

35664BRING, HOLE SNAP (FOR 2ND BRAKE CYLINDER)

main90521-99013iAT180,ST184..ATM..(GTS,ST)¥550198909-199309

35676FLANGE, BRAKE (FOR 2ND BRAKE)

main35676-12010iAT180,ST184..ATM¥4,160199209-199309

T=3.5

sub35676-32010¥4,590

main35676-32010iAT180,ST184..ATM¥4,590198909-199309

T=3.5

sub35676-12030¥4,810

35677DISC, CLUTCH (FOR 2ND BRAKE)

main35677-20040iAT180..ATM¥2,980198909-199107

main35677-20050iST184..ATM..GT¥2,630199008-199309

main35677-32050iST184..(CP,LB)..ATM¥2,080198909-199309

35706HGEAR SUB-ASSY, PLANETARY SUN

main35706-12010iAT180,ST184..ATM¥10,400199210-199309

main35706-32030iAT180,ST184..ATM¥10,000198909-199210

sub35706-12010¥10,400

35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)

main90374-30006iAT180,ST184..ATM¥770198909-199309

35755DRUM, SUN GEAR INPUT

main35755-32020iAT180,ST184..ATM¥4,760198909-199309

35755ARING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM)

main90520-44002iAT180..ATM;ST184..CVT..ATM¥170199108-199309

T=1.2,ID=44.0,T=1.2,OD=44.0

main90520-44002iAT180..ATM;ST184..CVT..ATM¥170198909-199309

T=1.2,ID=44.0,T=1.2,ID=44.0

main90520-47003iAT180,ST184..ATM¥160198909-199309

T=2.3,ID=47.1,T=2.3,ID=47.1

35789ERACE, THRUST BEARING (FOR PLANETARY SUN GEAR)

main35789-22010iAT180,ST184..ATM¥530198909-199309

35790CLUTCH ASSY, 1 WAY

main35790-20010iST184..ATM..GTS¥11,300198909-199109

sub35790-44010¥11,500

main35790-32050iAT180..ATM¥10,800198909-199309

15 parts on this diagram · 1 diagram in section
