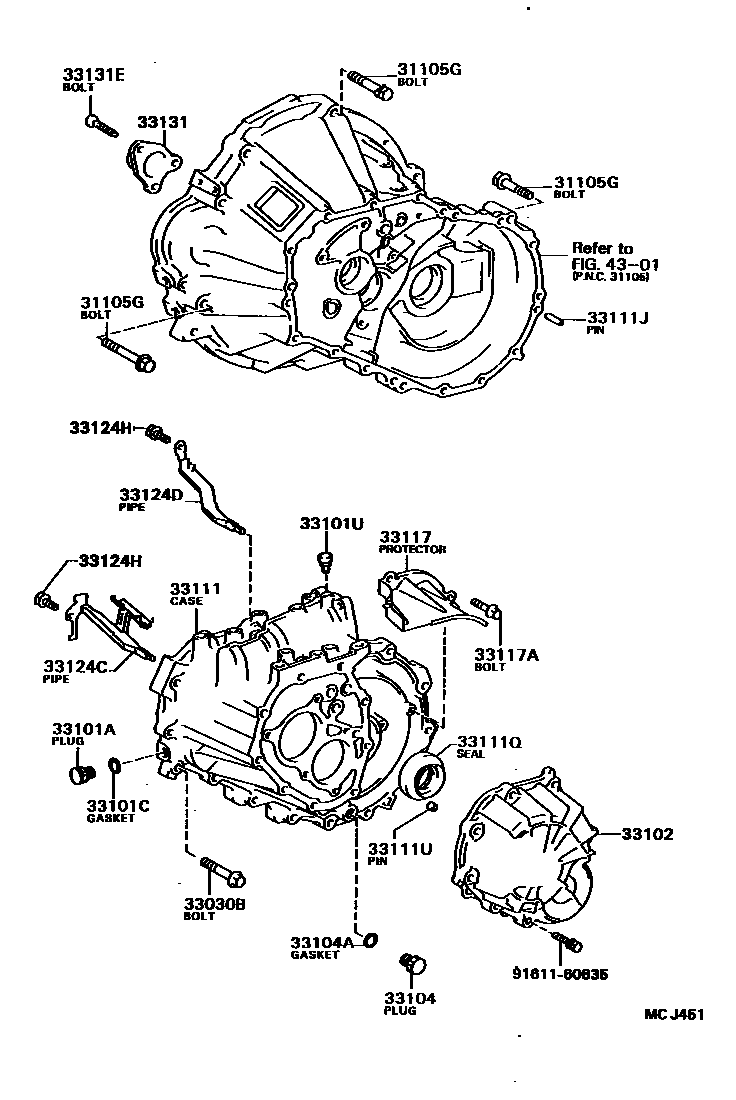

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1C52 0002 1S53 0003 1E150F

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-08040iST18#..MTM198909-199309

*8-1.25PX18-15

sub91641-H0820

main90105-10077iAT180,ST18#..MTM198909-199309

*10-1.25PX43-26

main90119-12042iAT180..MTM198909-199309

*12-1.25PX75-30

main90119-12168iAT180..MTM198909-199309

*12-1.25PX55-30

main91611-61025iAT180..MTM198909-199309

*10-1.25PX25-25

sub91612-61025

main91651-41022iST184..MTM198909-199309

*10-1.25PX22-22

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08042iST184..MTM198909-199309

*8-1.25PX45-27.5

sub90105-08430

main90105-08064iAT180..MTM198909-199308

*8-1.25PX51-28

sub90105-08353

main90105-08086iAT180..MTM198909-199308

*8-1.25PX45-27.5

main90105-08126iST185198910-199309

*8-1.25PX45-27.5

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18002iST184..MTM198909-199003

main90341-18006iAT180..MTM198909-199308

main90341-18033iST185198910-199309

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iAT180,ST18#..MTM198909-199309

33101UPLUG, BREATHER(FOR MANUAL TRANSMISSION)

main90930-03080iAT180,ST184..MTM198909-199203

main90930-03111iST185198910-199309

sub90930-03148

main90930-03133iAT180,ST184..MTM199106-199309

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-12020iAT180..MTM198909-199105

sub33102-12021

main33102-12021iAT180..MTM199105-199308

main33102-20040iST185198910-199106

sub33102-33010

main33102-32011iST184..MTM198909-199004

sub33102-32012

main33102-32012iST184..MTM199004-199205

main33102-33010iST185199106-199309

sub33102-33011

main33102-33020iST184..MTM199205-199309

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iAT180,ST18#..MTM198909-199309

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iAT180,ST18#..MTM198909-199309

33111CASE, MANUAL TRANSMISSION

main33101-20040iST185198910-199106

sub33101-33010

main33101-20050iST185199201-199309

sub33101-20051

sub90384-15002

main33101-33010iST185199106-199201

sub33101-20050

sub33261-12070

sub90364-15003

main33111-16040iAT180..MTM198909-199308

sub33111-16070

sub90109-12073

main33111-16041iAT180..MTM199107-199108

main33111-20140iST184..MTM198909-198910

sub33111-20141

main33111-20141iST184..MTM198910-199102

sub33111-33020

main33111-33020iST184..MTM199102-199205

sub33111-33030

sub33124-32020

sub33214-33020

sub33261-33010

sub90384-14005

sub90384-15002

main33111-33030iST184..MTM199205-199309

sub33111-33040

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054iAT180..MTM198909-199309

L=23,OD=8

33111QSEAL, OIL(FOR TRANSMISSION CASE)

main90311-34008iAT180..MTM198909-199108

sub90311-34017

main90311-34017iAT180..MTM199108-199308

sub90311-34028

main90311-50010iST185198910-199309

sub90311-50027

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001iAT180..MTM198909-199308

L=11,OD=11

33117PROTECTOR, MANUAL TRANSMISSION CASE

main33117-16010iAT180..MTM199103-199309

main33117-17010iAT180..MTM198909-199103

sub33117-16010

main33117-20020iST185198910-199309

main33117-32011iST184..MTM198909-199309

33117ABOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)

main90105-08040iAT180..MTM198909-199309

sub91641-H0820

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-12010iAT180..MTM198909-199308

main33124-20020iST185198910-199309

main33124-32011iST184..MTM198909-199004

main33124-32012iST184..MTM199004-199205

main33124-33010iST184..MTM199205-199309

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-12020iAT180..MTM198909-199308

main33124-20030iST185198910-199309

33124HBOLT(FOR OIL RECEIVER PIPE)

main90119-08648iST185198910-199309

sub90119-08830

main91611-60820iAT180..MTM198909-199308

sub91611-G0820

main91651-60618iST184..MTM198909-199309

33131RETAINER, BEARING, FRONT(MTM)

main33131-12071iAT180..MTM198909-199308

sub33131-12080

33131ESCREW(FOR BEARING RETAINER FRONT)

main90149-60028iAT180..MTM198909-199308

4301

9161160835

main91611-60835

21 parts on this diagram · 3 diagrams in section
