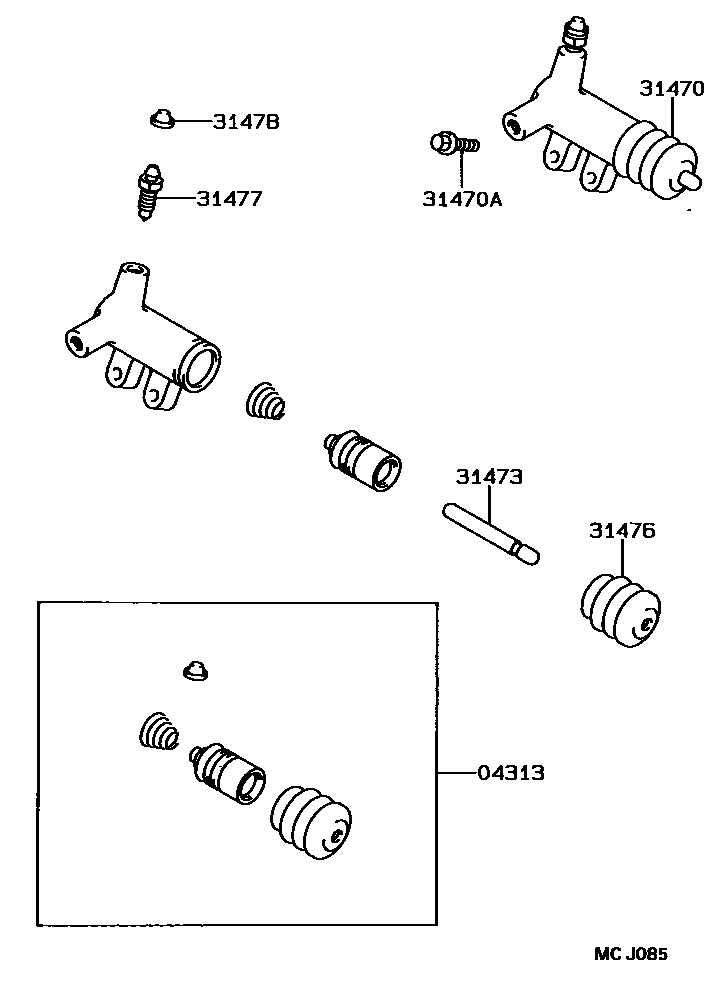

CLUTCH RELEASE CYLINDER

0001 1C52 0002 1S53,E150F

04313CYLINDER KIT, CLUTCH RELEASE

main04313-12030iAT180,ST184..MTM¥800198909-199309

main04313-17020iST185¥990198910-199309

main04313-22030iAT180..MTM¥860199301-199308

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-12092iAT180..MTM¥7,100198909-199301

sub31470-12093¥7,300

main31470-12093iAT180..MTM¥7,300199301-199308

main31470-20210iST185¥9,500198910-199309

main31470-32032iST184..MTM¥7,400198909-199309

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822iST185¥170198909-199309

*8-1.25PX22-17.1

main91611-60825iST184..MTM¥140198909-199309

*8-1.25PX25-25

sub91611-B0825¥160

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22010iST185¥720198910-199309

main31473-32010iST184..MTM¥450198909-199309

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iAT180,ST18#..MTM¥230198909-199309

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main31477-12010iST185¥350199108-199309

sub47547-20010¥200

main47547-20010iAT180,ST18#..MTM¥200198909-199309

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iAT180,ST18#..MTM¥160198909-199309

7 parts on this diagram · 2 diagrams in section
