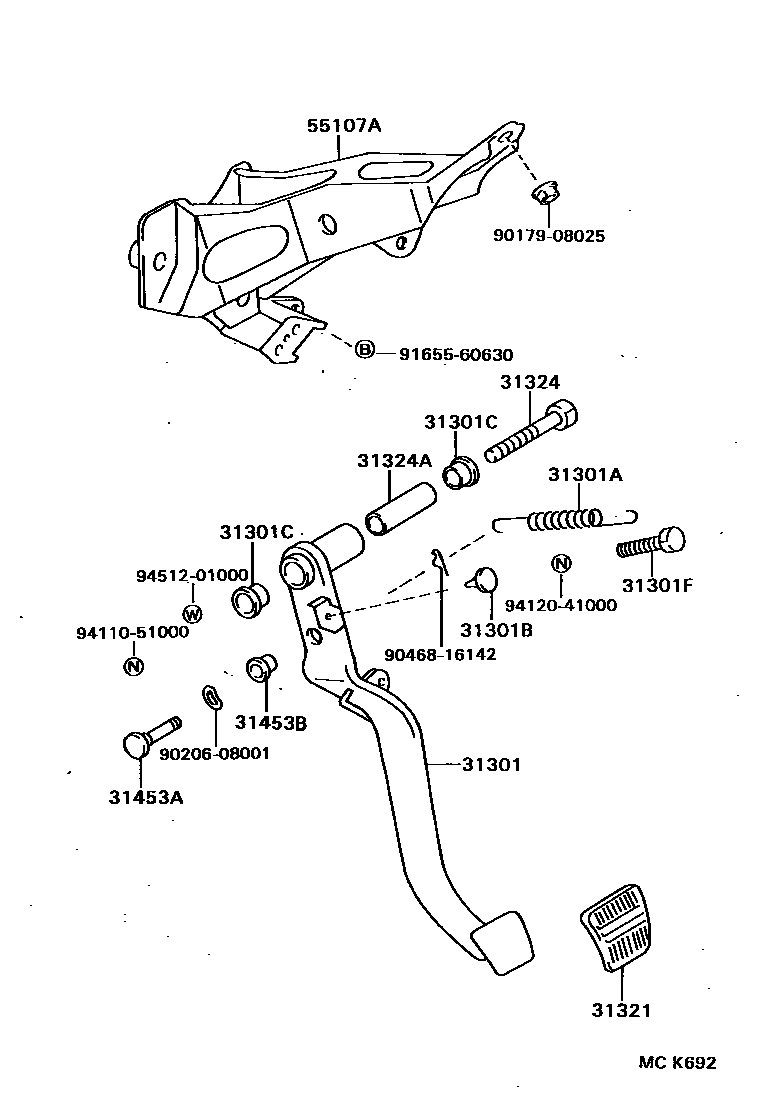

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-20380iST18#..MTM198909-199109

main31301-20390iAT180..MTM198909-199108

main31301-20440iST18#..(CP,LB)..MTM199108-199309

main31301-20450iAT180..MTM199108-199309

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14029iAT180..MTM198909-199309

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06032iAT180,ST18#..MTM198909-199109

sub90541-06036

main90541-06036iST184..CVT..MTM;AT180,ST185..MTM199108-199309

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iAT180,ST18#..MTM198909-199309

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iAT180,ST184..MTM198909-199309

31321PAD, CLUTCH PEDAL

main31321-14020iAT180,ST18#..MTM198909-199309

31324SHAFT, CLUTCH PEDAL

main90101-10015iAT180,ST18#..MTM198909-199309

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iAT180,ST18#..MTM198909-199309

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08143iAT180,ST18#..MTM198909-199309

L=30

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iAT180,ST18#..MTM198909-199309

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-20320iAT180..MTM198909-199309

main55107-20330iST18#..MTM198909-199309

9017908025

main90179-08025

9020608001

main90206-08001

9046816142

main90468-16142

9165560630

main91655-60630

9411051000

main94110-51000

9412041000

main94120-41000

9451201000

main94512-01000

18 parts on this diagram · 3 diagrams in section
