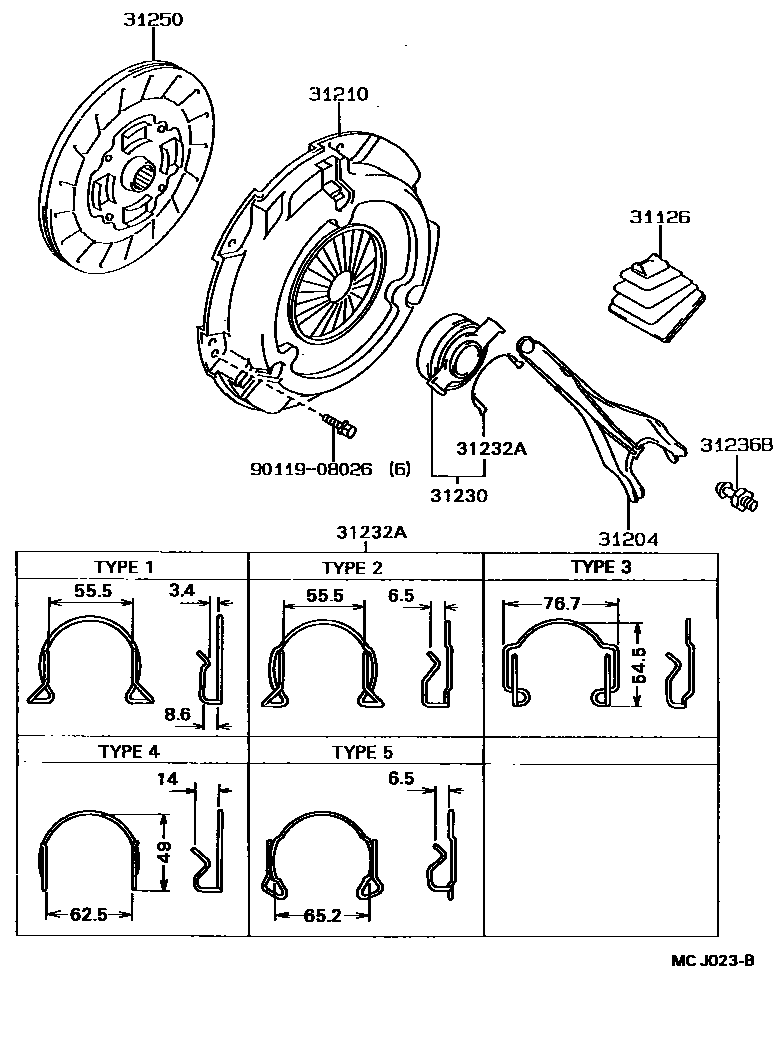

CLUTCH & RELEASE FORK

0001 1C52 0002 1S53 0003 1E150F

31126BOOT, CLUTCH RELEASE FORK

main31126-12051iAT180..MTM198909-199308

main31126-20080iST185198910-199309

main31126-32010iST184..MTM198909-199309

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-12050iAT180..MTM198909-199105

main31204-17010iAT180..MTM199105-199308

main31204-20100iST184..MTM199005-199309

main31204-20110iST185198910-199309

sub31204-20111

main31204-32010iST184..MTM198909-199005

31210COVER ASSY, CLUTCH

main31210-12140iAT180..MTM198909-198911

sub31210-12141

main31210-12141iAT180..MTM198911-199104

sub31210-12190

main31210-12190iAT180..MTM199104-199108

sub31210-12191

main31210-17030iST185199006-199108

sub31210-20351

main31210-20240iST184..MTM198909-199005

sub31210-32130

main31210-20250iST185198910-199006

sub31210-17030

main31210-20290iAT180..MTM199108-199309

sub31210-20291

main31210-20320iST185199108-199305

sub31210-20321

main31210-20321iST185199305-199309

sub31210-20351

main31210-32130iST184..MTM199005-199309

sub31210-33030

31230BEARING ASSY, CLUTCH RELEASE

main31230-12140iAT180..MTM198909-199105

sub31230-16061

main31230-12170iAT180..MTM199105-199308

sub31230-12171

main31230-20190iST185198910-199309

sub31230-20191

main31230-32020iST184..MTM198909-199005

sub31230-32100

main31230-32060iST184..MTM199005-199309

31232ACLIP, RELEASE BEARING HUB

main31232-12040iAT180..MTM198909-199105

TYPE 1

main31232-12050iAT180..MTM199108-199308

main31232-12050iAT180..MTM199105-199108

TYPE 3

main31232-12060iAT180..MTM199105-199108

TYPE 4

main31232-12060iAT180..MTM199108-199308

main31232-12070iAT180..MTM199108-199308

main31232-12070iAT180..MTM199105-199108

TYPE 5

main31232-16031iAT180..MTM198909-199105

TYPE 2

main31232-20020iST184..MTM199005-199309

TYPE 4

main31232-20030iST185198910-199207

sub31232-20031

main31232-20031iST185199207-199309

main31232-32010iST184..MTM198909-199005

TYPE 1

main31232-32020iST184..MTM198909-199005

TYPE 2

main31232-32030iST184..MTM198909-199008

TYPE 3

main31232-32050iST184..MTM199008-199309

TYPE 5

31236BSUPPORT, RELEASE FORK

main31236-12011iAT180..MTM198909-199105

main31236-12020iAT180..MTM199105-199308

main31236-20070iST185198910-199309

main31236-30030iST184..MTM198909-199005

main31236-32010iST184..MTM199005-199309

31250DISC ASSY, CLUTCH

main31250-12155iAT180..MTM198909-199006

sub31250-12156

main31250-12156iAT180..MTM199006-199104

sub31250-12310

main31250-12310iAT180..MTM199104-199309

sub31250-12380

main31250-17040iST184..MTM199112-199309

sub31250-20250

main31250-17050iST185199006-199205

sub31250-17051

main31250-17051iST185199205-199309

sub31250-17052

main31250-20170iST185198910-199006

sub31250-20171

main31250-20180iST184..MTM198909-199112

sub31250-17040

9011908026

main90119-08026

8 parts on this diagram · 3 diagrams in section
