STANDARD TOOL

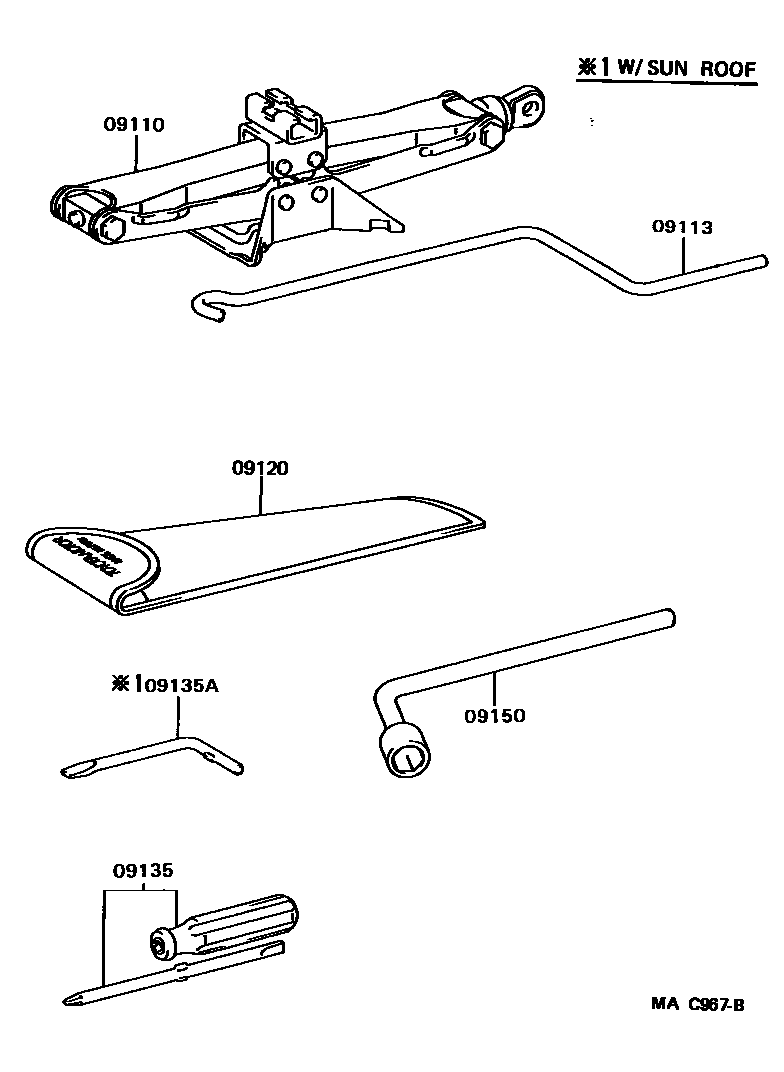

Parts diagram
09110JACK ASSY
main09111-12100i198909-199309
sub09111-20060
main09111-20070i198910-199211
sub09111-17020
main09111-24030i199211-199309
09113HANDLE, JACK
main09113-20030i198909-199309
sub09113-20050
09120BAG, TOOL
main09120-32010i198909-199309
09135DRIVER, SCREW
main99915-10700i198909-199309
09135ABIT, SCREW DRIVER
main09135-00012i198909-199309
09150WRENCH, HUB NUT BOX
main09150-40010i198909-199309

6 parts on this diagram · 1 diagram in section
