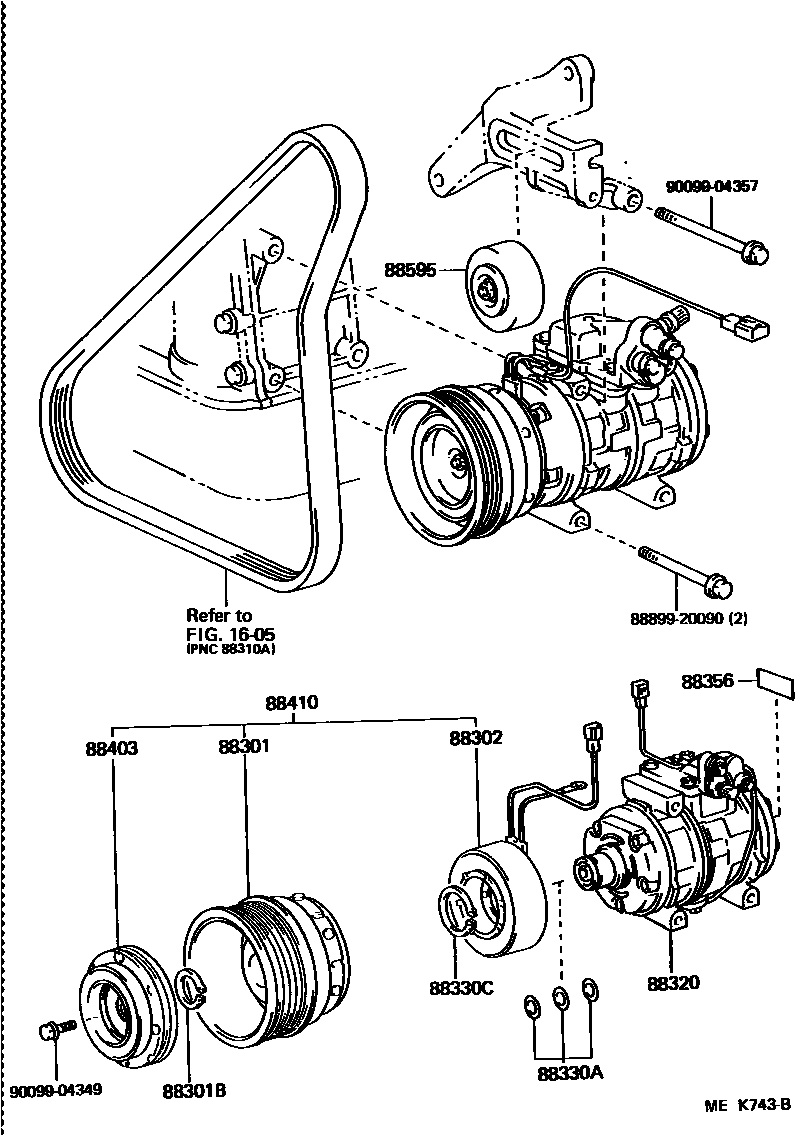

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

1605

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-20090iST162..ST;ST162..CVT198708-198908

sub88412-2B030

88301BRING, SNAP (FOR MAGNET CLUTCH)

main90099-07125iST162..ST;ST162..CVT198708-198908

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-20150iST162..ST;ST162..CVT198708-198908

sub88411-20200

88320COMPRESSOR ASSY, COOLER

main88320-20590iST162..ST;ST162..CVT198708-198908

sub88320-20591

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iST162..ST;ST162..CVT198708-198908

88330CRING, SNAP (FOR MAGNET CLUTCH)

main90099-07114iST162..ST;ST162..CVT198708-198908

88356LABEL, COMPRESSOR CAUTION

main88356-12010iST162..ST;ST162..CVT198708-198908

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16011iST162..ST;ST162..CVT198708-198908

88410CLUTCH ASSY, MAGNET

main88410-20200iST162..ST;ST162..CVT198708-198908

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-20120iST16#..GTS,TBO4W,TBOAT198708-198908

8889920090COVER, EVAPORATOR

main88899-20090

9009904349

main90099-04349

9009904357

main90099-04357

14 parts on this diagram · 2 diagrams in section
